Automated meat portioning and trimming solution

Enhance your production line efficiency with a robotic system that automates meat trimming and portioning, seamlessly integrating with existing processes to reduce waste and increase yield.

Automates Picking and Trimming of Residual Meat

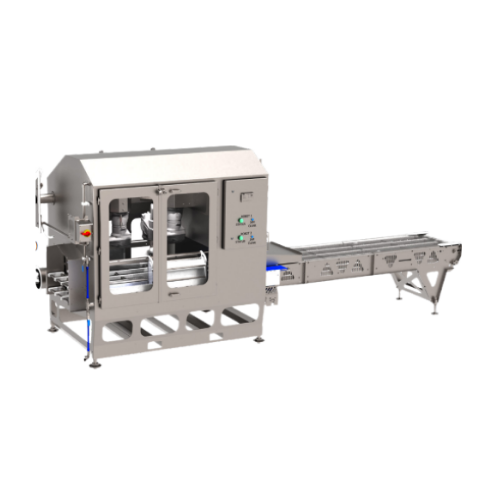

The DSI™ Dual Robotic Harvester from JBT is an advanced automated solution designed for high-volume meat processing applications. It utilizes SCARA robots and custom vacuum end-effectors to efficiently automate the precise picking and trimming of residual meat from bones after the portioning stage. This system is especially effective for producing chicken breast fillets, pork sausages, and other protein products, ensuring maximum yield and minimal waste. Capable of integrating seamlessly with existing production lines, it works in tandem with equipment like the DSI 800 Series Portioning Systems to form a complete protein handling setup. With high-speed continuous operation, it reduces labor demands and enhances throughput, processing up to 240 picks per minute. The harvester is constructed for durability and hygiene, suitable for wash-down environments, and offers flexible configurations to meet specific process needs. It operates with a PLC-controlled system that facilitates smooth integration with new or existing material handling networks, boosting system flexibility and productivity.

Benefits

  • Boosts yield and minimizes waste by efficiently recovering residual meat.
  • Lowers operational costs by reducing manual labor requirements.
  • Enhances process flexibility with seamless integration into existing production lines.
  • Decreases downtime with quick installation and commissioning.
  • Optimizes line productivity with high-speed, continuous automated operation.

General


Applications
Pet food,Seafood,Meat,Poultry
End products
Chicken breast fillets,Chicken nuggets,Tilapia fillets,Turkey drumsticks,Ground beef patties,Pork sausages,Meat patties,Chicken tenders,Pet food kibble,Fish sticks
Steps before
Portioning,Injection,Marination
Steps after
Sorting,Trimming,Conveying,Handling
Input ingredients
meat,bones,carcasses,raw meat portions
Output ingredients
harvested meat,trimmings,processed meat portions,meat for hamburgers,meat for sausage
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Automation
SCARA robots
Integration
Seamless with DSI Portioning Systems
Robotic Efficiency
Dual Stäubli TS2-60HE robots
System Deployment
Weekend installation
Throughput
240 items per minute
Air Compression System
Dedicated high-volume airflow
Hygiene Level
Wash-down environment appropriate
Software Integration
Q-LINK™ portioning software
Yield
Automated portioning and trimming
Labor Requirement
Reduced by four people per shift
Customization
Modular,easy-to-integrate systems

Operating Characteristics


Automation level
High/Robotic
Batch vs. continuous operation
Batch
Changeover time
Minimal
CIP/SIP
Wash-down Ready
Cleaning method
Automated

Material Compatibility


Cleanability
Wash-down environment

Physical Characteristics


Footprint Compatibility
Compact,Modular
Material Handling
Integrated Conveyor System
Control System
SCARA Robots with Vacuum End-Effectors

Custom Options


Robot Type
SCARA robots
Vacuum End-Effectors
Custom-designed
Integration with Software
Q-LINK™ portioning software
Integration with Portioning Systems
DSI 800 Series Portioning Systems
Hygienic Design
Wash-down ready
Customization for Product Demand
Modular and Easy-to-Integrate
Material Handling Network Compatibility
New or Existing Networks
Air Compression and Filtration System
Dedicated for High Volume Airflow
Deployment Time
Over a Weekend
