Aseptic treatment and filling for concentrates and purees

Optimize your processing line with a compact solution that combines sterilization and filling to ensure reliability and efficiency, tackling space constraints and enhancing operational flow.

Sterilizes and Fills Liquid and Solid Products

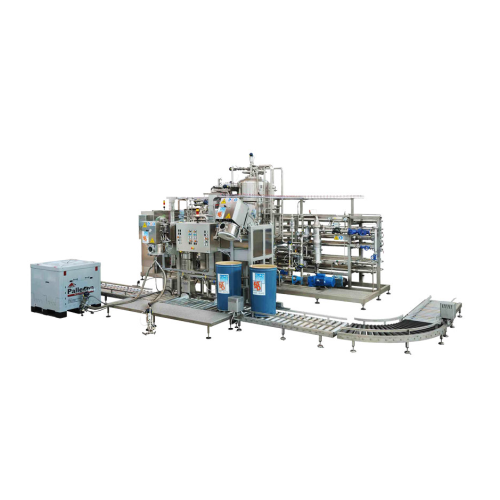

The Monoblock system from FBR ELPO is a compact solution designed for integrated sterilization and aseptic filling in food, beverage, and dairy production. This unit combines the sterilizer and filler on a single frame, solving space limitations while increasing functionality and reliability. It treats a range of products, including tomato concentrates, diced tomatoes, fruit puree, tomato puree, clear fruit juices, and dairy products, and it produces diverse end-products like canned tomato paste, diced canned tomatoes, apple sauce, tomato soup base, clear apple juice, and UHT milk. Capable of handling up to 10,000 kg/h, the Monoblock is engineered for continuous, high-speed operations.

The system features different sterilization options—scraped surface, tube in tube, or plate sterilizers—depending on product type. This flexibility ensures process efficiency and product integrity. It is designed for seamless integration into existing lines, using PLC controls for precision operation and remote monitoring. The Monoblock is available in materials that cater to specific applications, enhancing durability and compliance with industry standards. Its CIP-enabled design minimizes downtime and allows effortless cleaning. FBR ELPO offers customization options and engineering support to adapt the system to specific production requirements.

Benefits

  • Optimizes space utilization by combining sterilization and filling on a single frame.
  • Enhances production efficiency with continuous, high-speed operation.
  • Versatile processing options accommodate a wide variety of liquid and solid products.
  • Reduces operational costs through integrated design and streamlined functionality.
  • Facilitates easy cleaning and maintenance with CIP capability, minimizing downtime.

General


Applications
Tomato concentrates,Tomato puree,Clear fruit juices,Diced tomatoes,Dairy products,Fruit puree
End products
Diced canned tomatoes,Uht milk,Tomato soup base,Apple sauce,Canned tomato paste,Clear apple juice
Steps before
Product preparation,Blending,Concentration
Steps after
Aseptic filling,Packing,Storage
Input ingredients
concentrates,diced tomatoes,fruit puree,tomato puree,clear fruit juices,dairy products
Output ingredients
aseptically treated concentrates,aseptically treated diced tomatoes,aseptically treated fruit puree,aseptically treated tomato puree,aseptically treated clear fruit juices,aseptically treated dairy products
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Sterilizer Type
Scraped surface / Tube in tube / Plate
Operating Capacity
5,000 kg/h / 10,000 kg/h
System Configuration
Monoblock (combined sterilizer and aseptic filler)
Product Types Processed
Concentrates / Diced tomatoes / Fruit and tomato puree / Dairy products
Frame Type
Single frame
Buffer Tank Inclusion
Included

Operating Characteristics


Working mechanism
Monoblock with sterilizer and aseptic filler
Integrated steps
Sterilization,filling
Batch vs. continuous operation
Continuous
Automation level
Automatic
Changeover time
N/A
Cleaning method
CIP / Manual
Compact footprint
Yes
Product type handling
Concentrates,diced tomatoes,purees,clear fruit juices,dairy
Maximum capacity
Up to 10,000 kg/h

Physical Characteristics


Machine footprint
Compact overall dimensions
Frame type
Sterilizer and aseptic filler on a single frame
Capacity
5,000 kg/h to 10,000 kg/h
Tank presence
Product buffer tank included
Operating capacity
Up to 10,000 kg/h
Sterilizer type
Scraped surface,tube in tube,plate

Custom Options


Compact footprint
Yes
Control panel type
Customizable
Integration possibilities
Sterilizer and filler on single frame
Operating capacity
5,000 kg/h to 10,000 kg/h
