Aseptic filling and closing for flexible Iv bags

Streamline your production line with high-speed aseptic filling and sealing, ensuring IV bag purity and integrity through precise dosing and advanced sealing technologies.

Fills and Seals Aseptic IV Bags

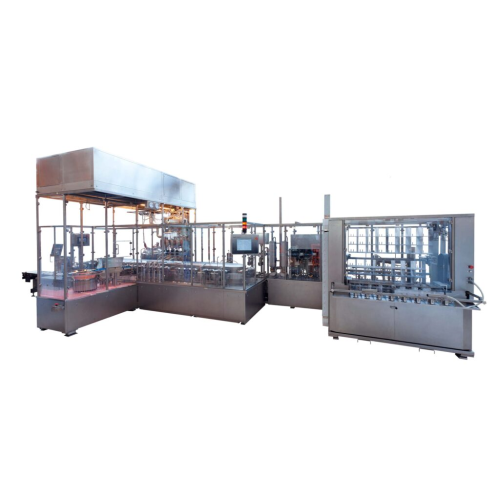

The Type 525/526 from BAUSCH Advanced Technology Group is designed for the aseptic filling and sealing of flexible IV bags in pharmaceutical and biopharmaceutical production lines. This machine excels in handling a wide range of bag sizes from 50 mL to 5,000 mL, processing up to 6,000 bags per hour, making it an ideal solution for high-speed operations. It utilizes a mass flow filling system with options for automatic CIP/SIP or peristaltic pumps, ensuring +/- 0.5% dosing accuracy. The equipment integrates smoothly into your production line with shuttle-based conveyance and bag tube-sealing via radio frequency, ultra-sonic, or thermo methods. Pre, during, and post nitrogen gassing maintain aseptic conditions, while in-line printing and camera inspection enhance operational efficiency. The laminar flow-friendly design, coupled with automatic loading, supports seamless integration and stringent aseptic requirements. This system is compliant with industry standards and offers engineering support for custom configurations, positioning it as a key component in producing critical intravenous liquid formulations.

Benefits

  • Maximizes production efficiency with a throughput of up to 6,000 bags per hour.
  • Ensures precision and minimizes waste with accurate dosing up to +/- 0.5%.
  • Maintains aseptic integrity through comprehensive nitrogen gassing and contamination-free handling.
  • Eases maintenance and reduces downtime with quick changeover capabilities and CIP/SIP systems.
  • Enhances operational accuracy and minimizes errors with integrated camera inspection and in-line printing.

General


Applications
Biopharmaceuticals,Aseptic liquid formulations,Iv bags,Pharmaceuticals
End products
Intravenous vitamins and minerals,Intravenous pain management formulations,Intravenous antibiotics,Intravenous glucose solutions,Intravenous electrolyte solutions,Total parenteral nutrition solutions,Intravenous chemotherapy drugs,Intravenous saline solutions
Steps before
Bag preparation,Aseptic environment setup,Nitrogen gassing preparation
Steps after
Sterilization,Sealing,In-line bag printing,Camera inspection,Packing
Input ingredients
flexible IV bags,aseptic filling materials,nitrogen for gassing
Output ingredients
filled IV bags,sealed IV bags,printed IV bags
Market info
Bausch Group is known for its precision engineering and manufacturing of custom industrial equipment, specializing in engineered-to-order solutions for various industries, prioritizing quality, innovation, and client-specific needs.

Technical Specifications


Filling speed
Up to 6,000 bags/hr
Bag size
50 mL to 5,000 mL
Filling accuracy
±0.5%
Automation
Automatic CIP/SIP or peristaltic pump
Sealing method
Radio frequency,ultra-sonic,or thermo sealing
Nitrogen gassing
Pre,during,and post filling
Bag conveying method
Shuttles
Printing options
In-line bag printing
Loading and inspection
Automatic loading and camera inspection
Changeover time
Quick

Operating Characteristics


Filling System
Mass flow / Peristaltic pump
Sealing Method
Radio frequency / Ultra-sonic / Thermo sealing
Cleaning In Place (CIP)/Sterilization In Place (SIP)
Automatic CIP/SIP
Automation Level
Automatic loading and inspection
Changeover Time
Quick changeover
Aseptic Operation
Pre,during,and post nitrogen gassing
Maximum Output
6,000 bags/hr
Bag Size Handling
50 mL - 5,000 mL
Contamination Prevention
Shuttle transport with pinched filling tube
In-Line Features
Bag printing and camera inspection
Laminar Flow Compatibility
Laminar flow friendly design

Material Compatibility


Biological compatibility
Yes
Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Adjustable based on system

Physical Characteristics


Machine size/type
Type 525/526
Bag size handling capability
50 mL to 5,000 mL
Maximum output
6,000 bags/hr
Visual contact to working stations
Excellent
System mobility
Conveyor transport via shuttles
Sealing type
Radio frequency,ultra-sonic,or thermo sealing
Accessibility
High
Changeover time
Quick

Custom Options


Control panel type
Touchscreen interface
Integration possibilities
SCADA compatibility
Filling system type
Mass flow / Peristaltic pump
Sealing method options
Radio frequency / Ultrasonic / Thermo
Bag size range
50 mL to 5,000 mL
Nitrogen gassing stages
Pre,during,post
Changeover time
Quick
Printing options
In-line bag printing
Camera inspection system
Available
