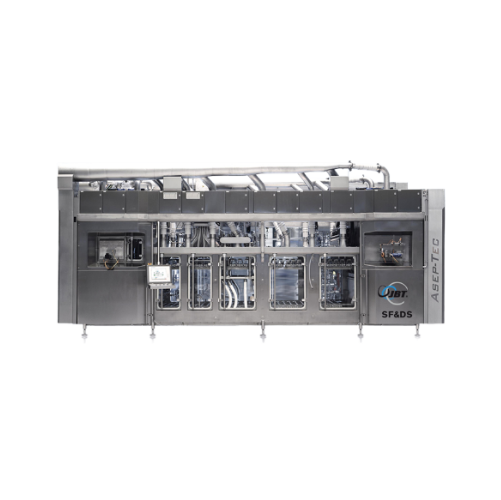

Aseptic filler for packaged dairy and beverages

Ensure product sterility and extend shelf life efficiently with high-speed aseptic filling, perfect for handling diverse liquids and solids, from juice to protein shakes, without compromising quality.

Fills, Decontaminates, and Seals Liquid Products

The AsepTec® linear aseptic filler from SF&DS is a versatile solution designed for dairy producers, beverage manufacturers, and food processing companies seeking reliable and efficient filling under sterile conditions. This equipment stands out with its ability to fill both high and low viscosity products, including liquids with particulates up to 9 mm, at high speeds ranging from 12,000 to 30,000 bottles per hour. Featuring a unique air management system and effective decontamination processes, it ensures precise filling and maintains product integrity. The system’s sophisticated user interface allows swift changeovers without breaking sterility, accommodating various container shapes and sizes in under 30 minutes. Built for continuous, automated operation, it integrates seamlessly with existing processing lines and consumes low utility resources, enhancing operational efficiency. Constructed with corrosion-resistant materials, the AsepTec® filler meets stringent industry standards, making it suitable for a wide array of applications including milk, juices, plant-based beverages, and ready meals. Additionally, it supports CIP for quick and effective cleaning, minimizing downtime and ensuring contamination-free operations.

Benefits

  • Enhances production efficiency with rapid changeovers, maintaining sterility for minimal downtime.
  • Supports versatile production needs, handling a wide range of viscosities and container types.
  • Reduces utility costs with optimized low-energy operation.
  • Ensures product safety through effective decontamination and precise filling controls.
  • Integrates seamlessly into existing lines, supporting continuous, high-speed operations.

General


Applications
Beverages,Ready meals,Plant-based beverages,Soups,Sauces,Dairy alternatives,Baby food,Oils,Plant-based protein,Dressings,Seasonings,Juices,Dairy
End products
Lasagna,Olive oil,Ketchup,Tomato soup,Baby formula,Milk,Protein shakes,Orange juice,Almond milk,Iced tea,Soy milk,Salsa,Vinaigrette
Steps before
Grinding,Mixing,Brine Preparation,Juicing,Extracting
Steps after
Sealing,Labeling,Packing,Sterilization
Input ingredients
HDPE bottles,PP bottles,PET bottles,high viscosity products,low viscosity products,products containing solids
Output ingredients
filled aseptic bottles,sealed bottles with foil seal,sealed bottles with aseptic screw cap
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Capacity
12,000 BPH,18,000 BPH,24,000 BPH,30,000 BPH
Filling method
Linear aseptic
Container type
HDPE,PP,PET
Changeover time
Less than 30 minutes
Particulate size
Up to 9 mm x 9 mm x 9 mm
Cap type
Foil seal or aseptic screw cap
Filling speed
High speed
Utility consumption
Low
Automation
Sophisticated user interface and control system
Decontamination efficiency
Effective

Operating Characteristics


Automation level
PLC / SCADA
Changeover time
Less than 30 minutes
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
Low utility consumption
Air incorporation control
Unique air management system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
HDPE / PP / PET

Physical Characteristics


Container compatibility
HDPE / PP / PET
Changeover time
Less than 30 minutes
Seal type
Foil seal / Aseptic screw cap
Flexible filling capability
High and low viscosity products
Particulate size handling
Up to 9 mm x 9 mm x 9 mm
Production capacity
12,000 BPH / 18,000 BPH / 24,000 BPH / 30,000 BPH
