8000bph fruit juice filling system

Optimize your beverage production line with a high-speed fruit juice filling system, designed to ensure precision and maintain quality while seamlessly integrating washing, filling, and capping processes in one efficient operation.

Washes, Fills, and Caps Beverages Efficiently

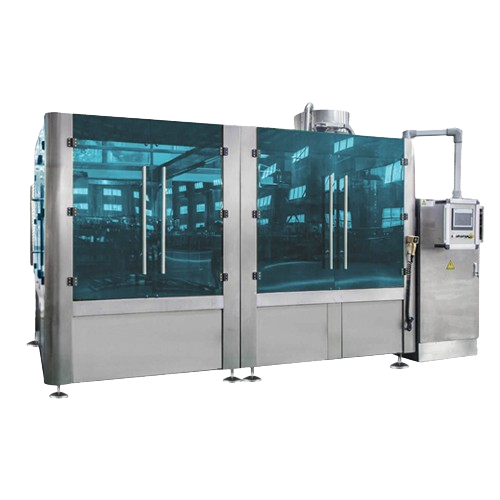

The 8000BPH Automatic Fruit Juice Filling Machine, Model RCGF24-24-8, from Alps Machinery, is designed to enhance efficiency in beverage production lines. This solution offers a seamless integration of washing, filling, and capping processes, critical for maintaining the integrity of fruit juices, teas, and flavored milks. Utilizing a hot filling type, it processes up to 10,000 bottles per hour with precision, adapting to PET bottles ranging from 250ml to 2000ml. Its robust construction features 304 stainless steel parts, ensuring durability and easy cleaning, while the PLC-controlled system facilitates automated operation. With additional features like high-precision filling nozzles and electromagnetic capping heads, the machine minimizes waste and reduces bottle collisions. The equipment is engineered for energy efficiency and operational stability, making it an ideal choice for the food and beverage industry.

Benefits

  • Enhances production efficiency by processing up to 10,000 bottles per hour.
  • Maintains product quality through precise hot filling, preserving flavors and nutrients.
  • Reduces water and energy usage with stainless steel design and high-precision components.
  • Minimizes operational disruptions with automated control, ensuring consistent output.
  • Supports diverse production needs with flexible bottle size accommodation for rapid changeovers.

General


Applications
Coffee,Fruit juice,Flavored milk,Tea drinks
End products
Green tea,Cappuccino,Chocolate flavored milk,Iced coffee,Apple juice,Black tea,Herbal tea,Orange juice,Grape juice,Cold brew coffee,Vanilla flavored milk,Strawberry flavored milk
Steps before
Water Treatment,Beverage Preparation
Steps after
Labeling,Packing
Input ingredients
PET bottles,aseptic water,juice,tea drinks,flavored milk,bottle caps
Output ingredients
filled PET bottles,sealed bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
8000–10000 BPH
Filling volume
250ml – 2L
Bottle diameter
Dia50 ~ Dia115mm
Bottle height
150 ~ 320mm
Filling type
Hot filling
Automation
PLC-controlled
Total power
5.8 kW
Overall dimensions
3.2X2.5m
Weight
7200 kg
Compressor air
0.3 ~ 0.7 Mpa
Washing medium
Aseptic water

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Inline Continuous
CIP/SIP
Aseptic water cleaning
Cleaning method
Automatic
Changeover time
Minimized due to automatic adjustment for bottle sizes

Material Compatibility


Cleanability
All 304/316 stainless steel
Corrosive resistance (e.g. acids)
Stainless steel components

Product type Characteristics


Filling purpose
Juice / Tea Drinks / Flavored Milk
Container type
PET bottles with screw cap

Physical Characteristics


Compact footprint
3.2X2.5m
Machine height
2.5m
Weight
7200kg
Bottle size
250ml ~ 2000ml
Bottle diameter
Dia50 ~ Dia115mm
Bottle height
150 ~ 320mm
Discharge method
Automatic

Custom Options


Control panel type
PLC-programmed
Filling valve technology
Advanced
Equipment body
304/316 Stainless Steel
