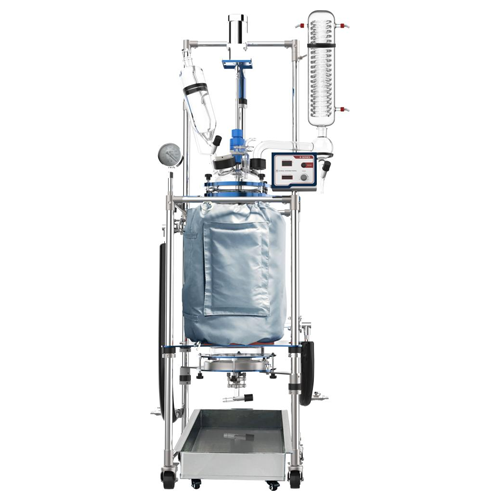

50l jacketed glass reactor for synthetic reactions

Achieve precise control over chemical reactions and material synthesis with this versatile 50L jacketed reactor, tailored for complex processes demanding exact temperature and vacuum conditions, leading to higher product purity and process efficiency.

Facilitates Controlled Chemical Reactions and Filtrations

The Ai 50L Single or Dual Jacketed Filter Reactor is designed for precision in complex chemical syntheses and filtration processes. Utilizing a dual-jacketed system to maintain precise temperature control, this reactor excels in multi-step reactions crucial for biopharmaceuticals, specialty chemicals, and nutraceuticals.

Applications range from synthesizing custom peptide chains and complex organic compounds to extracting high-value essential oils and herbal extracts. Equipped to handle batch and pilot operations, it supports a variety of liquid and slurry products.

Featuring adjustable stirring speeds and a constant pressure feeding funnel, it ensures uniform mixing and reaction control. Its built-in condenser efficiently recovers materials, enhancing process efficiency. The reactor is crafted from durable, hand-made high borosilicate glass and PTFE components, offering excellent heat and chemical resistance.

The modular design allows easy maintenance and cleaning, with detachable filter assemblies and PTFE components that resist solvent degradation. The system meets ETL and optional CE compliance standards, providing a reliable solution for pharmaceutical, chemical, and industrial use. Optional customizations include multi-layer stirring blades and different condenser configurations, supported by lifetime service and engineering support from Ai.

Benefits

  • Ensures precise temperature and vacuum control, enhancing reaction consistency and product quality.
  • Minimizes material losses with integrated filtration and recovery systems.
  • Supports versatile applications, reducing equipment redundancy across processes.
  • Enhances safety with chemical-resistant materials, reducing maintenance needs and prolonging lifespan.
  • Offers quick assembly and disassembly for ease of cleaning and maintenance, minimizing production downtime.

General


Applications
Fine chemicals,Specialty chemicals,Peptide synthesis,Nutraceuticals,Research laboratories,Plant extraction,Biopharmaceuticals,Chemical reactions,Essential oils,Chemical synthesis,Pharmaceuticals
End products
Paracetamol,Complex organic compounds,Laboratory test samples,Monoclonal antibodies,Custom peptide chains,Novel chemical compounds,Anethole,Omega-3 supplements,Herbal extracts,Insulin analogs,Lavender essential oil
Steps before
Material Preparation,Dissolution,Mixing
Steps after
Filtration,Condensation Recovery,Material Transfer,Cleaning
Input ingredients
synthetic materials,thermo fluid,chilling fluid,vacuum
Output ingredients
processed materials,filtered materials,condensed materials,peptide synthesis
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Reaction glass vessel capacity
13 gallons (50L)
Cooling/heating jacket capacity
4.2 gallons (16L)
Rotation speed
50 to 500 rpm
Maximum jacket pressure
4.4 psi or 0.03 MPa
Drain port ground clearance
12.5 inches
Glass vessel temperature range
-110°F to 400°F
Vacuum level
20 torr
Electrical requirements
110V 60Hz or 220V 50/60Hz,1-Phase
Agitator material
304 stainless steel with PTFE liner
Unit dimensions (WxDxH)
26 x 33 x 85"
Shipping weight
330 Lbs

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
CIP/SIP
CIP 121°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
PTFE components
Biological compatibility
Food grade borosilicate glass
Cleanability
Modular filter assembly,easily detachable
Corrosive resistance
High borosilicate glass 3.3

Product type Characteristics


Multi-step reactions
Yes
Synthetic reactions
Yes


ETL testing
UL and CSA standards
CE marking
Optional

Physical Characteristics


Control panel type
Digital
Machine footprint
26 x 33 x 85 inches
Tank shape
Cylindrical
Feed/Discharge method
Center downward drain port
Glass material
High borosilicate glass 3.3
Frame material
Stainless steel
Agitator type
Anchor / Pitched Blade
Cooling/heating jacket capacity
4.2 gallons (16L)

Custom Options


Adjustable Frame upgrade
Available with $550.00
Vacuum setup
3/8" hose barb,optional ULVAC UDP-6 pump
Stirrer/Impeller Type
Pitched Blade or Anchor
Chiller for the reactor
Optional Julabo A80t system
Chiller for top condenser
Optional Ai C30 chiller
Certification
ETL or CE
Front right vacuum port
Glass vacuum port with on/off valve
