40-ton pellet press for laboratory applications

Achieve precise sample preparation with a 40-ton capacity, ideal for pressing metal, ceramic, and polymer samples in a compact laboratory setting, ensuring high-integrity research outcomes.

Compacts Materials into Laboratory Sample Pellets

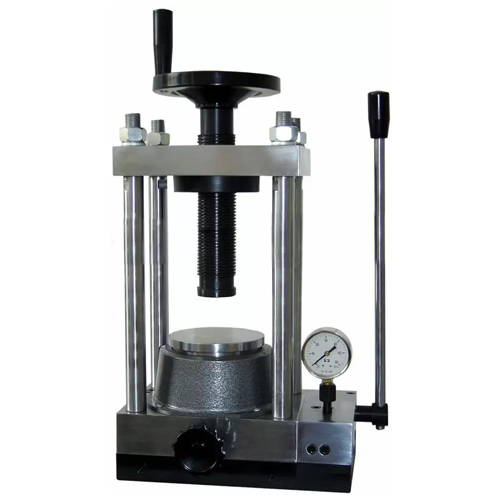

The MP40A from Across International is a manual hydraulic pellet press capable of exerting up to 40 metric tons of force, specifically engineered for research laboratories in materials science, chemistry, and metallurgy. This bench-top press efficiently compacts solid and powdered samples into precise, research-grade pellets or discs, vital for accurate analysis and experimentation. Operating manually, it integrates seamlessly into laboratory environments, easily fitting on standard laboratory workbenches. The press’s built-in hydraulic pump with auto-return function ensures consistent performance, while its compact design allows for operation within glove-boxes under various atmospheric conditions. Compatible with various die sizes, the MP40A provides flexibility for different sample preparation needs, and its robust construction supports continuous use in demanding R&D settings.

Benefits

  • Enhances sample preparation precision, ensuring consistency for analytical accuracy.
  • Minimizes space requirements with its compact, bench-top design.
  • Optimizes operation within inert or oxidizing atmospheres, expanding research application capabilities.
  • Facilitates varied sample sizes with multiple compatible die options.
  • Reduces user fatigue and increases efficiency with a built-in auto-return hydraulic pump.

General


Applications
Polymers,Chemistry,Laboratory samples,Ceramics,Compounds,Material science,Metals,Research laboratories,Minerals,Pharmaceuticals
End products
Laboratory sample pellets,Polymer pellets,Pharmaceutical tablets,Research-grade samples,Ceramic tiles,Metal alloy samples,Chemical compound discs,Mineral pellets
Steps before
Sample Preparation,Drying,Grinding,Powder Blending
Steps after
Sample Analysis,Testing,Characterization,Storage
Input ingredients
materials,compound samples,chemistry research materials
Output ingredients
pellets,pressed samples,solid compounds
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Maximum pressure
40 metric tons (88,185 Lb)
Maximum working space
6.1x4x6.7" (LxWxH)
Largest compatible die set
Across International 4" ID round die sets
Hydraulic cylinder travel distance
1 inch
Machine dimension
13x8x22" (LxWxH)
Machine weight
120 Lb
Shipping weight
150 Lb
Shipping dimension
21x15x24"

Operating Characteristics


Maximum Pressure
40 metric tons (88,185 Lb)
Hydraulic Pump
Built-in with auto return function
Operation Environment
Capable under oxidizing and inert gas atmosphere
Die Compatibility
4" ID round die sets
Safety
Requires protective goggles

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Atmosphere
Glove-box under oxidizing and inert gas

Physical Characteristics


Machine footprint
13x8x22" (LxWxH)
Shipping dimension
21x15x24"
Machine weight
120 Lb
Shipping weight
150 Lb
Hydraulic cylinder travel distance
1 inch
Largest compatible die set
Across International 4" ID round die sets
Maximum working space
6.1x4x6.7" (LxWxH)

Custom Options


Glove box capability
Yes,suitable for oxidizing and inert gas atmosphere
