X ray inspection for unstable cosmetic products
Ensure product integrity by detecting contaminants in unstable packaging with high-speed, top-down X-ray inspection.
Detects Contaminants in Cosmetic Packaging

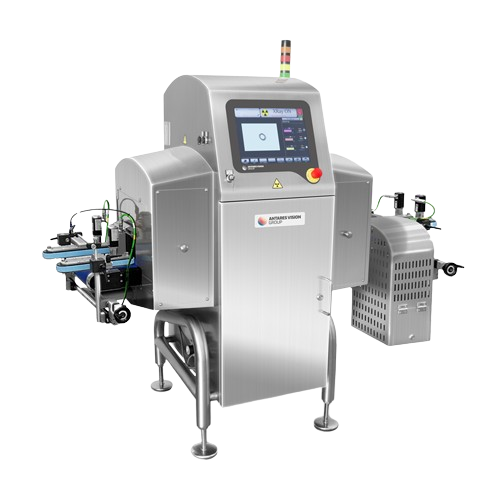

The X-Ray Inspection System with Side Belts from the Antares Vision Group is designed to tackle the challenges of inspecting unstable cosmetics packaging such as lipstick cases and skincare lotion tubes. Utilizing a top-down scanning approach, it minimizes the risk of high-density contaminants while ensuring seamless product handling and uninterrupted line performance. With conveyor belt widths ranging from 290 mm to 490 mm, this system integrates effortlessly into existing processing and packaging lines, featuring micrometric handwheel adjustments for easy size changeovers. Operating at speeds up to 70 m/min, it accommodates a high throughput environment. The embedded RISC FPGA data processing electronics and no-maintenance cooling module ensure efficient operation, while the system aligns with Industry 4.0 standards through its bidirectional communicator. CE, BRC, IFS, and HACCP compliance guarantees reliable quality assurance, making it a valuable addition for cosmetics manufacturers committed to brand integrity and regulatory adherence.
Benefits
- Ensures product stability and prevents production line stoppages by securely handling unstable items like cosmetics containers with side belt transport.
- Provides superior detection accuracy to prevent physical contaminants, enhancing product safety and reducing recall risks.
- Simplifies operation with an intuitive touch-screen interface, minimizing operator training time.
- Facilitates seamless integration and remote assistance through Industry 4.0 compliance, enhancing operational efficiency.
- Meets rigorous industry standards (CE, BRC, IFS, HACCP), guaranteeing consistent quality control and regulatory compliance.
- Applications
- Cosmetics
- End products
- Foundation bottles,Perfume bottles,Mascara containers,Pressed powder compacts,Lipstick packaging,Skincare lotion tubes
- Steps before
- Sorting,Aligning,Feeding
- Steps after
- Packaging,Sterilization,Labeling
- Input ingredients
- unstable products,high-density physical contaminants
- Output ingredients
- scanned products,contaminant-free products
- Market info
- Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.
- Control Panel
- Colour touch screen 15″
- Data Processing Electronics
- RISC Embedded FPGA
- Generator
- Up to 100W,electronic and integrated cooling module,maintenance not requested
- Self-learning System and Calibration
- Included
- Data and Images Collection Software
- Included through Ethernet and USB
- Kit for Remote Assistance
- Included
- Compliance Industry 4.0
- With Bidirectional Communicator
- Conformity
- CE,BRC,IFS,HACCP
- Linear Speed
- Up to 70 m/min
- Protection Degree
- IP65
- Product Model
- EL 300 / side belts (conveyors width
- Product Model
- EL 400 / side belts (conveyors width
- Product Model
- EL 500 / side belts (conveyors width
- X-ray scanning orientation
- Top-down
- Product stability management
- Side belts with adjustable height and width
- Automation level
- Incorporates self-learning system
- Changeover method
- Micrometric handwheels
- Remote support capability
- Included
- Industry 4.0 Compliance
- Bidirectional Communicator
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product stability
- Unstable
- Inspection method
- Top-down X-ray
- Conveyor Width
- 290 mm / 390 mm / 490 mm
- Control Panel Type
- Colour touch screen 15″
- Machine Footprint
- Not specified
- Height and Width Adjustability
- Micrometric handwheels
- Control panel type
- Colour touch screen 15″
- Interconnection possibilities
- Included through Ethernet and USB
- Remote assistance
- Kit for Remote Assistance
- Adjustability
- Height and width by micrometric handwheels
- Generator
- Latest generation,up to 100W,electronic and integrated cooling module
