X-ray and checkweigher combination for medium horizontal products

Streamline your packaging line with integrated checkweighing and X-ray inspection, ensuring precise weight control and contaminant-free products, all within a single compact unit designed for medium-sized horizontal product handling.

Inspects and Weighs Medium Horizontal Food Products

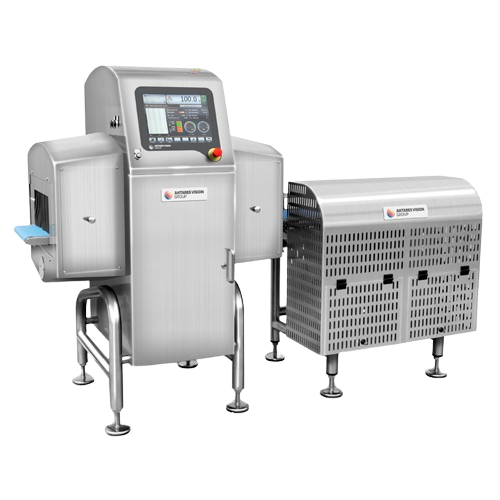

The Combi X-ray and Checkweigher from Antares Vision Group combines precision inspection and weighing capabilities in one compact unit, tailored for food industry applications. This integrated system employs a top-down X-ray scanning beam and a dynamic weighing unit for simultaneous contaminant detection and weight verification of unpackaged and packed medium-sized products such as granola bars, pasta packages, and boxed cereals. Operating at speeds up to 70 m/min with a throughput of up to 300 products per minute, it ensures high-production-line efficiency. The monoblock design minimizes footprint and costs compared to separate units, with a single 15” color touchscreen for intuitive operation. Embedded with a self-learning calibration system, it reduces maintenance and downtime, and is constructed with IP65 protection for robust operation. Compliance with CE, MID, BRC, IFS, HACCP, and GMP standards guarantees adherence to international safety and quality protocols.

Benefits

  • Streamlines production by integrating contaminant detection and weight verification in one process.
  • Increases line efficiency with high-speed operation of up to 300 products per minute.
  • Enhances product safety and quality assurance with dual compliance to CE and HACCP standards.
  • Minimizes operational footprint and costs by combining two systems into one compact unit.
  • Reduces maintenance and enhances reliability with self-learning calibration and IP65 protection.

General


Applications
Boxes,Flow-packs,Unpackaged products,Packed products,Food products,Bags
End products
Pasta packages,Ready-to-eat meal packets,Granola bars,Seasoning packets,Confectionery boxes,Bread loaves,Sachets of soup mix,Biscuit packets,Tea bags in boxes,Chocolate bars,Individually packed cheese slices,Yogurt containers,Boxed cereals,Nut snack pouches
Steps before
Packaging,Product Placement,Sorting
Steps after
Packing,Quality Control,Labeling
Input ingredients
medium horizontal products,flow-packs,boxes,bags,unpackaged products,packed products
Output ingredients
inspected products,weighed products,foreign body detection
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
15" color touchscreen
Data Processing Electronics
RISC Embedded FPGA
Generator Power
Up to 100W
Linear Speed
Up to 70 m/min
Production Rate
Up to 300 ppm
Weight Range
Up to 6000 g
Display Division
Starting from 0.2 g
Protection Degree
IP65
X-ray Inspection
Top-down beam
Sensor
RISC Embedded FPGA 400 mm with pixel 0.8 mm

Operating Characteristics


Working Mechanism
Integrated X-ray and checkweighing
Integrated Steps
Checkweighing and X-ray inspection in one system
Automation Level
Single operator interface
Bespoke Product Recipes
Unique recipes for each product type
X-ray Beam
Top-down scanning
Switchable Mode
Synchronous or disjoined operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Type
Medium Horizontal Products
Container type
Flow-packs / Boxes / Bags

Physical Characteristics


Compact footprint
Yes
Control panel type
15” color touchscreen

Custom Options


Control panel type
15" color touchscreen
Integration possibilities
Self-learning system and calibration
Ethernet and USB data collection
Compact footprint
Single system monoblock design
Protection Degree
IP65
Remote Assistance
Remote assistance kit included
Compliance Industry 4.0
Bidirectional Protocol
