Wrapping system with intermittent motion for high-speed packaging

Optimize packaging speed and efficiency for diverse product lines with our cutting-edge wrapping solution, designed to handle everything from delicate snack boxes to robust corrugated cardboard with precision and reliability. Ideal for facilities needing flexible operations without sacrificing processing time.

Packs, Wraps, and Stacks with Precision

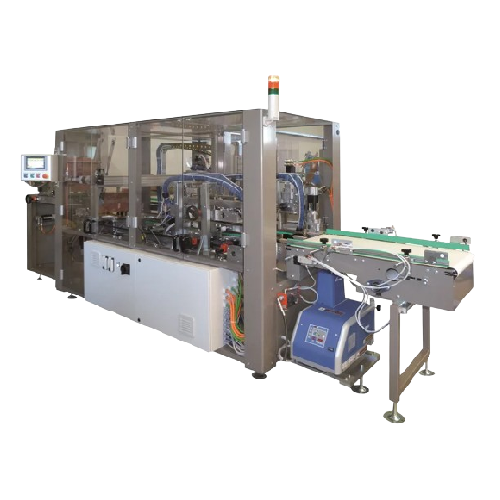

The Wrap Around 25 from OCME exemplifies cutting-edge engineered-to-order packaging solutions. Designed for the beverage, food, and personal care sectors, it efficiently wraps, packs, and stacks various products, including bottles, cartons, and soap bars. With its servo-driven, intermittent motion, it integrates smoothly into high-speed production lines, managing up to 25 packs per minute. This machine features a modular design with flexible infeed options to align with your specific production needs, ensuring seamless collation and compression. Boasting a motorized flap closing system, it guarantees optimal adhesive application, minimizing downtime and enhancing line productivity. The Wrap Around 25 also supports energy-efficient operations and is equipped with Siemens S7/1500 PLC for reliable automation, making it a comprehensive choice for diverse packaging requirements.

Benefits

  • Enhances production efficiency with high-speed intermittent wrapping up to 25 packs per minute.
  • Optimizes product handling with flexible infeed configurations, accommodating diverse product sizes and shapes.
  • Minimizes adhesive waste through precise hot melt application, reducing operational costs.
  • Integrates seamlessly into existing production lines with modular, customizable design.
  • Ensures durable performance with robust servo-driven systems and Siemens PLC automation.

General


Applications
Food,Beverages,Personal care,Tissue,Lubricants,Paper,Corrugated,Home
End products
Juice cartons,Frozen meal trays,Soap bar packs,Engine oil containers,Toilet paper rolls,Snack boxes,Tissue paper bundles,Bottled water packs,Shampoo bottles,Corrugated cardboard boxes,Canned soda packs,Grease tubs
Steps before
Product Sorting,Collation Preparation,Infeed Alignment
Steps after
Product Packing,Hot Melt Glue Sealing,Palletizing
Input ingredients
flat blank,non regular/shaped products,products up to 200/min,products for stacking
Output ingredients
wrapped packs,compressed hot melt glued packs,up to 25 packs/min
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Speed
Up to 25 strokes/minute
Output
Up to 25 packs/min
Power requirement
10 kW
Air consumption
200 Nl/min
Working pressure
6 bar
Magazine capacity
300 (standard) / up to 800 (optional)
Pneumatic
Camozzi
PLC
Siemens S7 / 1500
Display
Touch Screen Siemens KTP/700
Automation
Modular servo driven
Glue System
Hot melt Robatech Concept

Operating Characteristics


Speed
up to 25 strokes/minute
Motion type
Intermittent
Infeed configuration
In line/Parallel/90° to the flow
Automation level
PLC-controlled
Modular construction
Yes
Changeover flexibility
Different versions available
Stacking system
Via pick,place
Product channeling
Divertor for non-regular/shaped products

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Modular construction
Machine footprint
Configurable in inline or 90° configuration
Infeed configuration
In-line / 90-degree / Multiple lanes
Magazine capacity
300 (3mm) standard / up to 800 (3mm) optional
Motorized system
Extended motorized upper flap closing system
Blank magazine length
Up to 2.5 meters
Control panel type
Touch Screen Siemens KTP/700

Custom Options


Control panel type
Touch Screen Siemens KTP/700
Modular construction
Yes
Infeed options
Inline / 90° to the flow
Infeed lanes
One or more lanes
Blank magazine length
Up to 2.5 meters
Flap closing system
Motorized upper flap closing
Integration possibilities
PLC Siemens S7 / 1500
