Wine presses with closed tanks for red and rosé wines

Optimize your winemaking process with presses designed for gentle extraction and efficient maceration, reducing pressing time by up to 50% to enhance product quality and yield.

Presses and Macerates Grapes with Efficient Cleaning

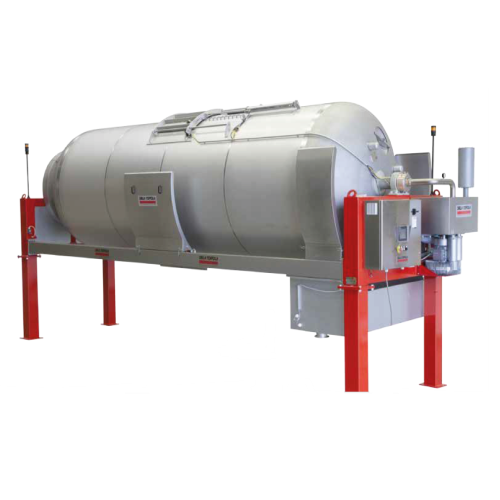

Della Toffola’s closed tank presses are engineered to enhance wine production through efficient pressing and maceration processes. These presses utilize a tubular membrane attached to a central drum, providing an expanded straining surface for the must via circumferential perforated grids. This design reduces pressing cycle times by up to 50% while applying low pressure for gentle grape handling, resulting in high yields and superior product quality. Perfect for red and rosé wines, they support both maceration and pressing within the same unit. With capacities ranging from 12 to 700 hl, these presses integrate seamlessly into automated production lines, featuring digital control panels and optional centralized system compatibility. The integrated moving ball washing system ensures top-tier hygiene standards, making maintenance straightforward and efficient. Available options include operation in a nitrogen atmosphere for additional protection.

Benefits

  • Enhances production efficiency by reducing total pressing time up to 50%.
  • Protects grape integrity with low-pressure, gentle handling, ensuring high-quality wine.
  • Offers versatility in processing both maceration and pressing in a single unit.
  • Simplifies cleaning and maintenance with an integrated, automated washing system.
  • Customizable for various production capacities and integration with centralized control systems.

General


Applications
Rosé wine,Beverages,Red wine,Wine
End products
Cabernet sauvignon,Syrah,Must for wine production,Sangiovese rosé,White zinfandel,Beverage base,Blush rosé,Pinot noir,Syrah rosé,Sparkling rosé,Grenache rosé,Merlot,Zinfandel
Steps before
Grape Harvesting,Grape Crushing,Grape Transport,Maceration
Steps after
Fermentation,Clarification,Aging,Bottling
Input ingredients
grape skins,grape mass,must
Output ingredients
red wine,rosé wine,high quality wine
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Pressing Time Reduction
Up to 50%
Working Pressure
Very low
Capacity
12–700 hl
Programmable Control System
Yes
Automation
Digital control panel and onboard computer
Cleaning System
Integrated with moving balls

Operating Characteristics


Working mechanism
Closed tank press with tubular membrane
Integrated steps
Pressing and maceration
Pressure application
Very low working pressures
Cleaning method
Automated integrated washing system
Automation level
Programmable control panel and onboard computer
CIP/SIP
Moving balls for cleaning
Batch vs. continuous operation
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Wine type adaptability
All kinds of wine

Physical Characteristics


Tank capacity
12 up to 700 hl
Press type
Closed tank
Drum type
Tubular membrane attached to central drum
Surface area
Increased straining surface
Control panel type
Digital control panel

Custom Options


Control panel type
Digital control panel
Automation level
Programmable automatic control system
Integration possibilities
Centralized computer-controlled system
Capacity range
12 to 700 hl
