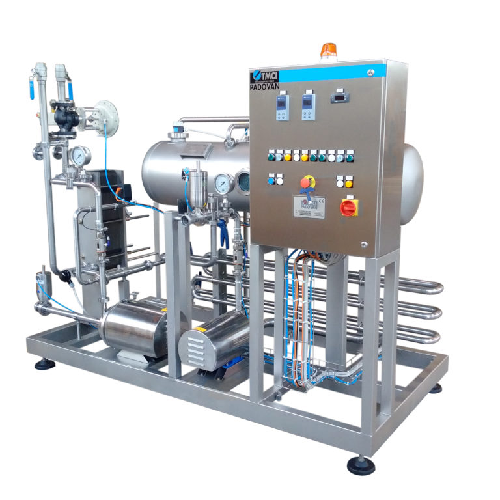

Wine carbonator with static mixer

Achieve precise CO2 saturation with a sintered stainless steel static mixer, mimicking a natural fermentation process for effervescent wine and beverage creations.

Carbonates and Blends Wine and Beverages

The Carbonators for Wine from TMCI Padovan offer precise and consistent carbonation for wineries and beverage manufacturers. Utilizing a specially designed saturation rock with fine porosity in sintered stainless steel, these carbonators ensure velvety CO2 saturation that closely simulates natural fermentation processes. Suitable for producing sparkling wines, Prosecco, and a variety of carbonated beverages, this equipment accommodates flow rates from 2,000 to 60,000 liters per hour, supporting both continuous and high-speed operations. The integrated static mixer enhances blending efficiency, seamlessly fitting into existing production lines. Constructed from durable materials for optimal corrosion resistance, the system emphasizes low maintenance needs and energy efficiency, making it an excellent choice for both artisanal and industrial-scale production environments.

Benefits

  • Ensures precise CO2 saturation, enhancing product quality and consistency.
  • Boosts production efficiency with high flow rate capabilities up to 60,000 l/h.
  • Seamlessly integrates into existing systems, minimizing downtime during installation.
  • Reduces operational costs through energy-efficient design and minimal maintenance requirements.
  • Supports diverse product ranges, from sparkling wines to flavored sparkling water, expanding market potential.

General


Applications
Beverages,Wine
End products
Flavored sparkling water,Wine coolers,Prosecco,Carbonated soft drinks,Sparkling wine
Steps before
Fermentation,Grapes pressing,Juice clarification
Steps after
Bottling,Aging,Packaging
Input ingredients
wine,carbon dioxide (CO2)
Output ingredients
carbonated wine,velvety CO2-saturated wine
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


Flowrate
2,000–60,000 l/h
Material
Sintered stainless steel
Porosity
Very fine porosity
Mixing method
Static mixer
CO2 Saturation
Velvety simulation of fermentation

Operating Characteristics


Working mechanism
Static mixer with saturation rock
Flow rate range
2,000 l/h to 60,000 l/h
Carbonation method
Velvety CO2 saturation
Inline vs batch operation
Inline

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Saturation rock material
Sintered stainless steel
Saturation rock porosity
Very fine
Static mixer
Yes
Flowrate range
2,000 l/h to 60,000 l/h

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
SCADA / PLC systems
Static mixer type
Sintered stainless steel
Saturation rock porosity
Very fine
