Whole muscle stuffer for slicing efficiency
Streamline your meat production with a hydraulically driven stuffer designed to fill and press whole muscles into casings, optimizing slicing precision and reducing material waste.

Automatically Fills and Portions Meat into Casings

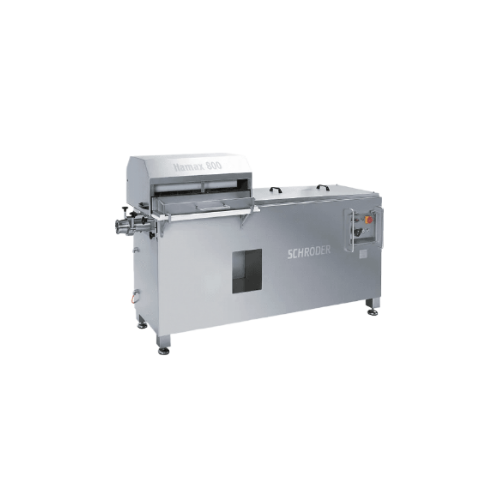

The HAMAX 800 from JBT Schröder revolutionizes meat stuffing with its hydraulically driven piston design, ideal for meat processors and food manufacturers seeking efficiency in filling and portioning tasks. This whole muscle stuffer excels in automatically processing raw and cooked cured meats, as well as restructured pork loins. It delivers a substantial production capacity of up to 1.2 tons per hour, significantly reducing both cut losses and casing consumption. Integrated seamlessly with double clipping machines, it enables swift transition from filling to clipping, ensuring precise portion control while requiring minimal operator intervention. The equipment’s variable speed capability ensures adaptability to diverse production needs while maintaining consistent performance, all within a robust design that supports continuous operation.
Benefits
- Enhances production efficiency with up to 1.2 tons per hour capacity.
- Minimizes material waste by reducing casing consumption by up to 30%.
- Streamlines operations with single-operator functionality.
- Cuts labor costs by integrating seamlessly with automated double clipping machines.
- Improves precision and portion control, reducing cut losses by up to 50%.
- Applications
- Pork loins,Raw and cooked cured meat,Restructured meat
- End products
- Steps before
- Meat preparation,Curing,Portioning
- Steps after
- Clipping,Calibrating,Slicing
- Input ingredients
- fresh meat parts,cured meat pieces,pork loins,artificial casings
- Output ingredients
- restructured meat,raw cured meat,cooked cured meat,sliced goods
- Market info
- JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.
- Production capacity
- 1.2 t/h
- Work interval duration
- 6 – 8 seconds
- Filling weight per cycle
- 2.0 kg
- Working cycle
- max. 10 cycles/minute
- Machine width with clipper
- 2620 mm
- Machine depth
- 1180 mm
- Machine height
- 1680 mm
- Weight
- 1000 kg
- Electrical connection
- 3Ph/PE
- 400/440V
- 50/60 Hz
- Casing consumption reduction
- up to 30%
- Cut losses reduction
- up to 50%
- Speed
- Infinitely variable
- Connection readiness
- Prepared for double-clipping machine
- Working mechanism
- Hydraulically driven piston
- Integrated steps
- Product entry,pressing,and output
- Batch vs. continuous operation
- Batch
- Automation level
- Automatic
- Changeover time
- 6 - 8 seconds
- Machine Width
- 2620 mm
- Machine Depth
- 1180 mm
- Machine Height
- 1680 mm
- Weight
- 1000 kg
- Filling Pipe Diameter
- Variable
- Filling Weight/Working Cycle
- 2.0 kg
- Integration Possibilities
- Double-clipping machine
- Filling Speed Control
- Infinitely variable speed
- Filling Pipe Diameter
- Different diameters available
- Control Panel
- Hydraulically driven system
- Product Flexibility
- Supports various meat types
