Water ozonisation system for enhanced disinfection
Ensure impeccable water quality with cutting-edge ozonisation that effectively removes contaminants, providing a reliable disinfection solution for high-speed operations.
Purifies and Disinfects Bottled Water

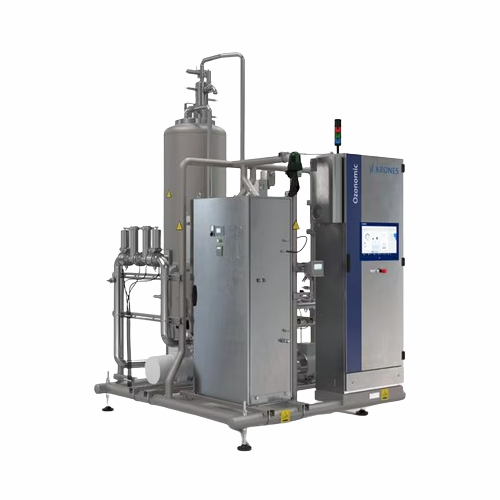

The Krones Ozonomic is an efficient ozonisation system designed for the disinfection and purification of still and bottled water. Utilizing a robust high-voltage electrical discharge process, it generates ozone from compressed air to effectively eliminate bacteria and viruses in liquid products. The integrated oxygen generator negates the need for separate oxygen supply, operating with up to 93% pure oxygen. This system is adept at handling diverse operational conditions, including high water temperatures and varying pH levels. Suitable for beverage manufacturers and water treatment facilities, it is commonly utilized in producing purified bottled still water and ozonised drinking water. With throughput options ranging from 15 to 60 m³/h, it is designed for continuous, high-speed operations and can seamlessly integrate with Krones’ Hydronomic series water treatment and Modulfill filling systems. The stainless steel ozone injection system ensures durable, efficient performance with reduced maintenance needs, all while maintaining the highest hygiene standards in sterilizing both the product and packaging components.
Benefits
- Enhances product safety and quality by eliminating bacteria and viruses effectively.
- Lowers operational costs by using compressed air instead of a separate oxygen supply.
- Ensures quick integration with existing systems, streamlining startup and reducing setup time.
- Maintains high ozone generation efficiency across varying water conditions.
- Minimizes contamination risk through in-process sterilization of packaging materials.
- Applications
- Still water,Liquid food products,Beverage disinfection,Bottled water
- End products
- Ozonised drinking water,Purified bottled still water,Disinfected mineral water,Safe liquid nutrition supplements,Sterilised bottled beverages
- Steps before
- Water purification,Compressed air supply setup,Nitrogen removal
- Steps after
- Hygienic filling process,Container sterilization,Cap sterilization,Bottling,Packing
- Input ingredients
- oxygen,compressed air,drinking water
- Output ingredients
- ozone,ozonised water
- Market info
- Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.
- Ozone concentration
- 0.4 mg/l
- Output capacity
- 15,30,45,60 m³/h
- Compressor pressure
- 2–3 bar
- Oxygen purity
- Up to 93%
- Working Mechanism
- Still Electrical Discharging
- Ozone Generation
- Up to 93% pure oxygen
- Ozonisation Output
- 15,30,45 and 60 m³/h
- Cooling Requirement
- Integrated Cooling Unit
- Automation Level
- Integrated system with Krones filling systems
- Disinfection Efficiency
- 0.4 mg/l water dosage
- Biological compatibility
- Water
- Corrosive resistance (e.g. acids)
- Yes (Stainless steel)
- Cleanability
- High due to ozone's disinfecting properties
- Abrasion resistance
- Suitable for handling due to stainless steel construction
- Density/particle size
- Compatible with liquid state
- Container sterilization
- Container and cap parts sterilization
- Stainless Steel Injection System
- Venturi
- Control panel type
- HMI/Touchscreen
