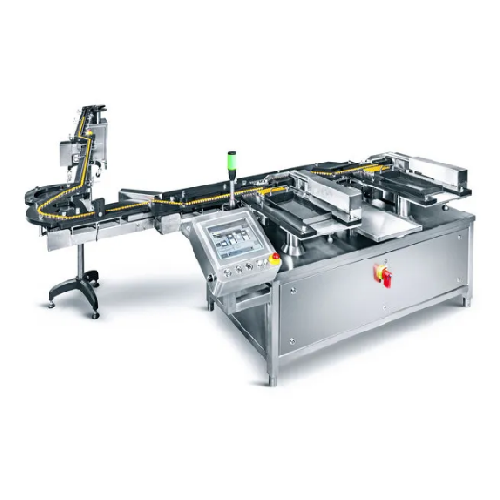

Vial tray loader for pharmaceutical processing

Streamline your vial handling process with a high-speed, flexible tray loader that accommodates various vial sizes without change parts, ensuring efficient loading, nesting, and inspection to reduce breakage and rejection rates.

Loads and Nests Vials into Trays

The Hull i-Dositecno TL-100 and TL-200 Tray Loaders offer pharmaceutical manufacturers and life sciences companies a customizable solution for efficient vial handling. These loaders streamline vial processing by automatically loading and nesting glass or plastic vials into trays for aseptic or non-aseptic conditions. With a throughput of up to 200 vials per minute for the TL-100 and up to 400 vials per minute for the TL-200, they boost productivity while reducing the need for manual intervention. Both models feature a menu-driven, PLC-assisted changeover, eliminating the need for change parts and ensuring flexibility in handling various vial sizes. The system includes optional camera inspection to verify tray loading accuracy and reject vials with inconsistent cap colors or formats—minimizing rejection rates from scratches or breakages. Designed to meet the rigorous standards of pharmaceutical environments, these tray loaders are crucial in processing and packaging operations, ensuring consistent, high-speed automated performance while maintaining product integrity.

Benefits

  • Enhances efficiency by accommodating multiple vial sizes without change parts.
  • Minimizes product rejection with precise automatic nesting and inspection.
  • Increases production speed with high-throughput capabilities up to 400 vpm.
  • Reduces operational costs through streamlined, reliable vial handling.
  • Ensures workflow safety and consistency in both aseptic and non-aseptic environments.

General


Applications
Glass vials,Plastic vials,Biopharmaceuticals,Life sciences,Aseptic processing,Non-aseptic processing,Pharmaceuticals
End products
Monoclonal antibody vials,Therapeutic proteins,Lyophilized pharmaceuticals,Genetic therapy solutions,Injectable medications,Diagnostic test kits,Sterile liquid drugs,Iv drug vials,Biologics packaging,Vaccine vials
Steps before
Aseptic Filling,Vial Washing
Steps after
Sterilization,Tray Packing,Inspection,Storage
Input ingredients
vials,bottles,glass containers,plastic containers,2-500 mL containers
Output ingredients
loaded trays,metal trays,plastic trays,cardboard trays,nested vials
Market info

Technical Specifications


Automation
PLC-assisted
Loading Speed
100–200 vpm (TL-100),70–400 vpm (TL-200)
Vial Range
2–500 mL
Tray Size
Varies based on model
Changeover
No change parts required
Container Material
Glass/Plastic
Tray Loading
Automatic nesting
Inspection
Camera inspection (optional)
Output Capacity
Up to 200 vpm (TL-100),up to 400 vpm (TL-200)

Operating Characteristics


Vial loading rate
Up to 400 vpm
Automation level
PLC-assisted
Changeover capability
Menu-driven
Multi-size handling
No change parts needed
Tray loading pattern
Nested

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass / Plastic

Physical Characteristics


Footprint
Customizable
Vial capacity (TL-100)
Up to 200 vials per minute
Vial capacity (TL-200)
Up to 400 vials per minute
Vial/bottle size range
2-500 mL
Material type
Glass/Plastic
Tray type
Metal/Plastic/Cardboard
Pusher adjustment
Adjustable

Custom Options


Vial diameter compatibility
2-500 mL
Tray Loader Type
Single / Dual
Operating Speed
200 vpm / 400 vpm
Tray material compatibility
Metal / Plastic / Cardboard
Changeover method
Menu-driven,PLC-assisted
