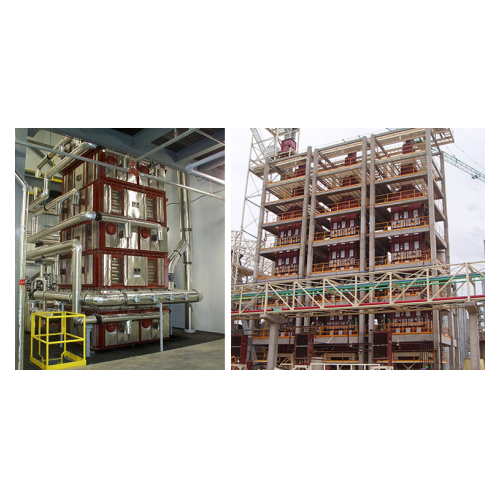

Vertical seed conditioning system for oil extraction

Ensure optimal oil yield and quality from oilseeds by employing a vertical seed conditioning system designed for precise temperature and moisture control before extraction.

Heats and Dries Oilseeds Efficiently

The Crown Iron Works Vertical Seed Conditioner (VSC) is engineered for precise seed preparation in oilseed processing and biofuel production. This equipment is pivotal in heating and drying oilseeds, utilizing a first-in, first-out process with low pressure or flash steam. Its stackable design accommodates up to 12 heating sections, allowing for scalability from 25 to 3,500 MTPD. The VSC enhances moisture removal with a patented air system, ensuring optimal seed conditioning for end-products like soybean oil, hemp seed oil, and protein isolates. Constructed with oval 304L stainless steel tubes, it guarantees effective heat transfer and durability. The unit is easily integrated into existing production lines, offering adjustable residence times for flexibility. Optional heat sources and low power requirements (1-1/2 hp maximum) contribute to energy efficiency. Maintenance is streamlined with access to all tubes via removable covers, and Crown’s engineering support ensures tailored configurations for diverse processing needs.

Benefits

  • Enhances processing efficiency with precise temperature and moisture control.
  • Scalable design maximizes flexibility for production expansion.
  • Low energy consumption reduces operational costs.
  • Flexible integration supports diverse end-product requirements.
  • Minimal maintenance requirements increase operational uptime.

General


Applications
Specialty chemicals,Oleochemicals,Nutraceuticals,Plant-based proteins,Oilseed processing,Biofuel,Renewable diesel,Hemp cbd oil extraction,Pharmaceuticals
End products
Sunflower oil,Protein powders,Pharmaceutical intermediates,Soybean oil,Cbd oil,Protein isolates,Fatty acids,Omega-3 supplements,Herbal extracts,Biodiesel,Glycerin,Natural waxes,Hemp seed oil,Canola oil,Corn oil
Steps before
Grinding,Cracking,Purification
Steps after
Oil Extraction,Desolventization,Drying
Input ingredients
oilseeds,canola seeds,soybeans,corn germ,sunflower seeds
Output ingredients
conditioned seeds,heated seeds,dried seeds
Market info
Crown Iron Works is renowned for its expertise in designing and manufacturing engineered-to-order equipment for oilseed processing and edible oil extraction, with a strong reputation for innovation, reliability, and delivering customized solutions worldwide.

Technical Specifications


Residence Time
20–40 minutes
Capacity
25–3,500 MTPD
Heating Sections
Up to 12 sections
Drying Efficiency
Up to 3% drying
Discharge Power
1-1/2 hp (1.2 kW) maximum
Pressure
1 BAR or 15 PSI
Heat Transfer Tube Material
Oval 304L SS tubes

Operating Characteristics


Working Mechanism
Vertical Conditioning with Air and Heat
Integrated Steps
Heating,Drying,Moisture Removal
Batch vs. Continuous Operation
Continuous
Automation Level
Manual Control of Residence Time
Residence Time Control
Adjustable Heating Sections
Moisture Removal
Patented Air System

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Low power volumetric rotor discharge
Heating sections
Up to 12 stackable sections
Material
Oval 304L SS tubes
Module expandability
Easily expandable by adding sections
Inspection feature
Side inspection covers
Volume
5 models available (25–3,500 MTPD)

Custom Options


Heating sections
Up to 12 heating sections
Residence time control
Adjustable through seed rate
Optional heat sources
Hot water or flash steam
Discharge method
Low power volumetric rotor
Heating tube material
Oval 304L SS tubes
