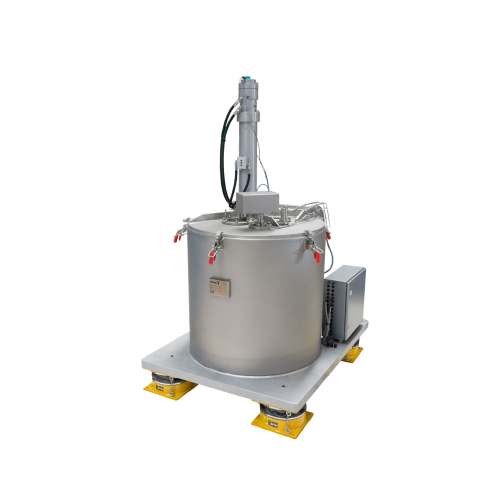

Vertical peeler centrifuge for gypsum dewatering

Effectively dewater gypsum with minimum residual moisture and optimized washing, enhancing production efficiency in flue gas desulphurization processes.

Dewaters and Washes Gypsum and Chemical Products

The Vertical Peeler Centrifuge models V 800 BG, V 1000 BG, V 1250 BG, and V 1600 BG from HEINKEL are engineered for precision dewatering and washing in power and chemical industries, enhancing productivity in gypsum and specialty chemical processing. Their design accommodates small to medium throughputs and features an optimized washing process that significantly reduces chloride concentrations, crucial for flue gas desulphurization gypsum (FGD). Experience versatile handling of solid, slurry, and cake forms in both batch and continuous operations, powered by high-speed centrifugal force. The robust construction ensures durability with options for stainless steel or rubber coatings to resist corrosion. These centrifuges integrate seamlessly into existing production lines, equipped with PLC-controlled operations for enhanced automation. Maintenance is straightforward with the inclusion of efficient cleaning solutions and support for customization to meet specific throughput and operational requirements.

Benefits

  • Ensures high product purity with optimized washing and minimal residual moisture.
  • Adapts to changing processing needs with versatile throughput management.
  • Enhances corrosion resistance with material options in stainless steel or rubber coating.
  • Integrates easily into production lines with automated PLC controls.
  • Minimizes environmental impact by significantly reducing chloride concentrations.

General


Applications
Fine chemicals,Chemical products,Flue gas desulphurization (fgd) products,Recycled metals,Plaster
End products
Fgd gypsum board,Specialty chemicals,Gypsum plaster,Metal powders,Calcium sulfate dihydrate
Steps before
Purification,Pre-processing,Material Feeding,Initial Mixing,Preparation of Flue Gas
Steps after
Dewatering,Drying,Packing,Chloride Reduction Treatment,Quality Control,Product Conditioning
Input ingredients
plaster,flue gas desulphurisation,FGD
Output ingredients
dewatered gypsum,plaster,reduced chloride concentrations
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket diameter
800–1,600 mm
Basket depth
630–1,000 mm
Filter area
1.58–6.28 m²
Nominal volume
160–1,250 L
Max. filling
200–1,560 kg
Max. speed
800–1,500 1/min
Centrifugal force
573–805 x g
Material
Stainless steel / Rubber coated
Residual moisture
Minimum
Reduction of chloride concentrations
Maximum

Operating Characteristics


Basket Diameter
800 mm to 1600 mm
Basket Depth
630 mm to 1250 mm
Batch vs. Continuous Operation
Batch
Residual Moisture Control
Minimum
Chloride Concentration Reduction
Optimized Washing Process
Material Options
Stainless Steel / Rubber Coated
High Availability
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Chloride concentration reduction
Optimized washing process
Surface coating
Stainless steel / Rubber coated

Physical Characteristics


Machine footprint
1,800 mm (L) x 1,300 mm (W) x 2,470 mm (H) - V 800 BG
Machine footprint
2,050 mm (L) x 1,500 mm (W) x 2,510 mm (H) - V 1000 BG
Machine footprint
2,300 mm (L) x 1,750 mm (W) x 2,820 mm (H) - V 1250 BG
Machine footprint
2,900 mm (L) x 2,300 mm (W) x 2,180 mm (H) - V 1600 BG
Basket diameter
800 mm - V 800 BG
Basket diameter
1,000 mm - V 1000 BG
Basket diameter
1,250 mm - V 1250 BG
Basket diameter
1,600 mm - V 1600 BG
Discharge method
Vertical Peeler

Custom Options


Coating Material
Stainless steel / Rubber coated
Basket Size Options
800 mm / 1000 mm / 1250 mm / 1600 mm
Throughput Capacity Options
Small to medium
