Vertical form-fill-seal for pillow bag packaging

Looking to enhance the speed and reliability of your packaging process? This high-speed vertical form-fill-seal machine is designed to efficiently package delicate and brittle snacks into neatly sealed pillow bags, minimizing breakage and ensuring consistent quality.

Packs and Seals High-Speed Pillow Bags

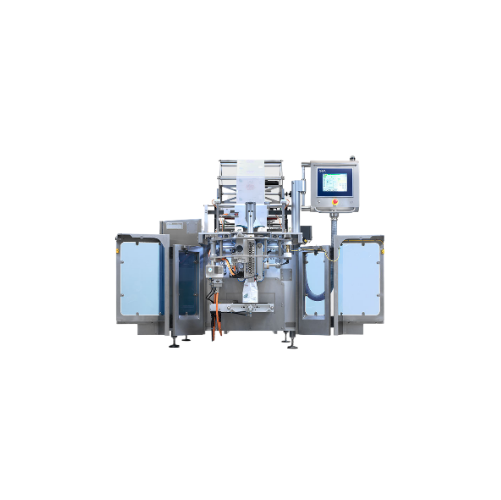

The GEA SmartPacker CX250-S is an advanced vertical form fill seal machine designed for intricate packaging demands in the food and snack industries. It features a low-drop design that minimizes product damage, making it ideal for packing brittle candies, chips, and nuts into pillow bags. Operating at speeds of up to 250 bags per minute, it enables high-efficiency production with its innovative product-in-seal detection and easy-to-use labeling system. This machine’s robust frame and double-hinged doors ensure easy access for maintenance, reducing downtime. With options for high seal force and gas-tight sealing, it accommodates a wide range of film materials. The CX250-S offers quick setup and changeovers, with reduced maintenance costs due to its durable forming set reinforced with fiberglass. Configurable for various bag enhancements, it integrates seamlessly into automated lines and provides real-time performance monitoring with GEA’s CostFox software.

Benefits

  • Enhances product integrity by minimizing damage to brittle items during high-speed packing.
  • Optimizes production efficiency with quick setup and rapid film changeovers.
  • Decreases operational interruptions with advanced product-in-seal detection that prevents contamination.
  • Reduces maintenance costs through durable components and easy-access design.
  • Improves packaging flexibility with customizable bag options and precise labeling integration.

General


Applications
Dried fruit,Snacks,Confectionery,Savory snacks,Nuts
End products
Gummy bears,Hard candies,Tortilla chips,Pretzels,Potato chips,Prunes,Raisins,Cashews,Almonds
Steps before
Weighing,Filling,Sorting
Steps after
Sealing,Labelling,Quality Control
Input ingredients
confectionery,savory snacks,dried fruit,nuts,hard candy,crackers
Output ingredients
pillow style bags,packaged confectionery,packaged snacks,packaged nuts
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Bag width
70/250 mm
Maximum bag weight
0.3 kg
Maximum speed
up to 250 bags/min
Equipment dimensions
1425x1264x2280 mm
Low-drop design
Yes
Product-in-seal detection
Yes
Seal force
High (enabling gas-tight bags over a range of film material)
Film changeover time
less than 5 minutes
Labeling speed
up to 180 labels/min
Label width
150 mm

Operating Characteristics


Working Mechanism
Vertical form-fill-seal
Integrated Steps
Labelling,printing,sealing
Automation Level
PLC-controlled
Changeover Time
Less than 5 minutes
Efficiency
High speed,up to 250 bags/min
Cleaning Method
Manual or CIP

Material Compatibility


Abrasion resistance
High
Cleanability
Easy-to-clean
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.3 kg max

Physical Characteristics


Discharge method
Low-drop design
Control panel type
Touchscreen

Custom Options


Bag enhancement options
Labelling,printing,euro hole,re-closability
Labelling integration
GEA TiroLabel integrated,up to 180 labels/min
Control panel type
Quick menu for setup
Maintenance access
Double-hinged doors for easy access
