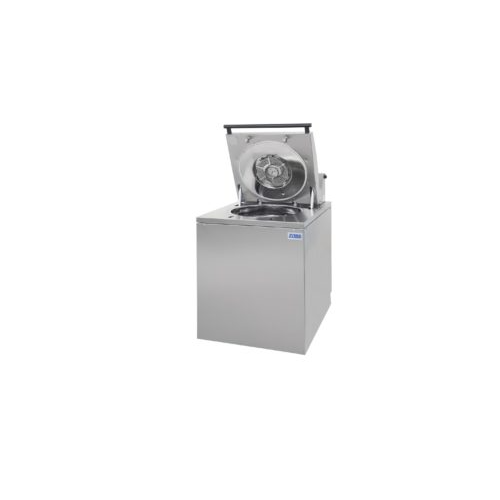

Vertical autoclaves for laboratory use
Optimize your lab’s sterilization and drying processes with versatile vertical autoclaves designed to handle everything from microbial culture media to sealed specimen containers, ensuring thorough decontamination and preparation for a variety of laboratory and biopharmaceutical applications.
Sterilizes and Dries Laboratory and Biopharmaceutical Materials
The LVSA series from Zirbus Technology offers vertical autoclaves designed for precise sterilization and drying operations in laboratories, healthcare facilities, and biopharmaceutical environments. These autoclaves integrate an efficient steam generator and vacuum pump set, significantly reducing heating and cooling times compared to conventional systems. They adapt to a variety of applications, from sterilizing laboratory reagents and glassware to decontaminating waste and sealed specimen containers.
With chamber volumes ranging from 80 to 153 liters, the LVSA models handle diverse batch processing needs, supported by options such as exhaust air filtration for handling pathogenic substances. The SteriTouch control interface offers intuitive operation, while advanced features like the steam-air mixture method ensure accurate temperature control for closed container sterilization.
These autoclaves comply with stringent S2/S3 laboratory standards, featuring construction materials that resist corrosion for extended service life. Coupled with a rapid water recooling system, they enhance productivity by shortening cycle times. Customization options, including chamber size and auxiliary components, are available to tailor the system to your specific laboratory requirements.
Benefits
- Enhances laboratory safety with reliable sterilization of pathogenic substances and waste.
- Increases productivity through rapid heating and cooling cycles.
- Adapts to diverse applications, from biopharmaceuticals to sealed container sterilization.
- Reduces cycle times and energy use with an integrated vacuum system.
- Ensures compliance with strict S2/S3 lab standards for secure operations.
- Applications
- Research facilities,Laboratory equipment,Biopharmaceuticals,S2/s3 laboratory items,Closed containers,Laboratory waste,Pathogenic substances,Waste materials,Liquids
- End products
- Sterilized biopharmaceutical compounds,Sterilized laboratory glassware,Laboratory reagents,Sterilized liquid samples,Sealed specimen containers,Biological research samples,Sterilized consumables in s2/s3 labs,Decontaminated laboratory waste,Microbial culture media
- Steps before
- Transferring materials to flasks,Loading materials into autoclave,Setting sterilization parameters
- Steps after
- Drying,Cooling,Unloading materials from autoclave,Packing sterilized items
- Input ingredients
- simple materials,liquids,non-infectious waste bags,large quantities of liquids,infectious waste bags,materials requiring drying,pathogenic substances,flasks,Erlenmeyer flasks
- Output ingredients
- sterilized simple materials,sterilized liquids,dried non-infectious waste,sterilized and dried infectious waste,sterilized pathogenic substances,sterilized and dried materials,sterilized flasks
- Market info
- Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.
- Chamber volume
- 80-150 litres
- External diameter
- (W) 550 x (D) 850 mm / (W) 700 x (D) 950 mm
- Heating capacity
- 6-9 kW
- Electrical connection
- 380 – 400V,50/60 Hz,16 A
- Loading height
- 760-900 mm
- Lifting and pivoting mechanism load capacity
- 30 kg
- Control system
- SteriTouch control (Touch display)
- Vacuum pump set
- Yes
- Steam-air mixture method (SAMM)
- Yes
- Exhaust air filtration
- EAF for pathogenic substances
- Rapid water recooling system
- Air-circulating fan
- Loading mechanism
- Vertical loading with lifting and pivoting mechanism
- Sterilization method
- Integrated steam generator
- Automation level
- SteriTouch control with touchscreen
- Recooling system
- Rapid water recooling with air-circulating fan
- Exhaust air filtration
- Exhaust air filtration with inline condensate sterilization
- Cleaning method
- Manual loading/unloading with lift assist
- Batch vs. continuous operation
- Batch operation
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container size and type
- 500 ml,1000 ml flasks
- Machine footprint
- (W) 550 x (D) 850 mm,(W) 700 x (D) 950 mm
- Chamber volume
- 80-153 liters
- External diameter
- (Ø) 400 x (H) 625-775 mm
- Loading height
- 760-900 mm
- Basket size
- 500 ml,1000 ml flask capacities
- Discharge method
- Vertical loading/unloading
- Control panel type
- SteriTouch control
- Control panel type
- SteriTouch control
- Rapid water recooling system
- With air-circulating fan
- Steam-air mixture method (SAMM)
- Applicable
- Exhaust air filtration
- EAF for level S2 labs
