Vacuum tumbler with lift and tilt system
In meat processing, ensuring consistent and thorough mixing during marination can be challenging, particularly when handling large volumes. Manual methods often lead to variable results and increased labor costs, prompting the need for a more efficient process.
Facilitates uniform tumbling with adjustable fins

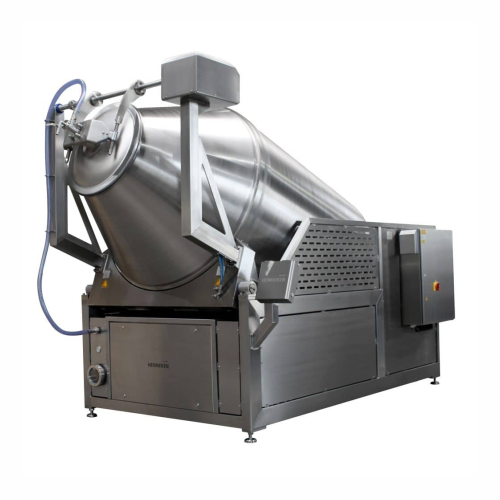

The Typ R by Henneken Tumbler is a vacuum tumbler designed to enhance the marination and tumbling process in meat processing facilities. Its unique lift-tilt system allows a tilt adjustment of 45°, ensuring a filling volume of 60%. This feature enables quick emptying by tilting the container. The vacuum tumbler operates with a direct drive and has a rpm range of 0.5 to 10 RPM, which can be adjusted via a user-friendly Siemens touchscreen panel. The tumbler also includes an automatic lid swiveling device. What sets the Typ R apart is the variety of fin options available. These fins can be adjusted for either gentle or intensive tumbling, depending on the rotation direction, and there’s even a 3D-tumbling option for more complex mixing requirements. The Typ R is available in sizes ranging from 1,650 liters to 10,000 liters, with power requirements varying from 4.7 kW to 33 kW.
Benefits
- Consistent and thorough marination
- Reduces labor costs with automated operations
- Customizable tumbling intensity
- Quick emptying with 45° tilt adjustment
- User-friendly programmable controls
