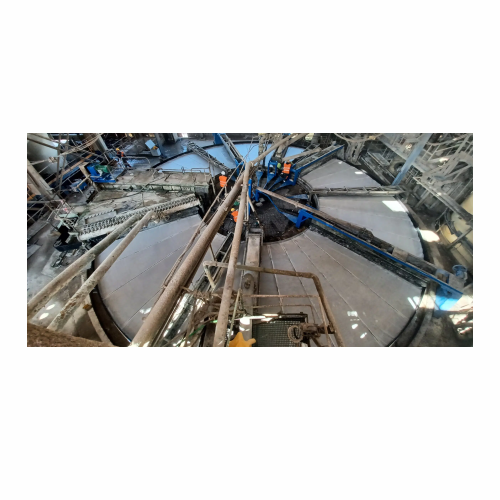

Vacuum table filters for liquid-solid separation

Optimize your liquid-solid separation with vacuum table filters, designed to enhance the efficiency of large-scale filtration processes, ensuring maximum recovery and quality of outputs while minimizing operational costs.

Performs Continuous Filtration and Drying

The AOUSTIN Table Vacuum Filters from HASLER Group are engineered to maximize efficiency in industrial filtration processes. This robust equipment features a continuous vacuum system, ideal for processes like filtration, washing, and drying of slurries in fertilizer production and metals refining. With a flat rotating table design and an independent support structure, these filters guarantee high-quality end products without dilution. Offering a range of filtration areas from 9 m² to 320 m², they meet the needs of large-scale operations. The filters are PLC-controlled, allowing seamless integration into existing production lines and ensuring precise adjustments for optimal performance. Constructed with corrosion-resistant stainless steel, they withstand harsh chemical environments, making them suitable for hydrometallurgical and chemical industries. Maintenance is streamlined via a floating system ensuring a level surface and uniform cake thickness, while the design includes a washing liquid distribution system to optimize resources and reduce water usage. The AOUSTIN filters support customization and engineering support to meet specific process requirements and operational timing, making them a versatile choice in large-scale industrial applications.

Benefits

  • Enhances product quality with consistent slurry distribution and cake thickness.
  • Lowers water usage via optimized filter cloth washing system.
  • Reduces operational costs with minimal wear parts and robust construction.
  • Offers flexibility in positioning to adapt to specific processes easily.
  • Resists corrosion and mechanical stresses, ensuring durability in harsh environments.

General


Applications
Zinc,Minerals,Cadmium,Metals,Mg salts,Chemical industry,Nacl,Alumina,Potash,Iron,Phosphoric acid,Fertilizers,Bauxite,Phosphate rock
End products
Magnesium chloride,Zinc sulfate for galvanizing,Cadmium compounds for battery manufacturing,Iron oxide for pigment production,Phosphate-based fertilizers,Monosodium phosphate,Potassium chloride (potash),Alumina hydrate,Alumina powder for aluminum production,Phosphoric acid solution,Metal alloys,Processed mineral ore,Industrial chemical compounds
Steps before
Slurry Preparation,Mixing,Homogenization
Steps after
Cake Extraction,Filtrate Recovery,Drying
Input ingredients
phosphoric acid,phosphate rock,potash,NaCl,Mg salts,aluminium (bauxite),zinc,cadmium,iron,hydrometallurgy slurry
Output ingredients
dry cake,washed cake,mother liquors,filtrate
Market info
HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.

Technical Specifications


Filtration Area
9 m² to 320 m²
Filtration Capacity
High
Service Life
30 years
Material
Stainless Steel
Flexibility
Positioning Adjustment
Air Flow Rate
Independent of pressure drop
Discharge Method
Dry or Wet Cake
Washing Liquid Distribution
Optimised

Operating Characteristics


Slurry feeder positioning
Flexible
Cake washing method
Efficient/Optimized
Automation level
Manual / Control unit with inverter
Filtration operation stages
Filtration,Washing,Drying,Extraction
Floating system for adjustment
Yes,ensures level surface
Corrosion resistance
Stainless steel construction
Adaptability to process
Adjustable distributor and barrier positioning

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Machine Footprint
Varies with size (9 m² to 320 m²)
Filter Table Type
Flat Rotating Table
Feed Method
Slurry directed to filtration table
Discharge Method
Extraction screw for cake removal
Construction Material
Stainless Steel

Custom Options


Control panel type
PLC-based
Discharge method
Dry or wet cakes
Slurry feeder positioning
Adjustable
Cake washing distribution
Customizable
Rotary joint on feed pipe
Available
Supporting carriage flexibility
Yes
