Uv laser writer for tablets and capsules
Achieve precise laser marking on tablets and capsules with high-speed production, ensuring compliance and traceability for solid dosage forms in pharmaceutical and nutraceutical applications.
Laser Marks Tablets and Capsules Efficiently

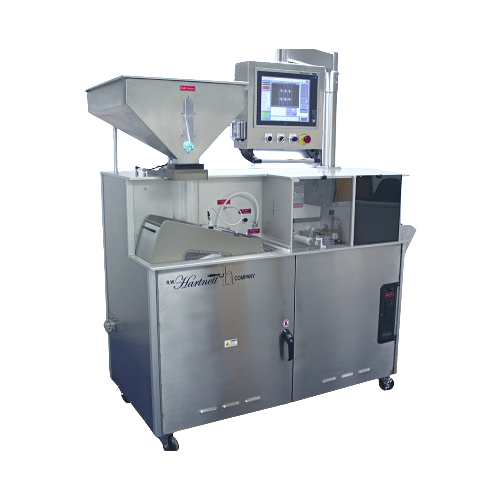

The H-Track UV Laser Writer from RW Hartnett Company is a dedicated flatbed laser marking machine designed for precision marking of tablets, soft gelatin capsules, and caplets containing titanium dioxide. This machine stands out with its capacity to laser mark single sides at impressive speeds of 120,000 to 180,000 pieces per hour, making it ideal for pharmaceutical and nutraceutical manufacturers aiming for high-volume production and compliance with marking standards. The adjustable feed hopper ensures maximum fill rates, while the servo drive system guarantees precise print registration. Integration into existing production lines is seamless, with features like a swingarm 15” touchscreen HMI, Wi-Fi connectivity, and batch recording. Compliance is assured with 21 CFR Part 11, CE, and UL certifications. For added functionality, optional vision inspection systems with single-piece rejection and validation document packages are available, alongside a floor-level infeed bulk conveyor, making the H-Track UV Laser Writer both a robust and adaptable solution for your marking needs.
Benefits
- Increases production capacity with up to 180,000 pieces per hour throughput.
- Enhances precision and reduces marking errors with a servo drive system.
- Streamlines data management and compliance through batch recording and 21 CFR Part 11 certification.
- Integrates smoothly into existing production lines with versatile connectivity options.
- Minimizes product handling and ensures consistent quality with adjustable hoppers and quick-change tooling.
- Applications
- Soft gelatin capsules,Pharmaceutical tablets,Caplets
- End products
- Vitamin d soft gel capsules,Antacid caplets,Fish oil soft gel capsules,Folic acid tablets,Cold and flu caplets,Ibuprofen caplets,Aspirin tablets,Paracetamol tablets,Multi-vitamin tablets,Omega-3 soft gel capsules
- Steps before
- Tablet Formulation,Mixing,Milling,Tablet Compression
- Steps after
- Vision Inspection,Sorting,Packaging,Quality Control
- Input ingredients
- tablet,soft gelatin capsule,caplet,titanium dioxide,TiO2
- Output ingredients
- laser marked tablet,laser marked soft gelatin capsule,laser marked caplet
- Market info
- RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.
- Production Output
- 120,000 to 180,000 pieces per hour
- Electrical Requirement
- 240 VAC / 30 amp / 3 phase
- Air Requirement
- 90 psi @ 5 scfm
- Laser Marking
- Single sided
- Hopper Type
- Adjustable for maximum fill rate
- Drive System
- Servo drive system
- Touchscreen Size
- Swingarm 15” touchscreen HMI
- Connectivity
- Wi-Fi connectivity
- Batch Recording
- Enabled
- Working Mechanism
- Flatbed style laser marking
- Automation Level
- Servo drive system with HMI
- Batch vs. Continuous Operation
- Batch
- Production Output Rate
- 120,000 to 180,000 pieces per hour
- Cleaning Method
- Manual cleaning
- Changeover Time
- Quick change tooling
- Connectivity
- Wi-Fi connectivity
- Control Type
- Swingarm 15” touchscreen HMI
- Batch Recording
- 21 CFR Part 11 Compliant
- Biological compatibility
- Compatible with titanium dioxide (TiO2)
- Cleanability
- Easy to clean surfaces
- Machine footprint
- Flatbed style
- Discharge method
- Adjustable feed hopper
- Control panel type
- Swingarm 15” touchscreen HMI
- Control panel type
- Swingarm 15” touchscreen HMI
