Uv laser writer for high-speed tablet marking
Achieve precise and rapid marking of pharmaceutical and nutraceutical tablets and capsules, ensuring clear identification and compliance with industry standards, even at high production speeds.
Marks Tablets and Capsules Efficiently

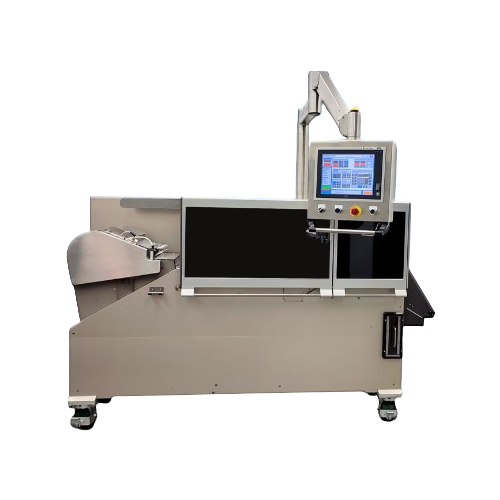

The IBM UV Laser Writer by RW Hartnett Company is engineered for the high-speed marking of pharmaceutical products like tablets, soft gelatin capsules, and caplets, specifically those with titanium dioxide (TiO2) content. This machine utilizes a state-of-the-art laser marking system, ensuring precision and efficiency in large-scale production environments. Capable of processing over 300,000 pieces per hour, it is indispensable for pharmaceutical and nutraceutical manufacturers focused on maintaining product quality and compliance with 21 CFR Part 11 and CE certifications.
Equipped with an adjustable bulk hopper and a servo drive system, the IBM UV Laser Writer provides accurate print registration and maximizes fill rates. Its design features quick-change tooling for minimal downtime, and a swingarm 15” touch screen HMI with Wi-Fi connectivity for easy operation within automated production lines. Optional features, such as a vision inspection system, ensure single-piece rejection, while the availability of validation document packages supports regulatory compliance. Designed with integration in mind, this machine can operate seamlessly in both processing and packaging departments, accommodating various production setups.
Benefits
- Increases production efficiency by processing over 300,000 pieces per hour.
- Enhances precision in marking to ensure consistent product quality.
- Reduces downtime with quick-change tooling and easy integration into existing lines.
- Supports regulatory compliance with 21 CFR Part 11 and CE certifications.
- Improves operational flexibility with Wi-Fi connectivity and remote monitoring capabilities.
- Applications
- Soft gelatin capsules,Pharmaceutical tablets,Caplets
- End products
- Ibuprofen tablets,Omega-3 soft gelatin capsules,Calcium carbonate caplets,Vitamin d soft gelatin capsules,Acetaminophen tablets,Multivitamin caplets
- Steps before
- Tablet Formulation,Tablet Loading,Product Feed Setup
- Steps after
- Vision Inspection,Single Piece Rejection,Batch Recording,Packing
- Input ingredients
- tablets,soft gelatin capsules,caplets,titanium dioxide,TiO2
- Output ingredients
- laser-marked tablets,laser-marked soft gelatin capsules,laser-marked caplets
- Market info
- RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.
- Electrical
- 240 VAC / 30 amp/ 3 phase
- Air Pressure
- 90 psi @ 5 scfm
- Speed
- Over 300,000 pieces per hour
- Marking Capability
- Single sided laser marking
- Print Registration
- Servo drive system for precision
- Touch Screen Size
- 15”
- Connectivity
- Wi-Fi connectivity
- Batch Recording
- Available
- Compliance
- 21 CFR Part 11,CE,UL certified
- Working mechanism
- Laser writing
- Integrated steps
- Single sided marking
- Batch vs. continuous operation
- Batch
- Automation level
- Servo drive system
- Changeover time
- Quick change tooling
- Cleaning method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product material
- Tablets,soft gelatin capsules,caplets
- Machine Footprint
- Flatbed
- Feed/Discharge Method
- Bulk hopper with adjustable flood feeder
- Touch Screen Size
- 15” swingarm touch screen HMI
- Wi-Fi connectivity
- Available
- Control Panel Type
- Swingarm HMI
- Control panel type
- Swingarm 15” touch screen HMI
- HMI Features
- Wi-Fi connectivity
- Integration possibilities
- Batch recording
- Tooling change
- Quick change tooling
