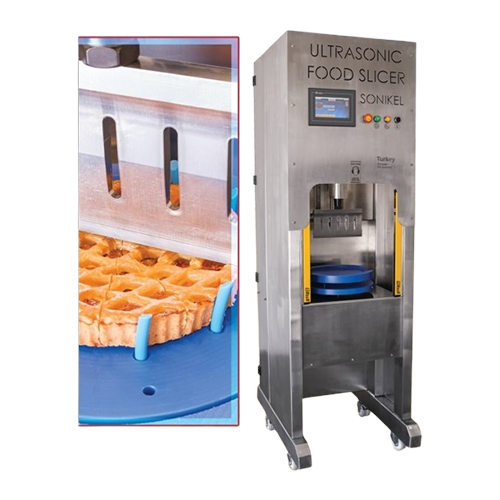

Ultrasonic cake slicing system

Achieve precise, high-speed slicing of delicate and sticky food products with ultrasonic technology, ensuring smooth cuts and minimal product waste, even in high-demand automated production environments.

Slices and Cuts Cakes and Baked Goods

The UFC-P3 from Sonikel Ultrasonics is an advanced ultrasonic cutting solution tailored for food processing companies requiring precise, efficient slicing of baked goods. Employing ultrasonic vibrations, it minimizes cutting resistance, resulting in smooth, clean slices of even the most delicate or sticky products like cakes, cheese, and halva. Capable of outputting up to 10,000 slices per shift, the UFC-P3 is engineered for integration into automated, high-speed production lines, ensuring consistency and reducing the need for manual intervention. Its stainless steel body and titanium alloy blade ensure compliance with food safety standards, while offering resistance to corrosion. Customizable slice settings and two-axis design make it ideal for round cakes, enhancing versatility. Built with automation in mind, it features programmable controls for adjusting slice thickness, speed, and pattern, all while operating at 20 kHz for precise cuts.

Benefits

  • Minimizes labor costs with automated slicing operations.
  • Ensures consistent, high-quality cuts for improved product presentation.
  • Supports diverse food products, enhancing production line versatility.
  • Reduces waste with precise ultrasonic cutting technology.
  • Facilitates quick changeover with customizable slice settings.

General


Applications
Frozen cakes,Fresh cakes,Baked goods,Halva,Sandwiches,Cheese,Honeycomb
End products
Steps before
Product Dimensioning,Product Sorting
Steps after
Packaging,Quality Inspection
Input ingredients
donuk pasta,yaş pasta,kaşar peyniri,petek bal,helva,kek,sandviç
Output ingredients
dilimlenmiş donuk pasta,dilimlenmiş yaş pasta,dilimlenmiş kaşar peyniri,dilimlenmiş petek bal,dilimlenmiş helva,dilimlenmiş kek,dilimlenmiş sandviç
Market info
Sonikel Ultrasonics is known for its expertise in manufacturing high-quality ultrasonic equipment for industrial applications, specializing in engineered-to-order solutions that meet diverse client specifications and maintain a strong reputation for reliability and innovation in ultrasonic technology.

Technical Specifications


Automation
Ultrasonic cutting with automation
Frequency
20 kHz
Output Power
1000W / 2500W
Supply Voltage
230V / 50-60 Hz
Capacity
10,000 slices per shift
Adjustable Options
Cut Time / Cut Length / Blade Speed / Slice Count / Operator Password / Recipe Memory
Material
Stainless steel body,titanium alloy blade

Operating Characteristics


Working Mechanism
Ultrasonic cutting
Automation Level
Operator-free / Automated
Batch vs. Continuous Operation
Batch
Integrated Steps
Cutting,Slicing
Changeover Time
Quick setup
Cleaning Method
Manual

Material Compatibility


Food-grade suitability
100% food-safe materials
Cleanability
Easy to clean design
Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Non-toxic materials
Abrasion resistance
Titanium alloy blades

Physical Characteristics


Machine Footprint
Customizable based on product size
Blade Material
Titanium Alloy
Body Material
Stainless Steel
Design
2-Axis for Round Cakes
Operation Configuration
10,000 slices per shift
Power Frequency
20 kHz
Output Power Options
1000W / 2500W
Supply Voltage
230V / 50-60 Hz

Custom Options


Control panel type
HMI with adjustable parameters
Integration possibilities
Automation and customization for specific food sizes and types
Processing customization
Adjustable slice thickness and speed
Operation mode
Automatic slicing with operator password protection
Recipe storage
Recipe memory for consistent product slicing
