Ultrapure water system for laboratory applications

Ensure uncompromised water purity for critical applications with a system that delivers 18.2 MΩ.cm ultrapure water, ideal for precise analytical and life science research.

Delivers Consistent Ultrapure Water

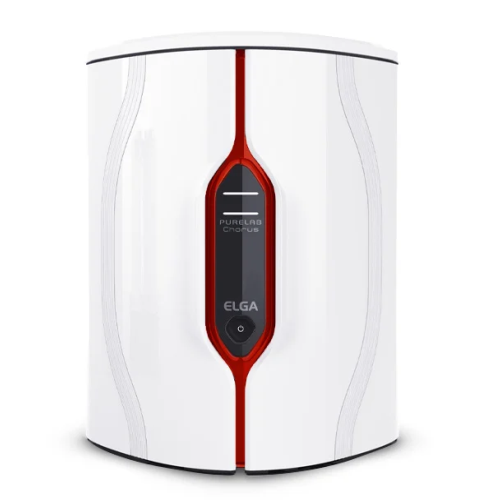

The PURELAB Chorus 1 from ELGA LabWater is an ultrapure water system tailored for laboratories demanding precise water quality for intricate applications. Equipped with advanced PureSure deionization and integrated UV treatment, it consistently provides Type I ultrapure water, essential for environments focusing on molecular biology and mass spectrometry. With a delivery capacity of up to 120 liters per day, it sustains continuous operations with manual interventions, ensuring constant readiness. The system’s automation features include TOC monitoring and real-time data capture—vital for compliance and validation purposes. Designed for easy integration into existing setups, it offers modular dispense solutions for specific lab needs. The PURELAB Chorus 1 system efficiently manages impurities through a combination of deionization and filtration, minimizing energy consumption and ensuring longevity of consumables, all while adhering to stringent industry standards.

Benefits

  • Ensures consistent ultrapure water quality crucial for accurate laboratory results.
  • Minimizes operational costs with optimized deionization and filtration systems.
  • Enhances data reliability through continuous TOC monitoring and real-time performance validation.
  • Adapts seamlessly into diverse lab environments with modular dispense options.
  • Supports compliance and validation requirements with integrated system monitoring.

General


Applications
Cell culture,General science,Mass spectrometry,Molecular biology,Liquid chromatography,Analytical research,Electrochemistry,Gas chromatography,Qualitative analysis,Life sciences,Ultra trace analyses,Immunochemistry,Atomic spectroscopy
End products
Protein structure analysis,Lab-grade reagents,Dna sequencing results,High-performance liquid chromatography (hplc) output,Gas chromatography detectors,Biochemical assays,Antibody production,Analytical standards,Cell lines,Pharmaceutical compounds,Therapeutic proteins,Cell therapies
Steps before
Pre-treatment,Initial filtration,Reverse osmosis
Steps after
Quality assurance,Sterilization,Data capture
Input ingredients
pre-treated water,feed water,<50 ppb TOC water
Output ingredients
ultrapure water,Type I water,18.2 MΩ.cm resistivity water,water with 1-3 ppb TOC,<0.001 CFU/ml bacteria,<0.001 EU/ml bacterial endotoxin,effectively neutral pH,<0.01 µm particles,<5 pg/ml DNase,<1 pg/ml RNase
Market info

Technical Specifications


Dispense flowrate
Up to 2.0 l/min
Inorganics resistivity (at 25°C)
18.2 MΩ.cm
Organics (TOC)
1-3 ppb
Bacteria
<0.001 CFU/ml
Bacterial endotoxin
<0.001 EU/ml
PH
Effectively neutral
Particles
<0.01µm
DNase
<5 pg/ml
RNase
<1 pg/ml
Daily usage (max)
120 l/day
Daily usage (min)
1 l/day
Integrated Filtration
Ultrafiltration or microfiltration

Operating Characteristics


Real-time TOC Monitoring
Yes
Fully Recirculating System
Yes
Automation Level
Automatic with Manual Options
Batch vs. Continuous Operation
Continuous
Purity Monitoring
Real-time monitoring to point-of-use

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
660 (h) x 376 (w) x 340 (d) mm for 30l
570 (h) x 532 (w) x 522 (d) mm for 60l
806 (h) x 532 (w) x 522 (d) mm for 100l
470 (h) x 376 (w) x 340 (d) mm for 15l
Flow rate
Up to 2.0 l/min
Reservoir capacity
15l,30l,60l,100l

Custom Options


Control panel type
Digital with real-time monitoring
Integration possibilities
Modular and flexible installation options
