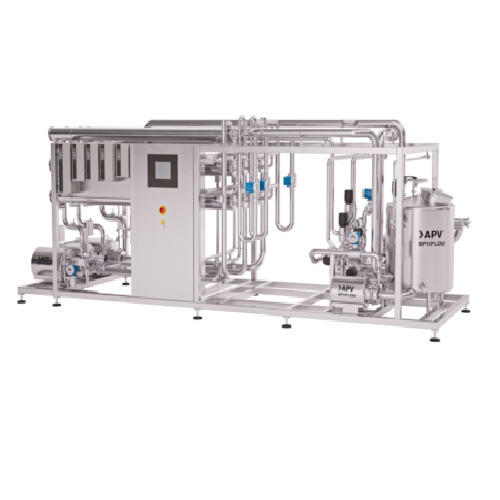

Ultrafiltration for dairy and plant-based protein concentration

Optimize your production capacity and increase yield with ultrafiltration, a sustainable solution for concentrating milk, whey, and plant-based proteins while minimizing waste through efficient valorization and water recovery.

Concentrates and Standardizes Proteins in Liquid Foods

The Ultrafiltration (UF) Membrane Filtration Systems are designed for rigorous applications in the dairy and plant-based processing industries. These systems utilize high-performance ultrafiltration membranes to concentrate proteins and separate components effectively, making them indispensable in the production of milk protein concentrate, whey protein isolate, and plant-based beverages like soy, almond, and oat milk.

These systems operate continuously and at high speeds, ensuring maximum efficiency and throughput suitable for large-scale operations. Engineered with proven components and standardized designs, they reduce utility consumption via optimized speed controllers on all motors. The equipment is pre-assembled for seamless integration into existing production lines, simplifying installation and maintenance processes.

Fabricated from materials that promise durability and corrosion resistance, the systems are tailored to meet the demands of diverse processing conditions. They support clean-in-place (CIP) operations, minimizing downtime and maintaining hygiene standards. Offering customization and engineering support, these systems can be adapted to specific production requirements, enhancing operational efficiency and product quality.

Benefits

  • Increases product yield and reduces waste through efficient protein concentration.
  • Lowers operational costs with optimized utility consumption.
  • Enhances production flexibility with continuous, high-speed operation.
  • Decreases downtime with CIP system for fast, contamination-free cleaning.
  • Supports environmental sustainability through water recovery and valorization of by-products.

General


Applications
Feta cheese,Plant-based beverages,Milk products,Queso fresco,Whey products,Cream cheese,Dairy powders,Plant-based protein products
End products
Oat milk,Almond milk,Greek yogurt,Rice milk,Dairy protein powder,Vegan cream cheese,Whey protein isolate,Milk protein concentrate,Soy protein powder
Steps before
Purification,Mixing,Homogenization
Steps after
Drying,Packaging,Powderization
Input ingredients
milk,whey,plant-based protein
Output ingredients
milk powder,whey protein concentrate,plant-based powder,fresh cultured cheeses,cream cheese,feta,queso fresco
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Membrane type
Ultrafiltration (UF)
Application
Dairy,Plant-based
Protein concentration
Milk,Whey,Plant-based protein
Sustainability
High
Yield increase
Substantially higher
System design
Proven
Membrane lifetime
Long
Utility consumption
Optimized
Assembly
Pre-assembled
Control
Speed controllers on all motors

Operating Characteristics


Working mechanism
Membrane Filtration
Integrated steps
Concentration and valorization
Batch vs. continuous operation
Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Automation level
PLC controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Tank shape and size
Cylindrical,varies by application
Feed/Discharge method
Automated feed and discharge

Custom Options


Control panel type
PLC with Speed controllers
Pre-assembly
Pre-assembled in manufacturing facilities
Operator and maintenance friendliness
Easy access design
Utility consumption optimization
Optimized to reduce utility use
