Twin-screw feeder for powders and micro-granules

Ideal for handling poorly flowing powders and granules, this advanced twin-screw feeder ensures precise and consistent dosing, addressing challenges in bridging and flow interruption.

Feeds and Meters Challenging Powders and Granules

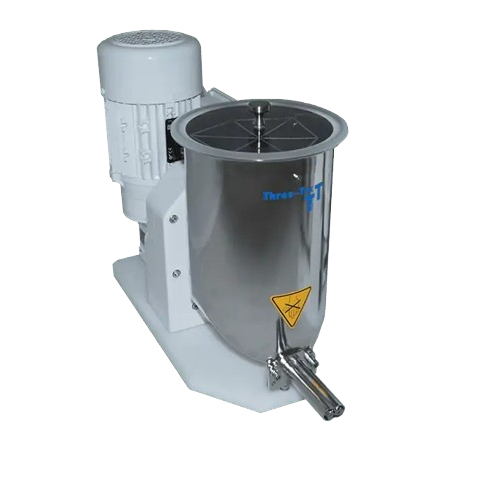

The ZD 12 B from Three-Tec is a volumetric twin-screw feeder designed specifically to tackle the challenges of handling poorly flowing powders and bridging materials. It employs a discharge aid and bridge breaker mechanism to ensure consistent material flow, making it ideal for feeding and metering processes in chemical, pharmaceutical, and food industries. Offering throughput rates from 0.2 to 57 liters per hour, the feeder can accommodate both AC three-phase and servo motor options, enabling precise adjustment of feeding speed between 4 and 750 revolutions per minute. Its flexible design includes horizontal or vertical discharge pipes and a dosing hopper capacity of either 4.5 or 8.5 liters. The ZD 12 B integrates seamlessly into existing production lines with its continuous operation capability, ensuring efficient dosing of products like protein powders, pharmaceutical ingredients, and fine polymers. Constructed for durability and efficiency, this feeder is a crucial component for overcoming the operational hurdles often encountered in powder processing sectors.

Benefits

  • Ensures consistent material flow by preventing bridging and caking with a discharge aid and bridge breaker.
  • Optimizes feeding precision with adjustable feed rates up to 57 liters per hour.
  • Reduces integration time and costs by accommodating both horizontal and vertical discharge configurations.
  • Enhances operational efficiency with minimal maintenance requirements due to robust design.
  • Supports diverse material handling, from pharmaceutical powders to food-grade micro-granules, enhancing production versatility.

General


Applications
Bridging products,Baking products,Poorly flowing materials,Powder processing,Micro-granules
End products
Spice blends,Coffee granules,Powdered sugar,Ceramic powder,Instant cake mix,Baking soda,Protein powder,Pharmaceutical powders,Fine polymers,Microcrystalline cellulose
Steps before
Grinding,Mixing,Sifting
Steps after
Packaging,Blending,Mixing with other ingredients
Input ingredients
poorly flowing products,baking products,bridging products,powder,micro-granules
Output ingredients
fed materials,discharged products
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Throughput with AC three-phase motor
0.2-40.6 l/h
Throughput with servo motor
0.1-57 l/h
Ø Metering tools
12 mm
Weight
≈ 20 kg
Dosing hopper capacity
4.5 l or 8.5 l
Motor type
AC or servo motor
Speed with AC three-phase motor
up to 750 min-1 (depending on gearbox)
Speed with servo motor
4-750 min-1
Dosing type
Volumetric
Discharge aid/bridge breaker
Yes
Discharge options
Horizontal or vertical

Operating Characteristics


Working mechanism
Volumetric twin-screw feeder
Integrated steps
Intervention protection
Discharge options
Horizontal or vertical discharge pipe
Batch vs continuous operation
Continuous
Discharge aid
Bridge breaker
Motor type
AC or servo motor
Speed control
4-750 min-1 (depending on motor type)

Material Compatibility


Abrasion resistance
Suitable for micro-granules
Biological compatibility
Yes
Cleanability
Easy to clean due to accessibility
Corrosive resistance (e.g. acids)
Moderate
Density/particle size
Fine powders,micro-granules

Product type Characteristics


Material handling
Poorly flowing / Bridging

Physical Characteristics


Discharge method
Horizontal or vertical discharge pipe
Weight
≈ 20 kg
Dosing hopper capacity
4.5 l or 8.5 l
Ø Metering tools
12 mm

Custom Options


Motor type
AC three-phase / Servo motor
Dosing hopper capacity
4.5 l or 8.5 l
Discharge method
Horizontal or vertical discharge pipe
Intervention protection
Available
