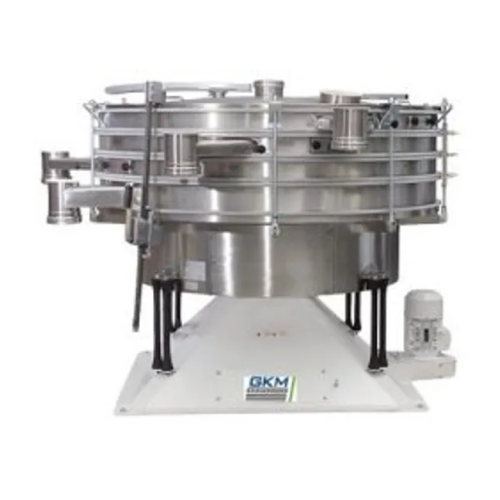

Tumbler screener for multi-deck screening in powders and granules

Achieve precise separation and de-dusting of powders and granules with up to seven fraction outputs, ensuring consistent product quality even with challenging fine or delicate materials.

Separates and Screens Multi-sized Particulate Materials

The GKM Ultimate Tumbler Screener, distributed by Kemutec, is a versatile flat deck screener designed for efficient separation and de-dusting of powders and granules. Its multi-deck construction allows up to seven particle size fractions to be seamlessly sorted, accommodating feed sizes from 1 micron to 20 mm. This solution excels in industries ranging from food processing and pharmaceuticals to chemicals and minerals, producing end products such as whey protein isolate and chewable pet tablets. With the capability to process up to 50 tons per hour, the screener supports high-speed, continuous operations.

Incorporating advanced 3D motion technology, it delivers gentle handling to avoid material degradation while ensuring high separation efficiency, achieving up to 99% accuracy. The tumbler’s modular design facilitates easy adaptation to specific materials and offers a variety of screen types, including stainless steel, to handle different applications. It is compliant with FDA, GMP, and ATEX standards, supporting clean and controlled processing environments, and equipped with ultrasonic cleaning for maintenance-free operations. Additionally, this equipment provides options for enhanced efficiency with reduced power consumption and noise levels below 75 db(A). Custom engineering support is available, allowing tailored configurations to meet specific processing needs.

Benefits

  • Enhances product quality consistency with customizable multi-deck separation.
  • Minimizes maintenance time with ultrasonic cleaning and quick screen changes.
  • Reduces energy usage due to efficient motor control and low power requirements.
  • Complies with FDA, GMP, and ATEX for secure and regulated processing.
  • Adapts versatility to various materials, optimizing operational flexibility.

General


Applications
Flavourings,Food processing industries,Metal powders,Wheat gluten,Calcium carbonates,Sugar,Chemical processing industries,Performance materials (plastics),Pet recycling,Animal feed and pet food industries,Silica sand,Starch,Milk powders,Minerals,Pharmaceutical processing industries,Plastic powders,Citric acid
End products
Powdered sugar,Citric acid crystals,Polycarbonate granules,Ferrous powder components,Foundry sand,Precipitated calcium carbonate,Specialty polymer pellets,Wheat gluten protein,Whey protein isolate,Pvc powder,Lactose powder for infant formula,Plastic color masterbatches,Chewable pet tablets,Polyethylene terephthalate (pet) flakes,Pharmaceutical tablet coatings,Cornstarch,Stainless steel powder,Soy protein concentrate,Poultry feed supplements,Vanilla flavoring
Steps before
Grinding,Milling,Mixing,Blending
Steps after
Dedusting,Fractionating,Re-screening,Packing
Input ingredients
dry powders,granular materials,milk powders,starch,wheat gluten,sugar,citric acid,flavourings,metal powders,plastic powders,PET recycling,silica sand,calcium carbonates
Output ingredients
separated fractions,consistent product quality,screened materials with up to 7 fractions,fine and coarse particles
Market info
Kemutec is known for its expertise in manufacturing industrial powder processing equipment, including sifters, mills, and mixers, tailored to meet specific customer needs. They are reputed for delivering high-quality, reliable engineered-to-order solutions.

Technical Specifications


Particle feed size
1 micron up to 20 mm
Feed rates
1kg/h – 50 ton/h
Mesh openings
20 microns to 20 mm
No. of screen decks
1 – 6 per machine
Speed range
180-280 min-1
Screen movement
Three-dimensional,set to product
Amplitude
40-80 mm horizontally and 5-40 mm vertically
Acceleration
1.3-1.8 g
Model sizes/ca. Ø
600,1000,1200,1600,2000,2400,2600 mm
Screening surface (m²)
0.292,0.785,1.13,1.83,2.63,4.52,5.31
Motor power
0.25,1.50,2.20,4.00,5.50,5.5/7.5 kW
Separation efficiency
Up to 99%
Compliance and certifications
FDA,GMP,ATEX

Operating Characteristics


Screen Movement
Three-dimensional
Automation Level
Manual / PLC
Batch vs. Continuous Operation
Batch / Inline Continuous
Cleaning Method
Manual / CIP
Energy Efficiency
Low power consumption
Changeover Time
Fast
Adjustability
3D motion adjustment system
Operational Flexibility
Modular,multi-deck design

Material Compatibility


Abrasion resistance
High
Biological compatibility
FDA compliant
Cleanability
Easy to clean
Density/particle size
1 micron to 20 mm
Corrosive resistance (e.g. acids)
Available in stainless steel

Product type Characteristics


Delicate material handling
Yes

Physical Characteristics


Machine size
600-2600 mm diameter
Number of screen decks
1 – 6 per machine
Screen surface area
0.292-5.31 m²
Footprint
Compact,modular design
Screen movement
Three-dimensional
Amplitude
40-80 mm horizontally,5-40 mm vertically
Material movement
Elliptical action
Screening diameter
600,1000,1200,1600,2000,2400,2600 mm
Discharge method
Lateral outlets
Motor power
0.25 to 7.5 kW

Custom Options


Screening surface size
0.292 to 5.31 m²
Material construction
Stainless/Carbon/ViwateQ
