Top-down x-ray inspection for pharmaceutical packages

Ensure product safety by detecting minute foreign particles and packaging defects in syringes and blister packs with precision and reliability, safeguarding quality before distribution.

Detects and Rejects Packaging Defects and Foreign Objects

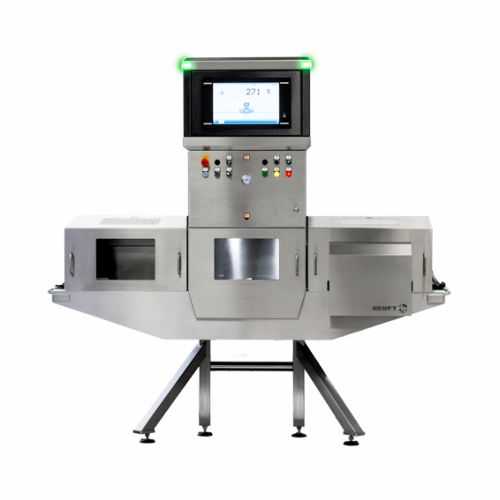

The HEUFT eXaminer II XB is an engineered-to-order X-ray inspection system that ensures the highest standards in pharmaceutical packaging quality. Leveraging unique pulsed X-ray technology for top-down inspection, it reliably detects foreign objects and packaging defects in syringes, blister packs, and lyophilized products. This system’s high throughput of up to 2,400 items per minute seamlessly integrates into existing production lines, providing precise defect detection with a significantly reduced false rejection rate. Utilizing HEUFT’s proprietary real-time image processing and HEUFTreflexx A.I., the equipment discriminates between genuine faults and normal variations. Its low radiation pulses prevent motion blurs and allow continuous operation at high speeds, ensuring consistent product integrity. Compliant with global safety standards, the HEUFT eXaminer II XB includes self-diagnosis and robust documentation functionalities, making it indispensable for pharmaceutical manufacturers prioritizing quality assurance and safety in packaging operations.

Benefits

  • Enhances product safety by precisely detecting and rejecting defective and contaminated items.
  • Increases operational efficiency with flexible integration and high-speed throughput, supporting up to 2,400 items per minute.
  • Minimizes false rejections using advanced image processing, reducing waste and associated costs.
  • Lowers radiation exposure while maintaining full detection reliability, protecting both products and operators.
  • Offers robust documentation and self-monitoring for seamless compliance with regulatory standards.

General


Applications
Syringes,Blister packs,Glass containers,Plastic containers,Tablets,Metal containers,Lyo products,Pharmaceuticals
End products
Pre-filled syringe medications,Lyophilized vaccines,Cold and flu blister packs,Vitamin tablets,Plastic pill bottles,Injectable antibiotics,Injectable insulin,Cough syrup bottles,Aluminum medication tubes
Steps before
Filling,Sealing,Pre-packaging
Steps after
Packaging,Labeling,Distribution
Input ingredients
pharmaceutical containers,syringes,blister packs,lyo products,filled pharmaceutical primary packaging
Output ingredients
defect-free pharmaceutical containers,defect-free syringes,defect-free blister packs,defect-free lyo products,foreign particle-free packaging
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Detection Type
Pulsed X-ray
Image Processing Technology
HEUFTreflexx A.I
Inspection Speed
Up to 1,200 products per minute
Maximum Throughput
2,400 products per minute
Radiation Level
Low / Pulsed X-ray flashes
Automation Level
Highly automated with HEUFTSPECTRUM II
Operational Capability
Static and dynamic inspection
Container Compatibility
Pharmaceutical containers,syringes,blister packs
False Rejection Rate
Minimized with AI
Hygiene Optimisation
HEUFTCleanDesign
Capability of Top-Down Inspection
Yes
Full-Field Image Converters
Yes

Operating Characteristics


Inspection method
Top-down pulsed X-ray
Operating speed
Up to 2,400 products per minute
Detection accuracy
Maximum detection reliability
X-ray pulse duration
Only a millisecond
Radiation level
Low
Automation level
Highly automated with HEUFTSPECTRUMII
Motion blur prevention
Yes,at line speeds up to 1,200 products per minute
Conveyor operation
Inspections possible even when stationary
Foreign object detection
Glass,metal,plastic
Product tracking
Exact product tracking
Fault rejection
Reliable rejection of faulty products
Self-tests
Regular self-tests and monitoring
System extensibility
Modular design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Various shapes and sizes,including pharmaceutical containers,syringes,and blister packs

Physical Characteristics


Compact footprint
Yes
Control panel type
Touchscreen
Detection surface
Large,sensitive
Design
Hygiene-optimized

Custom Options


Control panel type
Touchscreen with HEUFTNaVi user guidance
Integration possibilities
Networking with Gigabit Ethernet and TCP/IP
Device platform
HEUFTSPECTRUMII platform
Modular design
Extendable with optional multi-flash options
