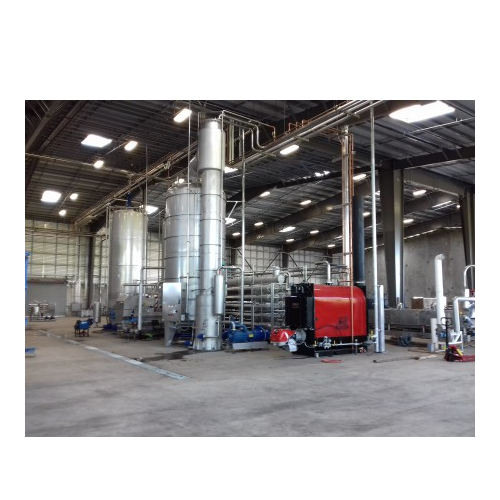

Thermovinification system for red wine production

Optimize your vinification process with a complete thermovinification system that enhances anthocyanin and tannin extraction, enabling you to craft a diverse range of wines with superior color intensity and richness.

Enhances Extraction and Flavor in Wine Production

The Biothermo Cooler from Della Toffola is a complete thermovinification and flash extraction system uniquely designed for wineries aiming to maximize anthocyanin and tannin extraction in wine production. By combining rapid grape heating with instantaneous expansion under vacuum conditions, it enhances color and flavor while preparing the grape mass for efficient tannin release. This system features an integrated cooler unit for both flash treatment and traditional maceration, enabling versatile application across red, white, and rosé wines. Available in models handling up to 60 tons per hour, the Biothermo Cooler supports continuous, high-capacity processing and is easy to integrate with existing winery operations. Additionally, an optional chiller unit facilitates low-temperature macerations for producing fruity white and elegant rosé wines. The system’s energy efficiency is complemented by flexible automation features, ensuring minimal intervention and optimal production outcomes. Constructed for durability, it meets the demands of modern winemaking while maintaining effortless cleaning and maintenance processes.

Benefits

  • Enhances wine quality by optimizing color and tannin extraction, resulting in vibrant and aromatic end-products.
  • Increases operational efficiency with continuous, high-capacity processing up to 60 tons per hour.
  • Offers versatile wine production for diverse styles, from structured reds to fruity whites and rosés.
  • Reduces energy consumption through efficient integrated heating and cooling processes.
  • Simplifies integration into existing wineries, enhancing flexibility and reducing setup time.

General


Applications
Rosé wine,White wine,Red wine,Wine making
End products
Fruity white wine,Elegant rosé wine,Young red wine,Structured red wine
Steps before
Crushing,Straining
Steps after
Vinification,Fermentation,Refinement
Input ingredients
crushed grapes,red wine grapes,white wine grapes,rosé wine grapes
Output ingredients
anthocyanins,noble tannins,red wine,white wine,rosé wine
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Capacity
1.5 to 60 tons/hour
Temperature Range
Low temperatures for cold macerations
Automation
Integrated system
Expansion Method
Strong vacuum
Heating Method
Boiler for heating crushed grapes
Maceration Tank
Replaced with cooler unit
Cooling Option
Integrated with chiller unit
Process Type
Thermovinification / Flash extraction
Component Count
Three main components
Structure
Storage tank,immersion circuit,cooler unit
Features
Rapid heating of the crushed grapes

Operating Characteristics


Thermovinification process
Integrated flash extraction
Heating system
Immersion circuit with boiler
Vacuum expansion
Strong vacuum for cell breakdown
Maceration option
Normal maceration or flash treatment
Capacity
1.5 to 60 tons/hour
Integration
Adaptable with existing systems
Temperature control
Can be integrated with a chiller unit

Physical Characteristics


System capacity
1.5 to 60 tons/hour
Machine footprint
Adaptable to existing wineries
Tank type
Storage tank,cooler unit
Feed type
Crushed grapes
Discharge method
Integrated immersion circuit
Maceration capability
Flash extraction,normal maceration
Cooling option
Cold macerations

Custom Options


Integration possibilities
Adaptable to existing wineries and systems
Compact footprint
Integrated system
