Thermostabilizer for beer and wine sterilization

Ensure biological stability in beverages by efficiently inactivating yeasts and bacteria through precise heating and optional processes like deoxygenation and saturation.

Inactivates Yeasts and Bacteria in Beverages

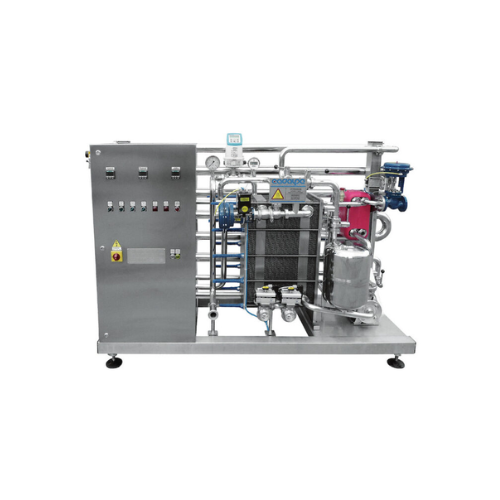

The C 8 Thermostabilizer from Cadalpe is engineered for beverage manufacturers seeking to ensure the biological stability of their products. This equipment excels in yeast and bacteria inactivation using a thermostabilization process and is suitable for beer, wine, spirits, and other beverages. Constructed with AISI 304 stainless steel and AISI 316 exchange plates, it ensures durability and sanitation. Its multi-stage operation allows for optional degassing and deoxygenation, enhancing product quality. The thermostabilizer is PLC-controlled for seamless integration into continuous, high-speed production lines. It supports CO2 saturation for certain applications, ensuring compatibility with carbonated products. Additionally, Cadalpe offers engineering support for customization, ensuring the equipment meets specific operational requirements.

Benefits

  • Ensures product integrity by inactivating harmful microorganisms.
  • Simplifies integration with continuous production lines with automated control.
  • Enhances product quality through optional CO2 saturation and deoxygenation.
  • Reduces contamination risks with durable, sanitary stainless steel construction.
  • Offers process flexibility with customizable multi-stage configurations.

General


Applications
Beverage industry,Beer,Spirits,Wine
End products
Lager beer,Whiskey,Red wine,Vodka,Carbonated soft drinks,White wine,Fruit juices,Sparkling wine
Steps before
Degassing,Pre-heating,Preventive Saturation with Carbon Dioxide,Preventive Deoxygenation
Steps after
Cooling,Bottle Filling,Capping,Labeling
Input ingredients
yeasts,bacteria,product
Output ingredients
biologically stable product,heated product
Market info
Cadalpe is renowned for designing and manufacturing custom-engineered equipment for the wine, beverage, and food industries, specializing in advanced filtration, distillation, and heat exchange technologies, earning a reputation for innovation and quality.

Technical Specifications


Material
AISI 304 stainless steel
Exchange Plates Material
AISI 316
Stages
Single,Double,or Three-stage
Temperature Control
Sophisticated instrumentation to check and adjust
Pressure Control
Sophisticated instrumentation to check and adjust
Optional Features
Carbon Dioxide Saturation Column,Vacuum-operating Deoxygenation Chamber

Operating Characteristics


Heating stages
Single / Double / Three-stage
Temperature control
Automated
Pressure control
Automated
Deoxygenation option
Vacuum-operating chamber
CO₂ saturation
Preventive saturation column
Material composition
AISI 304 stainless steel,AISI 316 exchange plates
Biological stability
Yeast and bacteria inactivation

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 304 / AISI 316 stainless steel


FDA materials
AISI 304/316 stainless steel

Physical Characteristics


Material
AISI 304/316 Stainless Steel
Stages
Single,Double,Three-stage
Additional Units
Degaussing Unit,CO2 Saturation Column,Deoxygenation Chamber
Instrumentation
Temperature and Pressure Control
Footprint
Compact design for installation in limited spaces

Custom Options


Stage Configuration
Single / Double / Three-stage
Degassing Unit
Optional
Carbon Dioxide Saturation Column
Optional
Vacuum-Operating Chamber
Optional
Material
AISI 304 Stainless Steel / AISI 316 Exchange Plates
