Tamper evident heat tunnel for safety banding

Achieve precise and consistent tamper-evident sealing on containers with a heat tunnel designed to uniformly shrink plastic safety sleeves, enhancing product integrity and presentation.

Performs Precise Temperature-Controlled Heat Shrinking

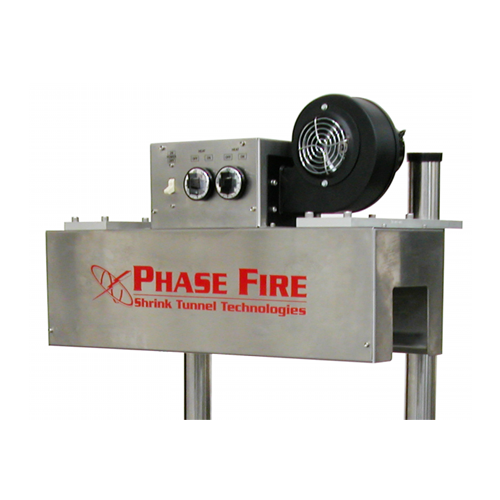

The Phase Fire G7 Heat Shrink Tunnel from Accutek Packaging is an expertly engineered solution for tamper-evident packaging needs. Featuring a tapered heating process, this equipment ensures uniform shrinkage of plastic safety seals, enhancing the professional appearance of any product. Its robust stainless steel construction and user-friendly controls make it suitable for the food, beverage, and pharmaceutical industries. With individualized level heat controls, it operates efficiently within a temperature range of 125 to 290 degrees Fahrenheit, perfect for applications from pharmaceutical bottles to condiment jars. The Phase Fire G7 easily integrates into existing production lines, either mounted on conveyors or as a standalone unit. Thanks to its graduated heat settings and standard 220V single-phase power, it minimizes energy consumption while maintaining optimal performance. Options like powered height-adjustable stands and emergency lift stations increase operational versatility, ensuring seamless adaptation to high-speed, continuous operations.

Benefits

  • Ensures consistent packaging integrity with precise, uniform shrinkage.
  • Integrates seamlessly into high-speed production lines for increased efficiency.
  • Versatile temperature range enhances adaptability across multiple product types.
  • Minimizes operational costs with efficient energy use and simple maintenance.
  • Customizable height and mounting options support varied production environments.

General


Applications
Pill bottles,Jars,Tamper evident bands,Ketchup bottles,Food containers,Mouthwash bottles,Safety sleeves
End products
Sauce bottles,Pharmaceutical bottles,Spice jars,Flavored syrup bottles,Baby food jars,Nutritional supplement containers,Pasta sauce containers,Dietary supplement packaging,Condiment jars,Medicated mouthwash bottles
Steps before
Filling,Capping,Sleeving,Conveying
Steps after
Labeling,Packaging,Storing,Distribution
Input ingredients
safety sleeves,tamper evident bands,pill bottles,food containers,jars,ketchup bottles,mouthwash bottles,plastic safety seals
Output ingredients
shrink-wrapped containers,sealed bottles,tamper evident packaged products
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Heat range
125 to 290 degrees Fahrenheit
Power requirement
220 VAC / 20 amp
Material
Stainless steel
Dimensions
Height
Weight
Approx. 40 lbs (36 kg)
Heating process
Tapered heating
Control
Individual level heat controls

Operating Characteristics


Working Mechanism
Tapered heating process
Automation level
Manual and PLC
Installation method
Conveyor mount / Free-standing
Heat Range
125 to 290 degrees Fahrenheit
Power Supply
220v single phase
Control Type
Large easy to use controls
Temperature Adjustment
Graduated heat settings

Material Compatibility


Corrosive resistance (e.g. acids)
High
Cleanability
Easy to clean
Biological compatibility
Food grade
Abrasion resistance
Good
Heat resistance
Stable up to 290°F

Product type Characteristics


Container type
Pill bottles / food containers / jars / katsup bottles / mouthwash bottles

Physical Characteristics


Machine footprint
12" height x 24" length x 8" width
Construction material
Stainless Steel
Control panel type
Large easy to use controls
Power supply
220v single phase
Weight
Approximately 40 lbs. (36 kg)
Discharge method
Mounted to conveyor or free-standing
Heat range
125 to 290 degrees Fahrenheit

Custom Options


Control Panel Type
Large easy to use controls
Heat Directors
Available
Integration with Conveyor
Mountable
Stand Type
Powered height adjustable stand
Shrouds
Pre-heat shrouds for extended shaping
