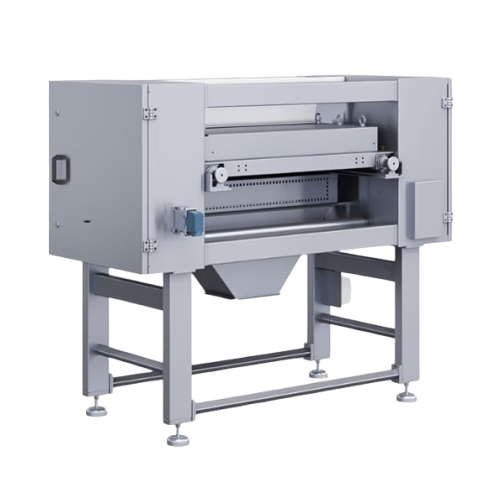

Tagliatelle cutting system for pasta production

Enhance your pasta production with efficient, high-speed cutting systems designed to deliver consistent tagliatelle, fettuccine, and more, ensuring precise processing and seamless integration into your existing production line.

Cuts and Forms Fresh Pasta Strips

The TLT – Tagliatelle Cutter from GEA Group is engineered for precision cutting and nest formation of tagliatelle, fettuccine, and similar pasta types in food processing lines. The system uses a series of cutting groups and rotating shear units to achieve precise longitudinal and transversal cuts. Suitable for fresh pasta, snacks, and breakfast cereals, it seamlessly integrates into continuous production lines, handling sheet widths from 300 to 1200 mm at speeds up to 20 m/min. Powered by an inverter-controlled gearmotor, the system ensures synchronized operations. Constructed with stainless steel, the TLT facilitates easy cleaning and maintenance. Optional features like automatic shape change and nest formation systems enhance versatility. With a robust design and efficient operation, it supports customization to meet various production specifications.

Benefits

  • Enhances production efficiency with continuous, high-speed cutting operations.
  • Reduces labor costs through automatic shape change capability.
  • Improves product consistency with precise longitudinal and transversal cutting.
  • Facilitates quick and hygienic cleaning due to stainless steel construction.
  • Expands production versatility with optional nest formation features.

General


Applications
Breakfast cereals,Fresh pasta,Snacks
End products
Fettuccine,Lasagna sheets,Pappardelle,Tagliatelle,Ravioli filling pasta strips
Steps before
Mixing,Sheet formation,Kneading
Steps after
Nest formation,Packaging,Drying
Input ingredients
fresh pasta sheets,dough,tagliatelle sheets
Output ingredients
tagliatelle,cut pasta,nests of tagliatelle
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Automation
PLC-controlled
Sheet width
300–1200 mm
Cutting width
1.2–40 mm
Sheet speed arrival
1–20 m/min

Operating Characteristics


Working mechanism
Rotating shear with counter-roll
Automation level
Automatic format change
Integration with PLC
Yes
Speed control
Inverter controlled
Batch vs. continuous operation
Continuous
Cleanability
Stainless steel structure for easy washing
Optional features
Automatic shape change,nest formation system

Material Compatibility


Stainless Steel Compatibility
Yes
Corrosive resistance (e.g. acids)
High
Cleanability
Easy to wash due to stainless steel structure
Biological compatibility
Suitable for food processing

Physical Characteristics


Sheet width
300 – 1200 mm
Cutting groups capacity
Room for 3,optional 4 or 5 cutting groups
Cutting width
1.2 – 40 mm
Sheet speed arrival
1 – 20 m/min
Material structure
Stainless steel
Control type
Inverter-controlled

Custom Options


Automatic shape change
Yes
System for nest formation
Hopper with forming tubes
Adjustable cutting groups
3 standard,options for 4 or 5
Sheet width options
300 – 1200 mm
Stainless steel structure
Yes
