Tablet hardness tester for pharmaceutical quality control

Ensure precise tablet hardness measurement to enhance pharmaceutical quality control and consistency in product dosing.

Measures Tablet Hardness, Diameter, and Thickness

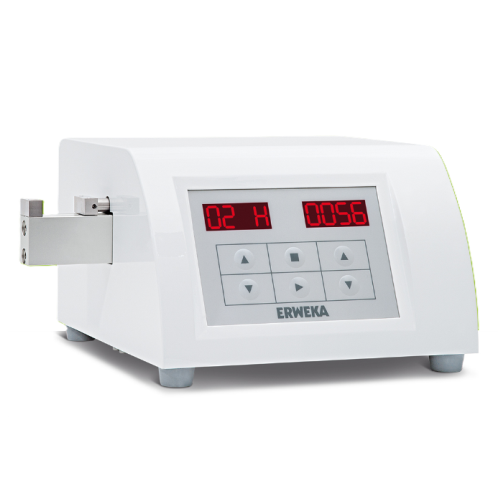

The TBH 125 Series from ERWEKA offers a comprehensive solution for testing tablet hardness in laboratory and R&D environments. This device provides dual-mode operation with constant speed and force, facilitating accurate measurements of hardness, diameter, and thickness. Supporting up to three parameters simultaneously, it is especially beneficial for pharmaceutical manufacturers and quality control labs focusing on products like paracetamol and calcium supplements. The TBH 125 features a robust design with an easy-to-use keypad interface and USB interfaces for seamless data documentation and firmware updates. Calibration is straightforward, either statically with weight stones or dynamically via AutoCal 2.0, ensuring compliance with USP, EP, and JP standards. Compact yet versatile, it fits neatly into manual bench-top operations, enhancing efficiency without sacrificing precision.

Benefits

  • Ensures consistent product quality with precise measurement of tablet parameters.
  • Streamlines quality control processes with easy-to-use interface and quick data output.
  • Minimizes operational errors through dual-mode testing and dynamic calibration options.
  • Simplifies data handling and compliance documentation via USB connectivity.
  • Enhances laboratory efficiency and safety with compact, bench-top design.

General


Applications
Supplements,Pharmaceuticals,Pharmaceutical tablets,Tablets
End products
Ibuprofen tablets,Multivitamin tablets,Vitamin c tablets,Calcium supplements,Paracetamol tablets
Steps before
Mixing,Granulating,Pelletisation,Coating,Polishing
Steps after
Packing,Quality Inspection,Sterilization,Filling,Dosing,Tablet Pressing
Input ingredients
Output ingredients
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Hardness Testing Range
10 to 300 Newton
Sample Diameter
Up to 28 mm
USB Interfaces
USB-A for printing,USB-B for firmware updates
Compliance
100% USP/EP/JP
Calibration Method
Static with weight stones,Dynamic with AutoCal 2.0
Measuring Units
Newton,Strong Cobb,Kilopond

Operating Characteristics


Automation level
Manual
Calibration method
Static/Dynamic with AutoCal 2.0
Hardness measurement mode
Constant speed/constant force
Breaking speed/force
Adjustable
Measuring range
10 to 300 Newton
Calibration print-out
Included
Operation interface
Symbol keypad

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


USP compliance
100 % USP/EP/JP compliant
EP compliance
100 % USP/EP/JP compliant
JP compliance
100 % USP/EP/JP compliant

Physical Characteristics


Compact footprint
Small device
Control panel type
Symbol keypad
Machine footprint
Robust design
Display type
Bright LED displays

Custom Options


Control panel type
Symbol keypad
Integration possibilities
USB-A printer interface,USB-B firmware updates
Calibration method
Static with weight stones or dynamic with AutoCal 2.0
Measuring mode settings
Breaking speed/force,sensitivity,time/date
