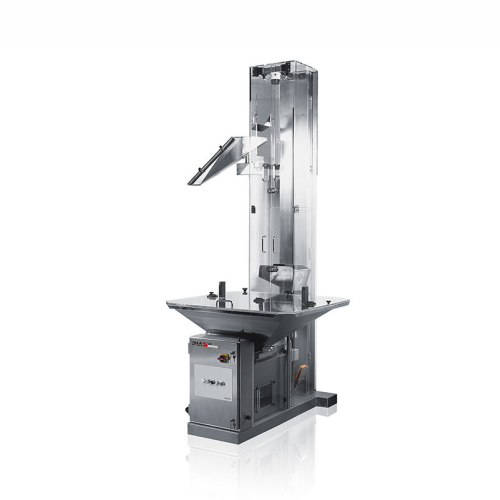

Tablet elevator for pharmaceutical applications

Ideal for efficient transport and elevation of delicate pharmaceutical tablets, this system minimizes handling damage while integrating seamlessly into continuous production lines to optimize throughput.

Elevates and Transports Tablets Efficiently

The SWIFTLIFT Tablet Elevator from IMA Swiftpack is engineered for precise and efficient transport of pharmaceutical tablets and supplements. This equipment stands out with its stainless steel construction, complying with GMP standards for high hygienic performance. It uses a vibratory feed system to elevate products gently from a floor-mounted hopper to packaging machinery, ensuring minimal product damage. Designed for pharmaceutical manufacturers, it excels in processing applications involving aspirin, vitamin C chewables, and probiotic capsules. Its 100-liter hopper and pneumatic bucket lift facilitate continuous operation with automatic responsiveness to production line signals. The SWIFTLIFT’s energy-efficient design is complemented by its easy-to-dismantle structure, allowing tool-free cleaning. Its standard tipping height of 1965 mm and customizable configurations make it versatile for various production lines.

Benefits

  • Ensures gentle handling, minimizing damage to delicate tablets and capsules.
  • Reduces operational costs with energy-efficient vibratory feed and pneumatic lift systems.
  • Facilitates quick cleaning and maintenance without the need for tools, enhancing production uptime.
  • Offers flexibility with customizable tipping heights and hopper sizes for varied production needs.
  • Maintains product integrity with GMP-compliant stainless steel construction.

General


Applications
Supplements,Vitamins,Pharmaceutical tablets
End products
Multivitamin gummies,Vitamin c chewables,Vitamin d tablets,Probiotic capsules,Fish oil supplements,Iron supplements,Herbal supplements,Calcium tablets,Omega-3 capsules,Aspirin tablets
Steps before
Tablet Feeding,Material Sorting
Steps after
Tablet Counting,Blister Packing
Input ingredients
tablet,product from floor mounted hopper
Output ingredients
tablet to counter,tablet to blister packing machine
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Product Hopper Capacity
100 litre
Hopper Size Options
Larger sizes available
Tipping Height
1965 mm
Construction Material
Stainless steel
Automation
Auto level detection
Bucket Lift Mechanism
Pneumatic
Vibratory Feed System
With chip sieve and dust extraction
Envelope
Fully enclosed product covers
Energy Efficiency
Reduced to minimum

Operating Characteristics


Working Mechanism
Vibratory feed system
Batch vs. Continuous Operation
Continuous
Cleaning Method
Tool-less dismantling
Energy Efficiency
Minimized energy consumption
Tipping Action
Gentle tipping action
Signal Responsiveness
Unit responds to external signal

Material Compatibility


Cleanability
Fully dismantlable stainless steel construction
Corrosive resistance (e.g. acids)
Stainless steel
Abrasion resistance
Stainless steel construction
Biological compatibility
GMP compliant design

Physical Characteristics


Machine footprint
1,490 mm x 1,037 mm
Height
2,384 mm
Product hopper size
100 liters
Tipping height
Standard 1965 mm (other heights available)
Material construction
Stainless steel
Discharge method
Single elevator bucket with pneumatic lift

Custom Options


Material of Construction
Stainless Steel
Cleaning Ease
Tool-Free Dismantling
Product Hopper Size
100 liters,Larger Sizes Available
Tipping Height
Standard 1965 mm,Other Heights Available
Integration Signals
Responds to External Signal
