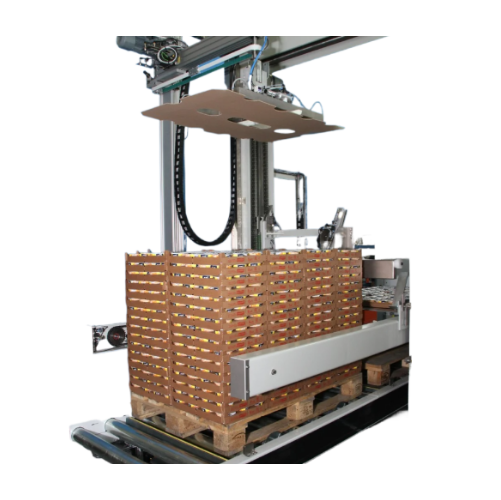

Sweep and gantry robot palletiser
Optimize your packaging line efficiency with a versatile solution capable of seamlessly integrating palletizing, packing, and transferring processes, addressing diverse packaging needs from food trays to pharmaceutical cases.
Palletises and Transfers Diverse Packaged Goods
The 740 Series from Trepko offers a modular solution for both semi and fully automatic operations, seamlessly integrating into existing factory layouts for optimal palletising and transferring tasks. This equipment features both sweep and gantry robot palletisers, efficiently handling cases, trays, and cartons up to 25 kg in weight. Designed for diverse applications in the food, beverage, logistics, and packaging industries, it enables collation, packing, and transferring with precision. Its PLC control system and motor-driven loading ensure high-speed performance, with capacities reaching up to three layers per minute. The gantry robot is adaptable with various lifting tools, such as vacuum suction cups and clamps, meeting different product handling needs. For ease of operation, it supports high or low loading heights and can handle various pallet sizes, making it a versatile addition to your manufacturing facilities or distribution centers.
Benefits
- Maximizes operational flexibility with modular design for easy integration into existing layouts.
- Enhances efficiency with motor-driven movements and PLC-controlled precision.
- Accommodates diverse product types, reducing the need for multiple palletising systems.
- Improves workflow with high-speed capacity, supporting up to 12 cycles per minute.
- Minimizes labor intervention with semi or fully automatic options, optimizing labor costs.
- Applications
- Trays,Cases,Shrink wrapped trays,Cartons
- End products
- Packaged goods,Consumer goods cartons,Shrink-wrapped beverage packs,Electronic product packages,Pharmaceutical cases,Food trays,Beverage cartons
- Steps before
- Sorting,Conveying,Packaging
- Steps after
- Conveying,Shipping,Storage
- Input ingredients
- cases,trays,cartons,shrink wrapped trays
- Output ingredients
- palletized cases,palletized trays,palletized cartons
- Market info
- Speed
- up to 3 layers per minute
- Capacity
- up to 12 cycles per minute
- Control System
- PLC / S7-300 Siemens PLC
- Electrical Connection
- 4l 5/400 V,50Hz,3 phase
- Maximum Loading Height
- 2400mm incl. pallet
- Maximum Item Weight
- typically 25kg
- Air Consumption
- at 6 Bar up to 350 Nl/min
- Loading Height Including Pallet
- up to 2100mm with vacuum head
- Pallet Sizes
- all common sizes
- Automation level
- Manual / Semi-Automatic / Fully Automatic
- Loading height
- High / Low
- Palletizing method
- Sweep / Gantry Robot
- Adaptability
- Modular design
- Material handling tools
- Vacuum suction cups / Grip / Clamp / Lifting plates
- Cycle speed
- Up to 3 layers per minute (Sweep) / Up to 12 cycles per minute (Gantry)
- Motor-driven movements
- Loading table movements
- Pallet handling
- Automatic
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Products handled
- Cases,trays,cartons etc.
- Product size
- up to 400 mm high
- Loading height
- High or low level
- Discharge method
- Row by Row Transfer
- Control system
- PLC / Siemens S7-300
- Automation level
- Semi or fully automatic
- Lifting tool options
- Vacuum suction cups / grip / clamp / lifting plates
- Loading height
- High or low level
- Pallet handling
- Automatic
- Integration capability
- Connect to existing conveyors
