Sugar dissolving system for industrial applications

Efficiently dissolve sugar and low-viscosity blends to achieve perfectly homogenized mixtures, ensuring consistency and quality in your beverage production process.

Dissolves and Mixes Low Viscosity Blends

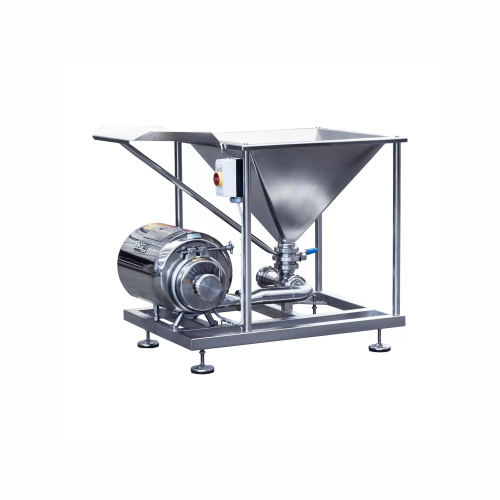

The DR Sugar Dissolving System from Inox-Fer Srl is engineered to efficiently dissolve and mix sugar and low viscosity blends for the food and beverage industry. Utilizing the principle of hydrodynamic paradox, a centrifugal pump ensures powerful, homogeneous mixing by creating a double Venturi effect to draw sugar into the liquid. This system is ideal for producing sugar solutions essential in carbonated beverages, juices, and flavored waters. With a processing capacity reaching up to 2,600 kg/hr, it integrates seamlessly into production lines with options for pasteurization and recirculation. The system is constructed with AISI 316L surfaces for excellent corrosion resistance and hygiene. Automation features include an automatic valve for powder suction and recirculation, and optional auger-fed powder loading. Designed for easy mobility and maintenance, it features a CIP system and can be customized with lump breakers and fluidizers for optimal performance.

Benefits

  • Enhances product consistency with powerful, homogeneous mixing.
  • Increases operational efficiency by processing up to 2,600 kg/hr.
  • Minimizes maintenance downtime with integrated CIP system.
  • Ensures product purity with corrosion-resistant AISI 316L construction.
  • Facilitates seamless production line integration with automated powder handling options.

General


Applications
Low viscosity blends,Food industry,Sugar solutions,Juices,Soft drinks
End products
Carbonated beverages,Lemonade,Low-viscosity emulsions,Non-dairy beverages,Sugar syrup,Sports drinks,Herbal infusions,Orange juice concentrate,Iced tea drinks,Flavored water
Steps before
Purification,Grinding
Steps after
Pasteurisation,Storage,Further treatment,Packing
Input ingredients
sugar,dry ingredient,powders
Output ingredients
sugar solution,homogeneous mixture,dissolved sugar
Market info
Inox-Fer is known for manufacturing customized stainless steel tanks and processing equipment, primarily for the food, beverage, and pharmaceutical industries, with a reputation for high-quality engineering and tailored solutions in industrial applications.

Technical Specifications


Dissolving speed
1200 kg/hr,1500 kg/hr,2600 kg/hr
Maximum back pressure
0.5 Bar during dissolution
Power
2.2 kW,4 kW,5.5 kW
Vessel Volume
300 to 900 litres,600 to 1900 litres,900 to 3000 litres
Dimensions (mm)
600×1000 H950,800×1200 H950,1000×800 H900
Weight
84 Kg,95 Kg,110 Kg
Product Viscosity
100 CPS,150 CPS

Operating Characteristics


Working mechanism
Hydrodynamic paradox
Integrated steps
Sugar dissolution and recirculation
Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 316L

Physical Characteristics


Discharge method
Transfer via centrifugal pump
Compact footprint
Yes,mounted on 4 wheels (2 fixed,2 swivel)
Control panel type
Automatic

Custom Options


Compact footprint
Removable bag holder by the hopper
Mobility
Mounted on 4 wheels (2 fixed,2 swivel)
