String cheese cutter for continuous production

Enhance your cheese production line with precise, adjustable length cutting, catering to various cheese formats via automated high-capacity processing.

Cuts and Cools String Cheese Precisely

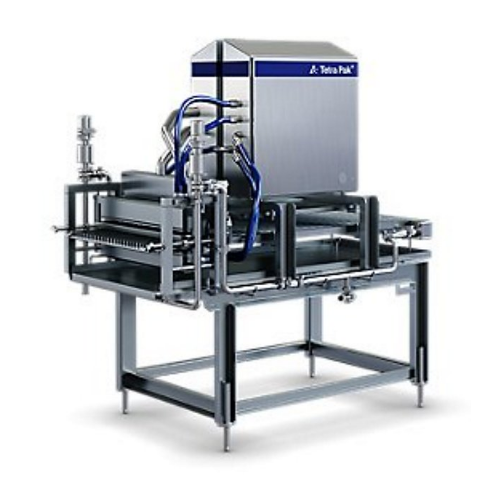

The Tetra Pak® String Cheese Cutter AC is a crucial component for cheese manufacturers focused on producing high-quality string cheese products. Designed to seamlessly integrate into continuous cheese production lines, it efficiently handles string cheese, mozzarella, cheddar, and other pasta filata varieties. This equipment operates using a laned cutting table with brine diffusers and fiber optic sensors, ensuring precise length adjustments and consistent product quality. With a capacity of 680 kg/h, it supports high-throughput operations, making it ideal for large-scale production facilities. The machine features 24 individual cooling lanes, each with controlled brine flow for optimal temperature maintenance. Automated via PLC controls, it offers easy operation and ensures minimal downtime with its easy disassembly and low maintenance design. Constructed with an open channel frame design, it promotes superior hygiene standards and effortlessly integrates into existing production lines, enhancing both efficiency and product consistency.

Benefits

  • Enhances production efficiency with continuous high-capacity cutting.
  • Reduces labor involvement through easy-to-operate PLC-controlled systems.
  • Maintains product quality with precise length adjustment and consistent cooling.
  • Supports flexible production with adjustable string length and multiple diameter capabilities.
  • Promotes high hygiene standards with an open channel frame design.

General


Applications
Pasta filata cheese,Dairy products,String cheese
End products
Pizza cheese shreds,Mozzarella string cheese,String cheese sticks,Low-moisture part-skim mozzarella logs,Provolone pasta filata,Cheddar string cheese ropes
Steps before
Cooked and stretched pasta filata cheese preparation,Extrusion through forming head
Steps after
Brine bath,Packaging
Input ingredients
extruded cheese ropes,pasta filata cheese
Output ingredients
string cheese,cut cheese ropes,processed cheese
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
680 kg/hour (1500 lbs/hour)
Automation
PLC-controlled
Cutting lanes
24 individual lanes
Sensor Type
Fiber optic sensors
String Length Adjustment
Manual Sensor Head Adjustment

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Continuous
Cleaning method
Easy to disassemble and clean
Changeover time
Quick adjustments
Energy efficiency
Low maintenance cost

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Cheese type
String cheese

Physical Characteristics


Machine Footprint
Compact design
Number of Lanes
24 individual cooling lanes
Flow Control
Flow valves for brine distribution
Control Panel
PLC with on/off switch and E-stop
Height Adjustment
Adjustable table height for rope thickness control
Frame Design
Open Channel Frame Design

Custom Options


Control panel type
PLC with on/off switch,E-stop and reset button
Adjustable height
Table height adjustable under extruder head
