Stationary belt press for fruit juice extraction
Achieve optimal juice yield from fruits and vegetables through precise control of pressing parameters, ensuring maximum extraction efficiency while maintaining high product quality.
Extracts Juice from Fruits and Vegetables

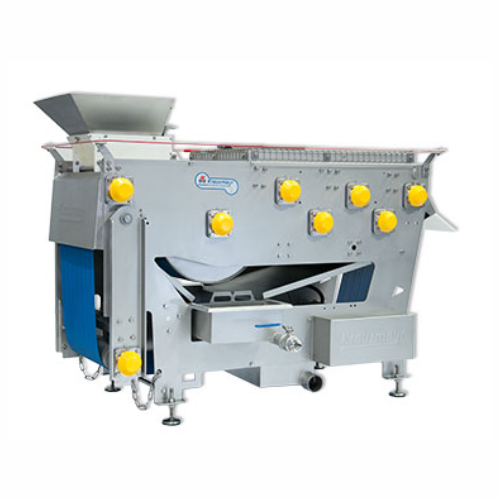

The Stationary Double Belt Press from Kreuzmayr Maschinenbau GmbH stands out in juice extraction with its robust double belt system and stainless steel build ensuring high durability and easy cleaning. This equipment gently processes fruits and vegetables through a series of meticulously aligned rollers, optimizing juice yield up to 80% and handling capacities up to 15,000 kg per hour. It’s ideal for producing a variety of juices and purees such as apple, orange, carrot, and more, integrating seamlessly into existing processing lines with adjustable speed and press force settings. This system is pneumatically regulated, enhancing efficiency and juice quality while the integrated high-pressure belt cleaning ensures hygiene. The machine’s design allows for easy operation and maintenance, meeting stringent food safety standards.
Benefits
- Enhances juice yield by up to 80% with efficient pressing mechanics.
- Minimizes maintenance with automatic belt tension and cleaning systems.
- Boosts processing efficiency with continuous, high-speed operation.
- Reduces labor requirements through simple, adjustable controls.
- Ensures hygienic standards with stainless steel construction and integrated cleaning.
- Applications
- Vegetable juice,Fruit juice,Fruit processing,Vegetable processing
- End products
- Apple juice,Tomato puree,Celery juice,Orange juice,Grape juice,Beetroot juice,Carrot juice,Mixed vegetable juice,Cucumber juice,Pear puree
- Steps before
- Washing,Grinding,Crushing,Destoning
- Steps after
- Juice Extraction,Sterilization,Pasteurization,Filling,Packaging
- Input ingredients
- fruits,vegetables,mash
- Output ingredients
- juice,pressed mash
- Market info
- Kreuzmayr is known for manufacturing high-quality, industrial juicing and pressing equipment. They specialize in engineered-to-order solutions, offering expertise in processing fruits and vegetables, with a reputation for reliability and innovation in the food and beverage industry.
- Hourly output
- up to 15000 kg
- Harvest efficiency
- up to 80%
- Belt width
- 338 mm - 1500 mm
- Electrical connection
- 230/16/0.8 V/Amp/kW to 400/16/5.4 V/Amp/kW
- Pneumatic connection
- max. 8 BAR
- Weight
- 480 kg - 4000 kg
- Dimensions
- 1940x1140x1275 mm to 3730x2520x2690 mm
- Belt cleaning system
- High-pressure and brush cleaning
- Press rollers
- 3 to 15
- Press speed
- Infinitely variable
- Material construction
- Stainless steel
- Pneumatic belt regulation
- Automatic
- Pneumatic belt tension
- Automatic
- Press force
- Continuously adjustable
- Mash dosing
- Continuously adjustable
- Control panel location
- Left or right side
- Assembly readiness
- Production-ready upon setup
- Working mechanism
- Press rollers and sieve belt
- Automation level
- Automatic regulation
- CIP/SIP
- High-pressure belt cleaning
- Cleaning method
- Belt cleaning system with optional brush cleaning
- Batch vs. continuous operation
- Continuous
- Operation panel location
- Left or right side
- Corrosive resistance (e.g. acids)
- High,stainless steel construction
- Cleanability
- High-pressure belt cleaning and optional brush cleaning
- Density/particle size
- Adaptable for various fruit and vegetable mash densities
- Biological compatibility
- Food-grade stainless steel and plastics
- Machine footprint
- 1940x1140x1275 mm (KEB 400),2220x1240x1420 mm (KEB 500),2610x1450x1642 mm (KEB 750/1000),3940x1390x2160 mm (K2B 750),3730x2020x2690 mm (K2B 1000),3730x2270x2690 mm (K2B 1250),3730x2520x2690 mm (K2B 1500)
- Weight
- 480 kg (KEB 400),650 kg (KEB 500),1200 kg (KEB 750/1000),3000 kg (K2B 1000),3500 kg (K2B 1250),4000 kg (K2B 1500)
- Belt width
- 338 mm (KEB 400),500 mm (KEB 500),750 mm (KEB 750/1000),750 mm (K2B 750),1000 mm (K2B 1000),1250 mm (K2B 1250),1500 mm (K2B 1500)
- Construction material
- Stainless Steel
- Press roller material
- Stainless Steel
- Press roller quantity
- 3 (KEB 400),4 (KEB 500/750/1000),7 (K2B 750),15 (K2B 1000/1250/1500)
- Control panel location
- Left or Right side
- Operation panel position
- As per customer requirements
- Belt speed adjustment
- Continuously adjustable
- Press force adjustment
- Continuously adjustable
