Spray dryers for ceramics and pharma products

Achieve consistent powder quality for heat-sensitive and sticky products with flexible drying and agglomeration options, perfect for adapting to changing production demands while maintaining product integrity.

Produces Free-Flowing Powders from Liquids

The VERSATILE-SD® and VERSATILE FSD® Spray Dryer Systems from GEA offer exceptional flexibility for producing consistent, high-quality powders across various industries. These systems incorporate a modular design that allows for customization based on specific plant capacities and product requirements, making them suitable for applications in advanced ceramics, polymers, catalysts, pharmaceuticals, and food ingredients. The VSD system utilizes adjustable air temperatures to maintain product integrity, especially in heat-sensitive processes, while offering multiple atomizing and exhaust configurations for optimal production efficiency. Available in sizes ranging from 6.3 to 80, the VSD handles water evaporation rates from 10 to 320 kg/h, with smaller scale options for pilot projects and research. The VFSD system adds a multi-stage drying feature with an integrated fluid bed to produce agglomerated, free-flowing powders ideal for sticky, hygroscopic products. Featuring compact footprints, these systems are easy to operate and clean, with options for CIP, explosion protection, and electrical air heating enhancements. They support seamless integration into existing production lines, ensuring compliance with stringent safety standards and facilitating efficient batch changes and maintenance routines.

Benefits

  • Enhances product quality with customizable drying configurations for consistent output.
  • Optimizes operational flexibility with modular design suitable for various industries.
  • Minimizes energy consumption through efficient air temperature control systems.
  • Facilitates quick product changeover and cleaning with user-friendly interfaces.
  • Ensures safety and compliance with available explosion protection and CIP options.

General


Applications
Polymers,Advanced ceramics,Pharma products,Heat-sensitive products,Food ingredients,Hygroscopic products,Herbal extracts,Flavors,Catalysts,Sticky products
End products
Calcium chloride,Active pharmaceutical ingredients,Garlic powder,Zeolite catalysts,Vanilla extract,Dried fruit powder,Ceramic powders,Green tea extract,Polyethylene glycol,Maltodextrin
Steps before
Emulsification,Homogenization,Pre-mixing,Filtering
Steps after
Agglomeration,Cooling,Packing,Powder Coating
Input ingredients
advanced ceramics,polymers,catalysts,pharma products,food ingredients,flavors,herbal extracts,sticky products,hygroscopic products,heat-sensitive products
Output ingredients
high-quality powders,consistent powder quality,coarse agglomerated powders,free-flowing powders,dustless powders
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Size Range
VSD size 6.3 to VSD size 80
Water Evaporation Capacity
10–320 kg/h
Air Temperature Control
Adjustable for consistent powder quality
Exhaust Configurations
Cyclone,bag filter,cyclone plus cyclone,cyclone plus bag filter,cyclone plus scrubber
Plant Configurations
Optional CIP,electrical air heat booster
Explosion Protection Systems
Various available

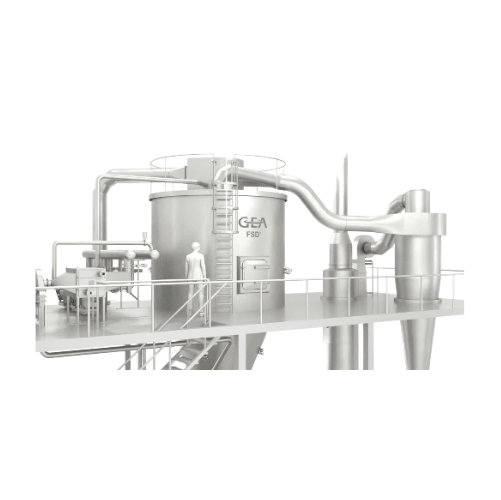

VFSD Size Range
FSD size 4.0 to FSD size 80
VFSD Available Sizes
6 sizes (5 to 265 kg/h water evaporation)
Multi-Stage Dryer
Integrated fluid bed under the drying chamber
Agglomeration Capability
Produces coarse,free-flowing,agglomerated powders
Footprint
Compact design

Operating Characteristics


Working mechanism
Spray drying with modular design
Batch vs. continuous operation
Batch
Integrated steps
Multi-stage drying,integrated fluid bed
CIP/SIP
Optional CIP
Changeover time
Easy to switch between batches
Automation level
Manual / PLC
Air incorporation control
Adjustable air temperature
Cleaning method
CIP / manual
Energy efficiency
Adjustable for consistent powder quality
Footprint
Compact design for VFSD

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Advanced ceramics,polymers,catalysts,pharma products,food ingredients
Powder production
High-quality,free-flowing,agglomerated

Physical Characteristics


Machine footprint
Compact,smaller than dryers with external fluid beds
Modular design
Available
Available sizes
VERSATILE-SD® size 6.3 to size 80
Available sizes
VFSD size 4.0 to size 80
Atomizing configurations
Multiple options available
Exhaust configurations
Multiple options available

Custom Options


Atomizing Configuration
Multiple options available
Exhaust Configuration
Multiple options available
Plant Size
From VSD size 6.3 to 80
Drying Chamber Configuration
Single,Double or Triple Chamber Fluid Bed
Modular Design
Customizable plant capacities and product requirements
Explosion Protection Systems
Various options available
Cleaning Method
Optional CIP
Electrical Air Heat Booster
Optional
Configuration Testing
Available at GEA Test Center
