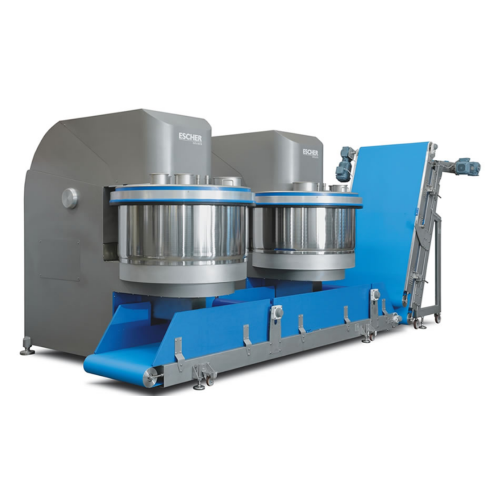

Spiral mixers with bottom discharge system

Ensure consistent dough quality while optimizing space and efficiency with a mixing system that integrates directly into production lines, offering streamlined discharge and resting capabilities.

Mixes and Discharges Dough Efficiently

The ESCHER MD/MD-W Line spiral and dual tool bottom discharge mixers are engineered to enhance dough production for industrial bakeries and large-scale food companies. With an innovative bottom discharge system, these mixers efficiently handle diverse dough types, from sourdough bread to Neapolitan pizza crust. The MD Line features consistent rpm maintenance through robust bowl transmission, ensuring premium dough quality while minimizing maintenance compared to traditional systems. Optional Vario Drive System (VDS) allows precise control over mixing speeds for both the tool and bowl. Designed with hygiene and functionality in mind, the system includes a dough resting extension for optimal integration into both batch and continuous production lines. Built for energy efficiency and reduced maintenance, the mixers require less downtime, translating into increased throughput. Available in configurations adaptable to your production needs, the ESCHER MD/MD-W Line is a reliable solution for meeting the rigorous demands of modern bakery operations.

Benefits

  • Enhances production efficiency with seamless dough discharge directly onto conveyors or into bowls.
  • Reduces maintenance costs with durable transmission design, delivering consistent performance over time.
  • Improves dough quality by maintaining precise mixing speeds and controlled resting times.
  • Increases operational flexibility with configurable speeds via the optional Vario Drive System.
  • Ensures easy cleaning and hygiene with prioritization of accessible design elements.

General


Applications
Pizza dough,Tortilla dough,Industrial bakery products,Bagel dough,Confectionery doughs,Bread dough,Pastry dough,Artisan bread
End products
Baguettes,Sourdough bread,Neapolitan pizza crust,New york-style bagels,Croissants,Pre-packaged sandwich bread,Danish pastries,Soft tortilla wraps
Steps before
Ingredient Preparation,Weighing,Pre-mixing
Steps after
Dough Resting,Conveying,Dough Processing,Baking,Packing
Input ingredients
ingredients,dough
Output ingredients
dough,finished dough,prepared dough
Market info
Escher Mixers (Middleby) is known for manufacturing high-quality, engineered-to-order mixing equipment, specializing in spiral and planetary mixers, primarily for the bakery industry. They are reputed for innovative solutions and reliability in industrial dough mixing.

Technical Specifications


Mixing Capacity
160,240,400,500 kg
Discharge Method
Bottom discharge system
Mixing System Type
Spiral or dual tool
Hygiene,Cleanability
Easy cleaning of bowl closing cap
Transmission Type
Constant rpm transmission
Optional Accessories
Vario Drive System (VDS)
Speed Regulation
Adjustable mixing tool and bowl speed
Dough Handling
Direct feeding onto conveyor or movable bowl

Operating Characteristics


Working mechanism
Spiral or dual tool mixers
Loading/discharge system
Bottom discharge onto conveyor or moveable bowl
Automation level
Manual / PLC (with optional Vario Drive System)
Cleaning method
Hygienic design for easy cleaning
Batch vs. continuous operation
Batch

Physical Characteristics


Compact footprint
Yes
Discharge method
Bottom discharge system
Mixing tool type
Spiral or dual tool
Machine configuration
Series assembly

Custom Options


Discharge method
Bottom discharge system
Control panel type
HMI with Vario Drive System (VDS)
Integration possibilities
Into production lines
Tool type
Spiral or dual tool
