Spiral conveyor for logistics and packaging

Ensure seamless elevation and transportation of diverse products with this versatile spiral conveyor, designed for continuous high-speed operations, reducing machinery footprints and increasing production efficiency across various packaging and logistical environments.

Elevates, Accumulates, and Conveys Diverse Packaging Solutions

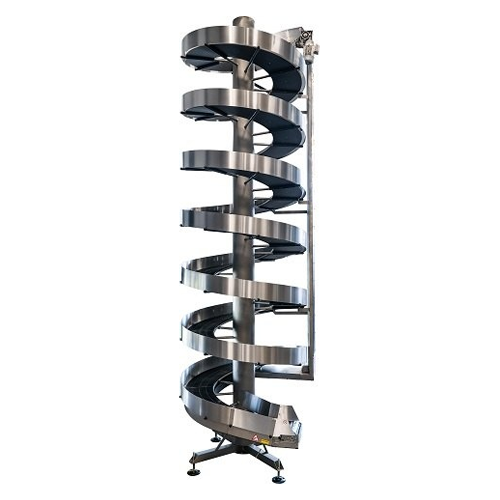

The SpiralVeyor SV-Series from AmbaFlex is a versatile spiral conveyor system designed for continuous and high-speed elevating, accumulating, and conveying across various industries, including logistics, packaging, bottling, and printing. Its unique lateral roller system allows it to handle unstable products with ease, eliminating the need for additional controls or sensors. This system efficiently processes goods such as cartons, containers, trays, and bottle packs, with a capacity to support loads up to 50 kg/m and speeds up to 60 m/min. The SpiralVeyor SV-Series integrates seamlessly into production lines, offering virtually unlimited elevation capabilities and customizable configurations, including single or multi-belt options. Built for durability, the system is available in materials suitable for dry use, wipe down, and economic or total wash-down scenarios, making it an ideal solution for operations requiring frequent cleaning and maintenance. With a proven track record of thousands of installations worldwide, AmbaFlex provides bespoke configurations tailored to your specific operational needs, ensuring efficient space utilization and improved production throughput.

Benefits

  • Optimizes floor space by efficiently utilizing vertical elevation.
  • Ensures smooth product handling without additional controls, reducing maintenance needs.
  • Supports high-speed operations, maximizing throughput in dynamic production environments.
  • Versatile material configurations accommodate various cleaning and sanitation requirements.
  • Customizable design fits specific production demands, enhancing operational flexibility.

General


Applications
Bags,Containers,Cartons,Print,Packaging,Trays,Bottling,Totes,Crates,Bottlepacks,Logistics
End products
Poly bags,Pet bottles,Tote bins,Milk cartons,Newspaper stacks,Shrink-wrapped pallets,Magazine bundles,Cardboard boxes,Shipping boxes,Publication volumes,Pouches,Aluminum cans,Beverage multipacks,Document trays,Storage bins,Cereal boxes,Corrugated trays,Plastic totes,Poly mailers,Plastic crates,Glass bottles
Steps before
Secondary packaging,Product handling,Product sorting
Steps after
Accumulation,Packing,Warehousing
Input ingredients
cartons,containers,trays,bottlepacks,bags,crates,totes
Output ingredients
cartons,containers,trays,bottlepacks,bags,crates,totes
Market info
AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.

Technical Specifications


Belt width range
300-600 mm | 12-24"
Multi-belt
1-3 parallel belts
Load range per belt
up to 50 kg/m | 34 lb/ft
Speed range
standard up to 60 m/min | 200 fpm
Elevation
virtually unlimited,commonly per drive system 15 m | 50 ft
Belt length
up to per drive system 60 m | 200 ft
Footprint for SV 300-900
2400 mm / 4' - 1"
Footprint for SV 400-1300
1740 mm / 5' - 9"
Footprint for SV 400-1800
2240 mm / 7' - 4"
Footprint for SV 500-1300
1840 mm / 6'
Footprint for SV 600-1600
2240 mm / 7' - 4"
Footprint for SV 600-1800
2440 mm / 8'
Material use
Dry use,Wipe down (R),Wash down economic (CR),Wash down total (RS)

Operating Characteristics


Working mechanism
Lateral roller system
Automation level
Continuous motion
Batch vs. continuous operation
Continuous
Cleaning method
Wipe down,Wash down economic,Wash down total

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Belt width range
300-600 mm | 12-24"
Multi-belt configuration
1-3 parallel belts
Load capacity per belt
Up to 50 kg/m | 34 lb/ft
Speed range
Standard up to 60 m/min | 200 fpm
Elevation height per drive system
Virtually unlimited,commonly up to 15 m | 50 ft
Belt length per drive system
Up to 60 m | 200 ft
Footprint
Various footprints based on model

Custom Options


Belt width range
300-600 mm | 12-24"
Multi-belt options
1-3 parallel belts
Load range per belt
up to 50 kg/m | 34 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation
Virtually unlimited
Belt length
up to 60 m | 200 ft per drive system
Footprint options
From 1240 mm / 4' - 1" to 2940 mm / 9' - 8"
Material use
Dry,Wipe down,Wash down economic,Wash down total
SpiralVeyor Configurations
Single Belt,Multi Belt
SpiralVeyor Types
X-configuration,ML-configuration,J-configuration
SpiralVeyor Series Programs
SlimLine,Nested,Flexibility-programme
