Spiral conveyor for individual bottles and cans

Streamline your production line’s space and layout with a compact conveyor solution, optimizing mass flow handling of bottles and cans while seamlessly integrating with existing systems to elevate, accumulate, and convey at high speeds.

Conveys and Elevates Mass Flow Products

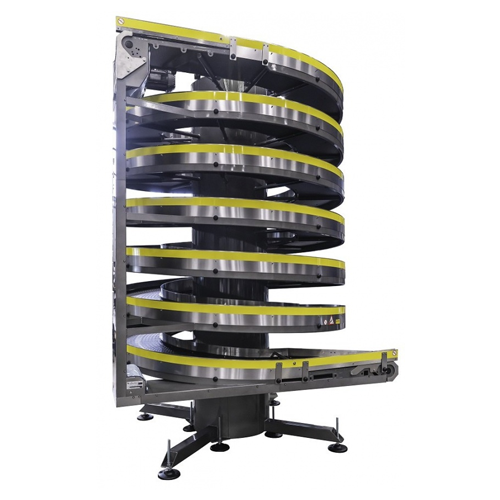

The SpiralVeyor SVm-Series from AmbaFlex is designed for efficient mass flow conveying and elevation tasks in logistics, packaging, bottling, and print industries. Utilizing a patented multi-track belt system, it supports the seamless movement of bottles, cans, jars, and tins, optimizing space with its compact spiral design. With throughput speeds up to 60 m/min and virtually unlimited elevation potential, it integrates easily into continuous, high-speed operations. The robust design includes options for various material finishes, facilitating dry, wipe-down, and washdown use, ensuring adaptability to diverse operational environments. It’s configurable with one to five parallel tracks, accommodating different load ranges, and simplifying customization to fit specific production lines.

Benefits

  • Saves valuable floor space with compact spiral design.
  • Enhances operational efficiency with seamless integration into high-speed production lines.
  • Reduces maintenance costs with robust, low-friction belt technology.
  • Adapts to various operational needs with customizable track configurations.
  • Minimizes line downtime with easy cleaning and material adaptability.

General


Applications
Jars,Bottles,Tins,Cans
End products
Olive oil tins,Coffee tins,Soda cans,Wine bottles,Beer cans,Jam jars,Soft drink bottles,Pickle jars
Steps before
Filling,Labeling,Cap Sealing
Steps after
Sorting,Packaging,Palletizing
Input ingredients
bottles,cans,jars,tins
Output ingredients
bottles,cans,jars,tins
Market info
AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.

Technical Specifications


Belt width range
200-500 mm | 8-20"
Multi track belt
1-5 parallel tracks
Load range
up to 100 kg/m | 67 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation
virtually unlimited,commonly per drive system 6 m | 20 ft
Belt length
up to per drive system 60 m | 200 ft
Footprint
1540 mm / 5' - 1" to 3440 mm / 11' - 3"
Material
Dry use,Wipe down,Wash down economic,Wash down total

Operating Characteristics


Working Mechanism
Spiral conveyor
Automation Level
PLC-controlled
Batch vs. Continuous Operation
Continuous
Cleaning Method
Manual / Wipe Down / Wash Down
Changeover Time
Minimal due to simple design
Energy Efficiency
Optimized through compact design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Bottle / Can / Jar / Tin
Load range per unit length
up to 100 kg/m | 67 lb/ft
Material
Dry use / Wipe down / Wash down

Physical Characteristics


Footprint
1540 mm / 5' - 1" to 3440 mm / 11' - 3"
Belt Width
200 mm / 8" to 500 mm / 20"
Multi track belt
1-5 parallel tracks
Load range
up to 100 kg/m | 67 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation
virtually unlimited,commonly per drive system 6 m | 20 ft
Belt length
up to per drive system 60 m | 200 ft
Material suitability
Dry use,Wipe down (R),Wash down economic (CR),Wash down total (RS)

Custom Options


Belt width range
200-500 mm | 8-20"
Multi track belt
1-5 parallel tracks
Load range
up to 100 kg/m | 67 lb/ft
Speed range
up to 60 m/min | 200 fpm
Elevation
virtually unlimited,commonly per drive system 6 m | 20 ft
Belt length
up to per drive system 60 m | 200 ft
Footprint
Ranges from 1540 mm / 5' - 1" to 3440 mm / 11' - 3"
Material Use
Dry use,Wipe down (R),Wash down economic (CR),Wash down total (RS)
Portal-configuration
Create access throughout your facility
Lane Configuration
Dual,Triple,Quad Lane
Flexibility Programme
Lifecycle Flexibility Programme
