Solventless cannabis extraction system

Optimize solventless extraction of cannabis and hemp with precise agitation and filtration, yielding superior concentrates and extracts efficiently in a compact, scalable system.

Extracts and Processes Cannabis and Hemp Concentrates

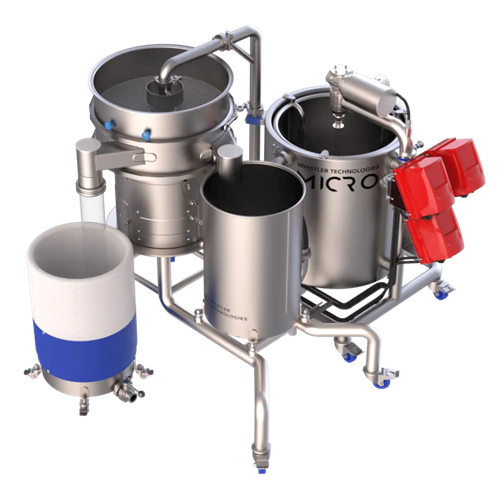

The WT-MICRO from Whistler Technologies offers a compact, solventless extraction solution for the cannabis and hemp industry. Specializing in transforming biomass into premium concentrates like hashish and CBD-A concentrate, it features a 150L agitation tank with a patented double-torus agitation pattern. This design ensures efficient processing of up to 80kg of fresh frozen biomass per shift, operated by a single person. Its stainless steel construction provides robust corrosion resistance, while customizable cGMP or EU GMP compliance meets rigorous industry standards. With an easy-to-clean setup and scalable configurations, the WT-MICRO is tailored for seamless integration and future expansion in processing operations.

Benefits

  • Optimizes single-operator efficiency, reducing labor needs.
  • Enhances product quality with precise, solventless extraction.
  • Offers modular design for scalable production capacity.
  • Meets cGMP or EU GMP standards for regulatory compliance.
  • Minimizes operational footprint with compact system design.

General


Applications
Nutraceuticals,Cannabis,Hemp,Essential oils
End products
Terpene-rich extracts,Hemp extract,Cannabis concentrate,Hemp rosin,Thc-a concentrate,Rosin oil,Hashish,Cbd-a concentrate,Live rosin,Full-spectrum hemp extract
Steps before
Biomass Preparation,Grinding,Purification,Drying
Steps after
Sterilization,Packing,Terpene Extraction
Input ingredients
fresh frozen biomass,dry biomass,fresh frozen material,dry material
Output ingredients
hash,cannabis extract,hemp extract
Market info
Root Sciences is known for providing high-quality extraction, distillation, and other processing equipment for the cannabis and hemp industries, offering solutions for creating purified concentrates and extracts, emphasizing efficiency and innovation.

Technical Specifications


Capacity
Up to 13 lb dry material
Capacity
Up to 44 lb of fresh frozen
Runtime
1-2 hours,single operator
Yield
Fresh frozen output is 2-7%
Yield
Dry material output is 10-30%
Electrical
Single phase,30A line fuse,230 V
Footprint
5′ x 6.1′ x 4.4′
Agitation Tank Capacity
150L
Batch Capacity (Fresh Frozen)
Up to 80kg in a 10-hour shift

Operating Characteristics


Working mechanism
Batch processing
Integrated steps
Agitation,filtration
Automation level
Manual / PLC controlled
Cleaning method
Manual
CIP/SIP capability
CIP compatible design
Batch vs continuous operation
Batch

Material Compatibility


Abrasion resistance
High
Biological compatibility
Food-grade certified
Cleanability
Easy to clean,stainless steel
Corrosive resistance (e.g. acids)
Stainless steel 316
Watertight Components
IP rated connectors


CGMP Compliance
Customizable
EU GMP Compliance
Customizable

Physical Characteristics


Tank Shape
Double-torus agitation pattern
Construction Material
Stainless steel 316 for wetted components,stainless steel 304 for non-wetted components
Discharge Method
False bottom filter

Custom Options


Customization Option
Modular configuration for future expansion
Compliance
Customizable cGMP or EU GMP compliance
Agitation Tank
150L with double-torus agitation pattern
False Bottom Filter
Included
