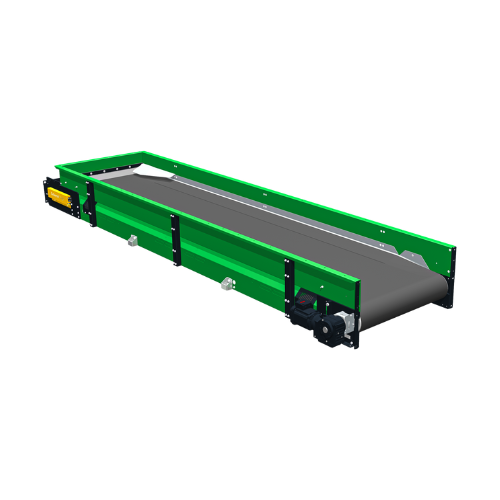

Sliding belt conveyor for sorting light, voluminous materials

Efficiently sort and convey light, voluminous materials with precise control and minimal noise, ensuring optimal throughput and streamlined operations in your waste management or recycling processes.

Sorts and Conveys Waste Materials Efficiently

The HBGT Sliding Belt Conveyor from Bollegraaf is a modular solution tailored for waste management facilities tackling various waste streams. This conveyor stands out due to its flat, enclosed construction that efficiently manages light, voluminous materials. Utilizing a motor-driven drum with SEW motor reductor, it ensures steady and quiet operations, setting the standard for reliable sorting processes. Perfectly suited for applications in recycling and municipal waste processing, it caters to end-products like recycled plastic pellets and sorted construction aggregates.

The conveyor is capable of continuous high-speed operations, accommodating the demands of recycling facilities and waste processors. Integration into a production line is seamless, supported by its ability to be positioned in virtually any layout due to its modular frame. Noteworthy are the side screens in variable heights and optional oil and grease-resistant belts enhancing versatility. It’s engineered for easy maintenance, with grease-filled bearings for 10,000 operational hours and a friction-optimized drive drum for better grip, minimizing downtime and optimizing throughput efficiency.

Benefits

  • Optimizes sorting precision for diverse waste materials, improving material recovery rates.
  • Enhances operational efficiency with quiet, low-maintenance design, reducing downtime.
  • Increases flexibility with customizable module lengths and optional belt features.
  • Seamlessly integrates into existing production lines, easing installation challenges.
  • Lowers operational costs by offering a competitively priced solution with robust performance.

General


Applications
Paper and cardboard waste,Construction and demolition,Single stream waste,Plastic waste,Waste-to-energy solutions,Municipal solid waste
End products
Energy pellets,Recycled paper pulp,Processed municipal solid waste (rdf/srf),Recycled plastic pellets,Sorted construction aggregates,Mixed recyclables (sorted and baled)
Steps before
Feeding,Pre-sorting
Steps after
Sorting,Ballistic separation,Density separation,Processing,Packing
Input ingredients
light materials,voluminous materials,plastic waste,paper and cardboard waste,municipal solid waste (MSW),construction and demolition (C,D) waste
Output ingredients
sorted materials,processed waste,recycled materials
Market info
Bollegraaf is known for manufacturing advanced recycling equipment and systems. With a strong reputation for innovation and quality, they specialize in engineered-to-order solutions, optimizing waste processing efficiency and sustainability for diverse industries globally.

Technical Specifications


Construction material
5mm sheet steel
Modular construction
Motor and tension sections with length modules
Belt material
Rubber and canvas
Belt direction
Reversible (two-direction)
Belt motion
Sliding over steel plate
Belt support distance
2500 mm between support rollers
Belt tension
Adjustable with tension roller
Drive system
SEW motor reductor
Noise level
Very quiet (no transportation chains)
Maintenance required
Little (grease-filled bearings)
Cleat options
Different heights available
Wear and tear resistance
High (resistant to oil and grease)
Frame reinforcement
Ribbed for strength

Operating Characteristics


Working mechanism
Sliding belt over steel plate
Integrated steps
Sorting belt functionality
Noise level
Quiet operation
Direction flexibility
Bidirectional movement
Maintenance frequency
Low
Automation level
Motorized with SEW motor reductor
Belt tension adjustment
Manual with tension bearings and nuts

Material Compatibility


Abrasion Resistance
Yes
Oil and Grease Resistance
Optional
Wear and Tear Resistance
Yes
Voluminous Materials Transport
Yes

Physical Characteristics


Frame Construction
Modular with motor and tension sections
Belt Material
Rubber and canvas
Support Rollers Distance
Up to 2500 mm apart
Tensioning System
Tension roller with tension bearings
Noise Level
Quiet
Direction of Movement
Optional two-direction movement
Control Mechanism
Adjusting nut on chain tighteners
Operation Design
Flat,enclosed construction
Belt Optional Features
Oil and grease resistance,cleats of different heights

Custom Options


Modular construction
Yes
Side screen height
Customizable
Cleat height
Customizable
Direction of movement
Two-directional
Belt material
Oil and grease resistant options available
