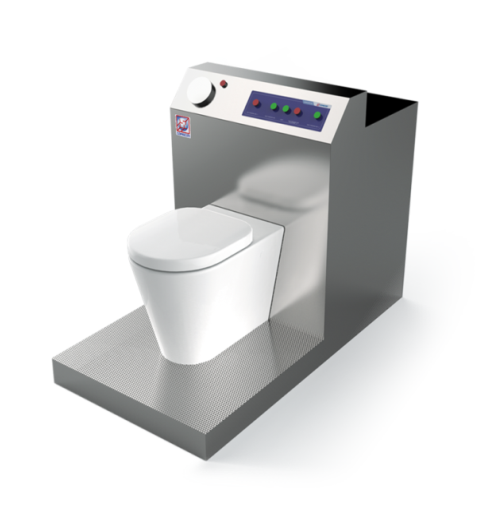

Shielded Wc for disposal of organic radioactive waste

Effectively manage and neutralize radioactive and organic waste with a shielded waste system designed to streamline decay and disposal processes, ensuring enhanced safety and compliance in nuclear medicine and radiopharmaceutical applications.

Processes and Safely Disposes Radioactive Waste

The WDL SERIES from Comecer is designed for the efficient and safe disposal of radioactive and organic waste, addressing the complex needs of nuclear medicine facilities and radiopharmacy departments. This shielded waste disposal system features dual reinforced fiberglass tanks that manage both solid and liquid radioactive waste through an integrated shredding and filtration process. The system autonomously cycles waste between tanks, optimizing decay time evaluation with a built-in timer and key-selector control for manual operation. Equipped with an active charcoal filter, it minimizes vapor emissions and odor, ensuring a clean working environment. Available models, including the WDL 300 and WDL 600, offer varying capacities and dimensions to fit specific operational needs, with easy sample extraction via front ball valves. Constructed with durable Acciaio INOX 304-Scotch Brite for longevity and reliability, it supports seamless integration into existing processes and meets stringent safety regulations.

Benefits

  • Enhances safety by effectively containing and processing radioactive waste.
  • Minimizes environmental impact with active charcoal filtration of emissions.
  • Reduces operational delays with continuous waste cycling and automated decay time evaluation.
  • Versatile capacity options to fit varying facility needs with models WDL 300 and WDL 600.
  • Simplifies maintenance and sampling with easy-access design and ball valves.

General


Applications
Organic waste,Radiopharmaceuticals,Radioactive waste,Diagnostic waste,Nuclear medicine
End products
Organic medical waste,Liquid radioactive waste,Solid radioactive waste,Radioactive diagnostic waste,Technetium waste
Steps before
Collection of radioactive liquid waste,Collection of solid radioactive waste
Steps after
Decay time evaluation,Radioactive waste disposal,Sample analysis via ball valves,Active charcoal filtration
Input ingredients
radioactive liquid waste,organic waste,Technetium,solid waste
Output ingredients
sewage,vapor,sampled sewage
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Number of tanks
2
Tank material
Plastic reinforced by fiberglass
Tank shielding
3mm Pb
Overall dimensions (WDL 300 Model)
690 x 1050 x 1750 mm
Overall dimensions (WDL 600 Model)
690 x 1450 x 1750 mm
Tanks dimensions
150 L each (WDL 300 Model),300 L each (WDL 600 Model)
Weight with empty tanks (WDL 300 Model)
240 kg
Weight with full tanks (WDL 300 Model)
540 kg
Weight with empty tanks (WDL 600 Model)
280 kg
Weight with full tanks (WDL 600 Model)
880 kg
External structure material
Acciaio INOX 304-Scotch Brite
WC Material
Porcelain
Decaying time evaluation
Timer-controlled
Waste treatment method
Shredder for solid waste
Filtration system
Active charcoal filter
Water discharge system
Push button

Operating Characteristics


Working mechanism
Shielded WC with shredder and tank system
Integrated steps
Collection,shredding,and decay evaluation
Batch vs. continuous operation
Batch (tank-based system)
Decay time control
Timer for decay evaluation
Sampling method
Ball valves for sampling
Vapor handling
Active charcoal filter
Tank switching system
Automatic deviation to second tank

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Overall dimensions
WDL 300
WDL 600
690 x 1450 x 1750 mm
Weight with empty tank
WDL 300
WDL 600
280 kg
Weight with full tank
WDL 300
WDL 600
880 kg
Tanks dimensions
WDL 300
WDL 600
300 L each
Number of tanks
2
Tank material
Plastic reinforced by fiberglass
Tank shielding (Pb)
3 mm
Material external structure
Acciaio INOX 304 - Scotch Brite
WC material
Porcelain

Custom Options


Control panel type
Key selector operation
Tank material
Plastic reinforced by fiberglass
Tank capacity
150-300 L each
Tank shielding
Lead (Pb) mm3
Shredder capability
Included for solid waste
Vapor elimination filter
Active charcoal filter
Sampling method
Ball valves
Material of external structure
Acciaio INOX 304-Scotch Brite
Discharge method
Push button clean water discharge
