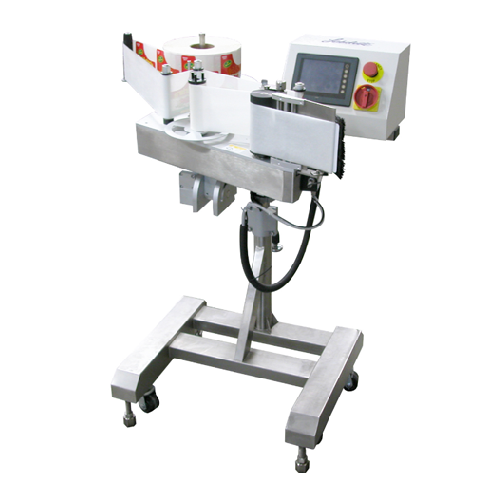

Semi-automatic pressure sensitive labeling system

Optimize your labeling efficiency with this versatile system designed to handle a range of container types and sizes, ensuring precise application on both flat and curved surfaces for consistent brand presentation.

Applies Pressure Sensitive Labels to Containers

The APS-004 Adjustable Label Head from Labelette is a versatile semi-automatic labeling solution designed for varied packaging needs across industries. Its standout feature is the height and angle adjustment capability, allowing for seamless transitions between side and top labeling applications, accommodating full face, cylindrical, and oblong containers. With Photo Eye sensors for precise label and container detection, it ensures dependable performance. Capable of dispensing labels up to 6 inches tall and up to 11.75 inches in length, the APS-004 supports a wide range of containers, including plastic, metal, fiber, and glass. It integrates effortlessly into existing production lines with its heavy-duty stainless steel frame and touch screen control system. Built for rigorous three-shift operations, it offers optional upgrades like hot stamp coders and container separators to enhance functionality. The APS-004 operates at speeds up to 160 containers per minute and offers electrical compatibility with both 110 VAC and 220 VAC systems.

Benefits

  • Enhances labeling versatility by accommodating diverse container shapes and sizes.
  • Minimizes setup time and errors with intuitive touch screen controls and sensor-based detection.
  • Increases labeling precision, reducing label waste and production costs.
  • Easily integrates with existing production infrastructure, simplifying expansion and upgrades.
  • Built to endure demanding operations, ensuring consistent performance across extended shifts.

General


Applications
Full face containers,Oblong containers,Glass containers,Plastic containers,Cylindrical containers,Metal containers,Fiber containers
End products
Glass jars,Metal tin cans,Glass wine bottles,Shampoo bottles,Fiber-based cosmetic jars,Beverage cans,Food storage jars,Aerosol spray cans,Cardboard tubes,Plastic spray bottles
Steps before
Filling,Sealing,Cleaning,Sorting,Conveying
Steps after
Inspection,Sealing,Packing,Capping,Shrink Wrapping
Input ingredients
plastic containers,metal containers,fiber containers,glass containers,labels
Output ingredients
labeled plastic containers,labeled metal containers,labeled fiber containers,labeled glass containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Labeling Speed
Up to 160 CPM
Label Size Length
0.5”-11.75” (1.25-29.75 cm)
Label Size Height
0.5” – 6” (1.9-15.25 cm)
Maximum Roll Diameter
13.5″
Dimensions Height
50-65” (127-165.1 cm)
Dimensions Length
40” (101.6 cm)
Dimensions Depth
24” (60.96 cm)
Weight
Approx. ~95 lbs. (43 kg)
Electrical
110 VAC – 10A,56/60 Hz (220VAC Optional)

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Quick and trouble free
CIP/SIP
Easy setup for new labels
Cleaning method
CIP / Manual
Label placement angle
0° to 90° range
Adjustability
Height and angle adjustable
Label size range
Up to 6" tall and 4" long

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Type
Plastic,Metal,Fiber,Glass
Container Configuration
Single side full face,cylindrical,oblong

Physical Characteristics


Machine footprint
Height
Weight
Approx. ~95 lbs. (43 kg)
Label size compatibility
Length
Labeling speed
Up to 160 CPM*
Frame material
Heavy Duty S.S. Frame
Adjustability
Fully height and angle adjustable,within a 90° range

Custom Options


Control panel type
Touch Screen Control System
Integration possibilities
Easy integration with existing line or conveyor
Adjustability
Fully height and angle adjustable
Conversion capability
Converts from side labeler to top labeler
