Screw press for mechanical oil extraction

Maximize protein extraction and oil yield with precision screw presses designed for continuous high-speed operation, ensuring optimal nutrient retention in your animal feed and plant protein processing line.

Removes Fat and Presses Oils

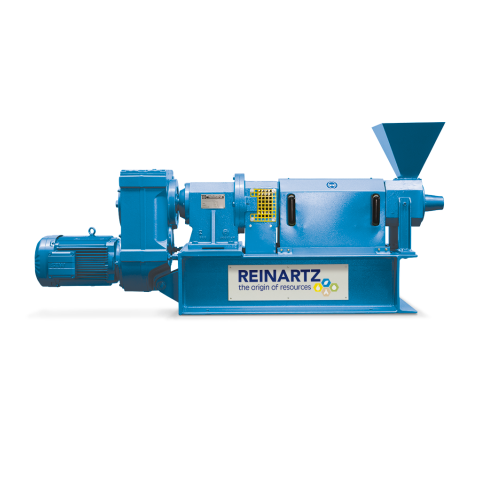

The TP series from Maschinenfabrik Reinartz includes robust screw presses designed for efficient fat removal and oil pressing. These presses employ a mechanical, continuous operation, ideal for processing various oilseeds, biomass, and plant proteins. Capable of handling semi-finished products, each press integrates a collection tank for expelling fats.

Applications encompass soybean meal production, rapeseed and cold-pressed oils, and protein-rich animal feeds. Offering multiple models like TP 04 to TP 90, throughput varies according to raw material, meeting diverse processing needs in food, animal feed, and agriculture industries.

Reinartz screw presses stand out due to their cold pressing capabilities, preserving valuable nutrients and proteins while reducing thermal degradation. These machines provide energy efficiency and compatibility with different processing environments, available in various configurations to match specific production line requirements.

Manufacturers benefit from lower operational costs and improved product quality, backed by Reinartz’s engineering support for customization, ensuring optimal integration, automated control, and reduced maintenance demands.

Benefits

  • Enhances product quality by preserving nutrients through low-temperature pressing.
  • Increases efficiency with seamless integration in continuous production frameworks.
  • Reduces operational costs with energy-efficient mechanical design.
  • Offers versatility across diverse applications, from oil extraction to animal feed production.
  • Minimizes maintenance with robust construction and easy-access components.

General


Applications
Animal feed,Vegetable oil,Rapeseed cake,Insect proteins,Oil cleaning,Soybean processing,Biomass,Plant proteins,Oil storage
End products
Pressed plant protein cakes,Insect protein flour,Refined vegetable oils,Biodiesel feedstock,Cold-pressed rapeseed oil,Soy protein concentrate,Cold-pressed soybean oil,Rapeseed meal,Soybean meal,Processed animal feed
Steps before
Processing with extruder,Processing with expander,Processing with toaster,Cold pressing of soya
Steps after
Press cake usage,Secondary pressing for animal feed,Packing
Input ingredients
raw soybeans,dried,press-ready,semi-finished products,rapeseed,soybean
Output ingredients
press cake,high-quality animal feed,expelled fat,rapeseed cake,rapeseed expeller
Market info
Reinartz is known for its expertise in designing and manufacturing industrial equipment, particularly in oilseed pressing and separation technologies, with a reputation for innovation and reliability in engineered-to-order solutions.

Technical Specifications


Length
1,800 mm - 6,000 mm
Width
500 mm - 1,500 mm
Height
800 mm - 2,300 mm
Net weight
400 kg - 21,500 kg
Connected load
4 kW - 90/110 kW
Press type
Screw press
Material processing
Mechanical removal of fat
Pressing method
Cold pressing
Output dependency
Raw material pressed

Operating Characteristics


Working mechanism
Screw press system
Integrated steps
Fat removal and collection
Batch vs. continuous operation
Batch
Automation level
Manual / PLC
Changeover time
Variable
Energy efficiency
High
Cleaning method
Manual

Material Compatibility


Biological compatibility
Suitable for animal feed production
Density/particle size
Processed agricultural products

Physical Characteristics


Machine Length
1,800 mm - 6,000 mm
Machine Width
500 mm - 1,500 mm
Machine Height
800 mm - 2,300 mm
Net Weight
400 kg - 21,500 kg
Footprint
Varies by model specifications
Connected Load
4 kW - 110 kW
Collection Tank
Integrated into base of press frame

Custom Options


Control panel type
PLC/Manual control
Integration possibilities
Modular configuration
Press type
Screw press
Cooling method
Ambient cooled
Material processed
Dry,press-ready,semi-finished products
