Screw finishers for citrus processing

Optimize your production line with screw finishers designed to efficiently separate liquids from solids, enhancing throughput and maintaining high-quality standards in juice and puree processing.

Efficiently Separates Liquids and Solids

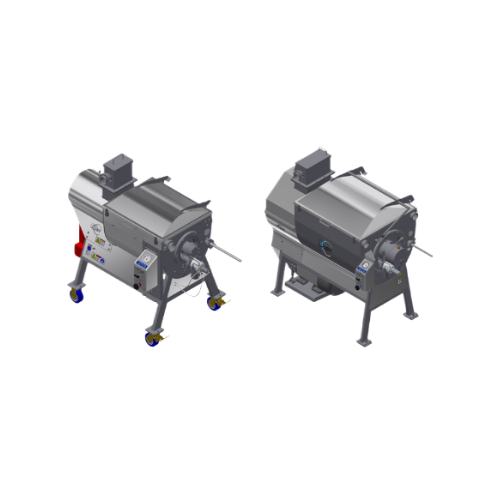

The UCF110 & UCF210 Screw Finishers from JBT are engineered to streamline the separation of liquids and solids in citrus, fruit, and vegetable processing. Utilizing a continuous screw mechanism, these finishers efficiently filter and separate materials, ideal for processing orange juice, tomato paste, and a range of fruit and vegetable products. With configurable speed and pressure options, they adapt to specific juice quality specifications, resulting in a higher yield. Designed for seamless integration into automated production lines, they feature PLC control for ease of operation and monitoring. These units incorporate an automated screen cleaning system and a pneumatically-actuated dual spray ring, minimizing downtime and maintenance efforts. Built with maximum sanitation in mind, they occupy reduced floor space, making them suitable for facilities prioritizing hygiene and efficiency. Available with stainless steel options, they are designed to resist corrosion, ensuring longevity and compliance with industry standards.

Benefits

  • Increases yield with minimal operator intervention through continuous processing.
  • Optimizes sanitation and hygiene protocols, ensuring food safety.
  • Minimizes floor space requirements, ideal for compact facilities.
  • Enhances maintenance efficiency with automated screen cleaning and easy access to key components.
  • Offers flexibility in processing different juice and oil specifications with adjustable speed and pressure options.

General


Applications
Beverages,Tomato processing,Fruits,Citrus processing,Nuts,Juices,Fruit and vegetable processing
End products
Lemonade,Vegetable puree,Apple juice,Mixed fruit and vegetable juice,Walnut oil,Orange juice,Almond milk,Carrot juice,Fruit concentrates,Tomato paste
Steps before
Grinding,Emulsification
Steps after
Sterilization,Packing,Pulp Packaging
Input ingredients
citrus,oil emulsion,pulp,fruit
Output ingredients
juice,soluble solids,core wash,pulp packaging,oil
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Process type
Continuous
Automation level
Pneumatically-actuated
Cleaning method
Automated screen cleaning
Efficiency
Highest yield in the industry
Pressure options
Several options available
Material separation
Liquid and solid by filtration
Screw type
Rotating screw
Operation intervention
Minimal from the operator
Floor space
Reduced floor space

Operating Characteristics


Working mechanism
Continuous screw with centrifugal force
Automation level
Minimal operator intervention
Batch vs. continuous operation
Inline Continuous
CIP/SIP
Automated screen cleaning
Cleaning method
Pneumatically-actuated dual spray ring system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact
Discharge method
Continuous screw
Control panel type
Automated with easy access

Custom Options


Screw type
Continuous
Screw speed options
Variable
Pressure options
Adjustable
Footprint
Compact
Automated screen cleaning
Yes
Easy access for maintenance
Valves and gauges
Spray ring system
Pneumatically-actuated dual
