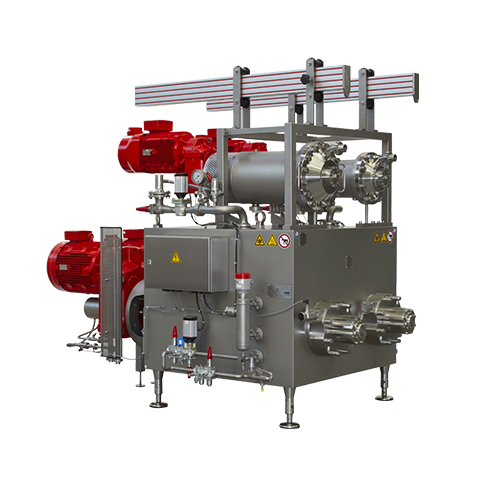

Scraped surface heat exchanger for high-viscous products

For processors of high-viscosity spreads, efficient heat transfer is crucial for achieving desired texture and consistency, whether cooling or heating during pasteurization and crystallization processes.

Processes High-Viscous Food Products Efficiently

The RONOTHOR RT from RONO is a sophisticated high-pressure scraped surface heat exchanger designed specifically for food processing applications requiring precise temperature management. Powered by an SEW Type FAF gear and up to 75 KW motor, this unit efficiently processes high-viscous products like margarine, butter, and shortening. Its modular design allows for integration of up to six units per frame, providing flexibility and scalability in your production line.

The RONOTHOR RT excels in heating, cooling, pasteurization, and crystallization, drastically enhancing the quality of spreadable margarine, bakery shortening, and similar products. With a focus on operational efficiency, the unit accommodates various cylinder sizes and scraper configurations to suit your production needs. The equipment supports a range of heating and cooling media, including freon, ammonia, and glycol, ensuring versatility.

Manufactured in Germany, the unit’s solid design includes a chrome-plated mild steel or optional stainless steel construction, defensively preparing it against corrosion. The RONOTHOR RT is equipped with an electronic level control and a BUS system for easy integration and operation monitoring. Maintaining the equipment is simplified with its hygienic design, and servicing is user-friendly with readily available spare parts and support.

Benefits

  • Maximizes product quality through precise temperature control of high-viscous spreads.
  • Enhances scalability with modular design supporting up to six units.
  • Reduces operational costs with energy-efficient motor and customizable scraper system.
  • Ensures longevity with corrosion-resistant materials and robust construction.
  • Simplifies maintenance with user-friendly design and readily available spare parts.

General


Applications
Shortening,Butter,Edible fats,Margarine
End products
Hydrogenated vegetable oil,Bakery shortening,Whipped butter spread,Spreadable margarine,Non-dairy cream spread
Steps before
Mixing,Grinding,Emulsification
Steps after
Cooling,Packing,Crystallization
Input ingredients
high-viscous products,spreads,margarine,shortening,edible fats
Output ingredients
pasteurized spreads,crystallized products,margarine,shortening,edible fats
Market info

Technical Specifications


Max. working pressure,product side
120 bar
Motor Power
up to 75 KW – IE3
Rotorspeed RPM
235 1/min,50 Hz
Ø Rotorshaft drive end
90 mm
Max. working pressure cooling side NH3 (R 717)
20 bar
Max. working pressure cooling side Freon (R 507)
22 bar
Heating/Cooling Media Compatibility
Freon,ammonia,glycol,cooling water,hot water,steam
Scraper rows
2 to 6 rows based on diameter and product
Cylinder sizes
Ø 180 mm,250 mm | Length 800 mm,1400 mm,2000 mm
Material evaporator
Mild steel / stainless steel as option
Product pipes
DN 50,heatable
Temperature control system
NH3 (R 717) ICM (suction) and ICF/ICM (injection)
Temperature control system
Freon (R 507) ICM (suction) and ICF/ICM (injection)

Operating Characteristics


Batch vs. continuous operation
Modular / Continuous
Automation level
Manual / Electronic level control
Cooling method
Freon / Ammonia / Glycol
Pressure range
75 bar / 120 bar
Scraper system
2 to 6 scraper rows
Modular design
Single / Twin / Quad

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
High-viscosity
Product Type
Margarine,Butter,Shortening,Edible fats
Temperature Sensitivity
Temperature profile control necessary

Physical Characteristics


Cooling Cylinder Coating
Special coating available

Custom Options


Modular Design
Up to six heating or cooling units
Scraper System
2 to 6 scraper rows,different forms,types,and materials
